2711-B6C5L1 | Allen-Bradley | PanelView 600 Standard Operator Terminal

Product Overview

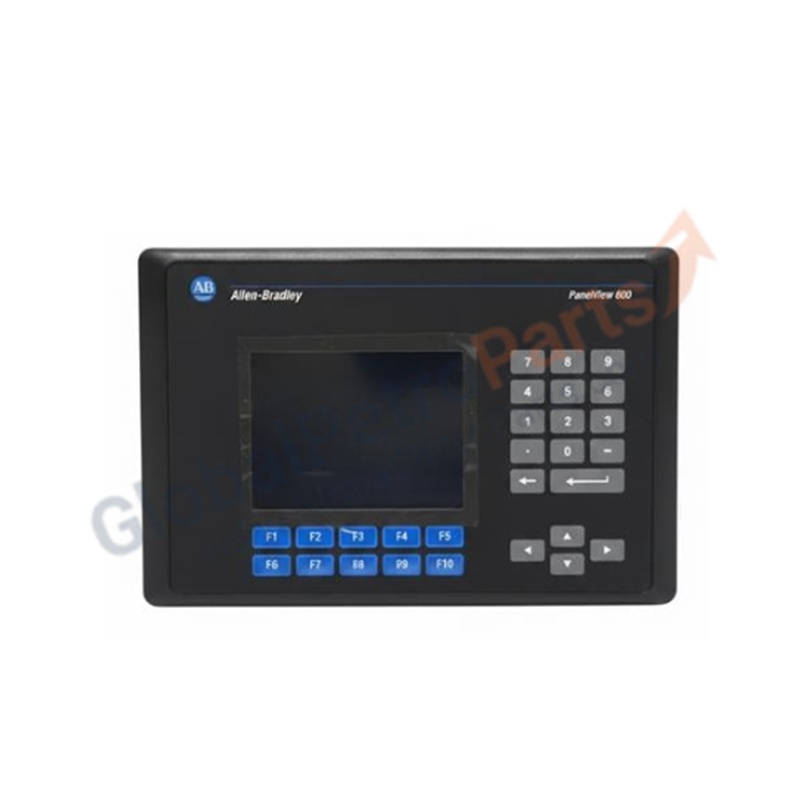

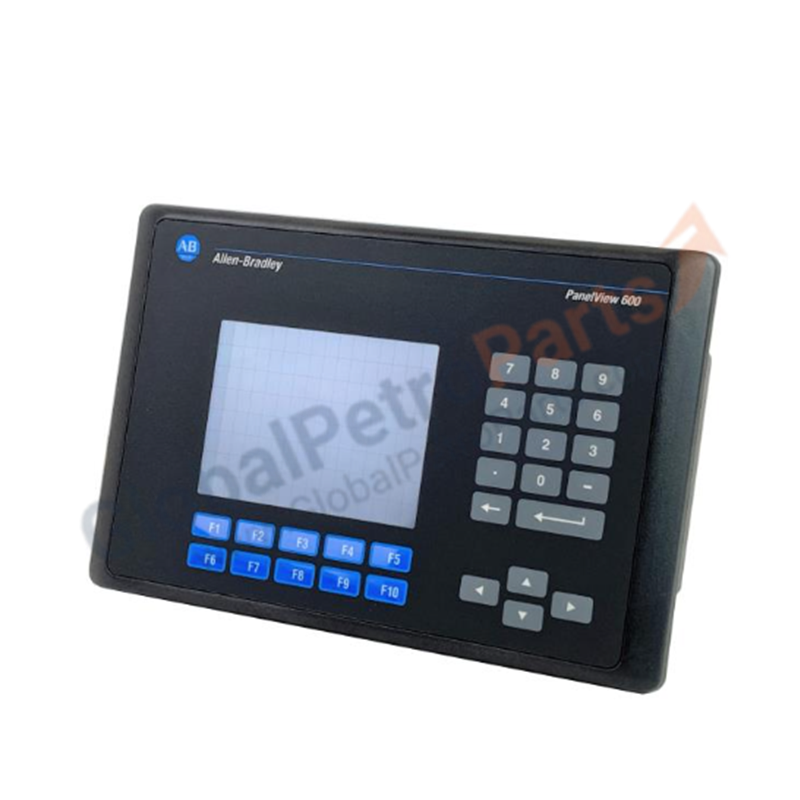

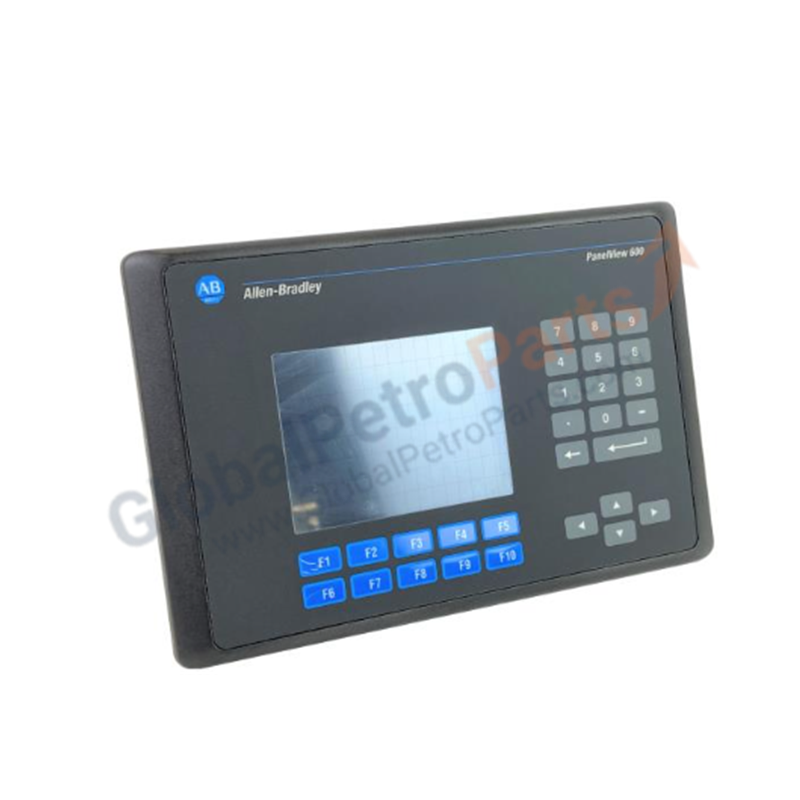

The Allen-Bradley 2711-B6C5L1 functions as a high-versatility operator interface within the PanelView 600 Standard series. This model stands out by offering a dual-input configuration, combining an analog resistive touchscreen with a 10-button tactile keypad (F1–F10). It features a 5-inch color active matrix TFT display that provides clear visualization of machine status and process variables. Integrated with an RS-232 port configured for DH-485 communication, this terminal enables seamless data exchange with SLC 500 and MicroLogix controllers. We supply this unit as 100% Brand New and Factory Original, providing a pristine replacement solution for legacy control systems.

Technical Specifications

The 2711-B6C5L1 utilizes industrial-grade components to maintain high-speed screen updates and reliable input registration:

Engineering Advantages

• Dual-Input Operational Flexibility: The combination of a touchscreen and a physical keypad solves a major industrial pain point. Operators can use the touchscreen for intuitive navigation while utilizing the tactile function keys for high-frequency or "blind" operations, even when wearing heavy industrial gloves.

• High-Contrast Color TFT Display: The active matrix TFT technology offers superior brightness and wider viewing angles compared to older passive-matrix displays. This ensures that operators can identify critical alarms and process trends from multiple positions around the machinery.

• Rugged Environmental Sealing: This terminal carries NEMA 4X and IP65 ratings for the front panel. It effectively resists dust, debris, and water ingress, allowing for reliable operation in harsh wash-down environments or factory floors with high levels of airborne contaminants.

• Simplified DC Power Integration: The module operates on a wide 18–32V DC range. This allows the HMI to share the same 24V DC power bus as the PLC and field sensors, eliminating the need for dedicated AC power drops or bulky transformers inside the control cabinet.

• Direct Legacy Migration: The 2711-B6C5L1 maintains exact mechanical and electrical compatibility with existing PanelView 600 installations. It allows for immediate "plug-and-play" replacement of failed units, utilizing original PanelBuilder32 application files to eliminate costly engineering hours.

FAQs

• Is this 2711-B6C5L1 unit 100% Brand New?

  Yes. We guarantee this HMI terminal arrives in 100% Brand New condition, contained in its original Allen-Bradley factory packaging. We do not provide refurbished or used surplus, ensuring the internal CCFL/LED backlight and touchscreen membrane provide their full engineered lifecycle.

• Can I use the RS-232 port for standard DF1 communication?

  No. This specific model features an RS-232 port internally hardware-configured for the DH-485 protocol. Ensure your controller port or communication network matches this protocol before installation.

• Does this terminal support external memory cards?

  Yes. The 2711-B6C5L1 supports the 2711-NM232 (or equivalent) memory card. Utilizing a memory card allows for easy project transfer and provides a backup for application data without requiring a computer connection on the factory floor.

• What are the COMM and FAULT indicators for?

  The green COMM LED illuminates when the HMI establishes active communication with the controller. The red FAULT LED indicates an internal hardware error or a firmware failure, allowing for rapid visual diagnostics during system troubleshooting.
