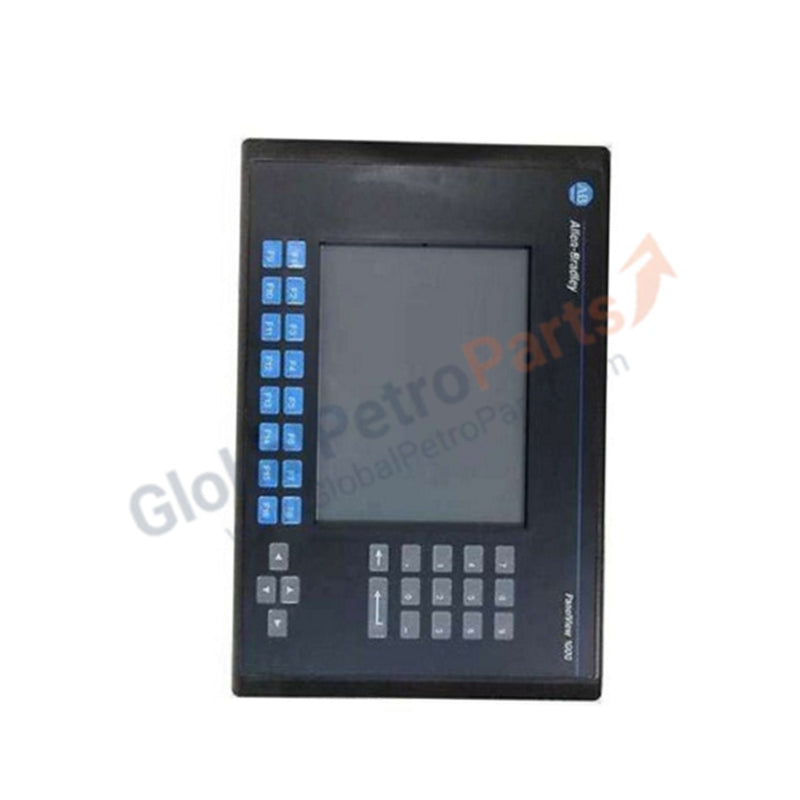

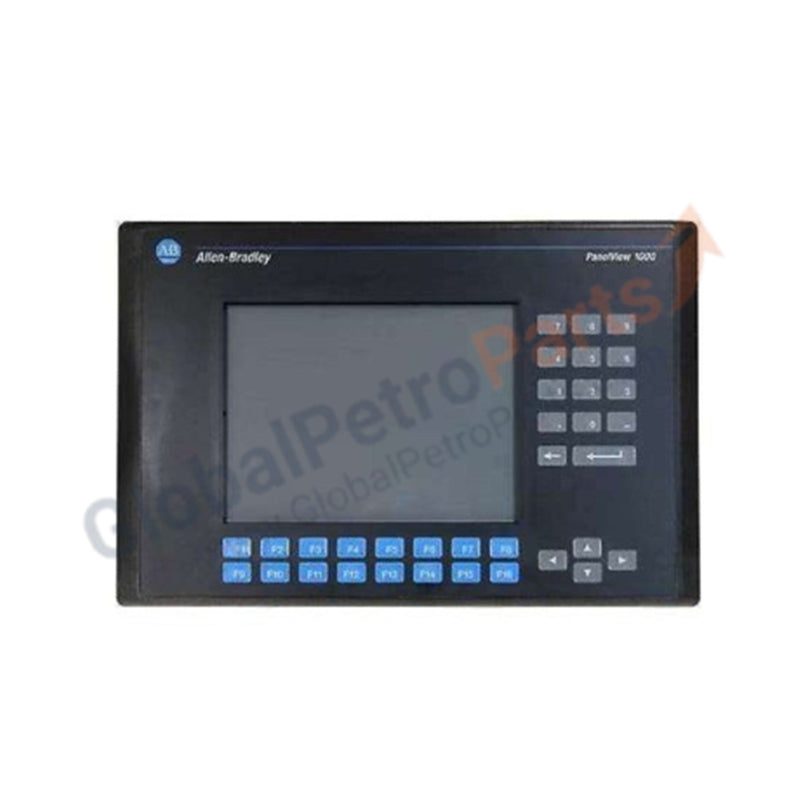

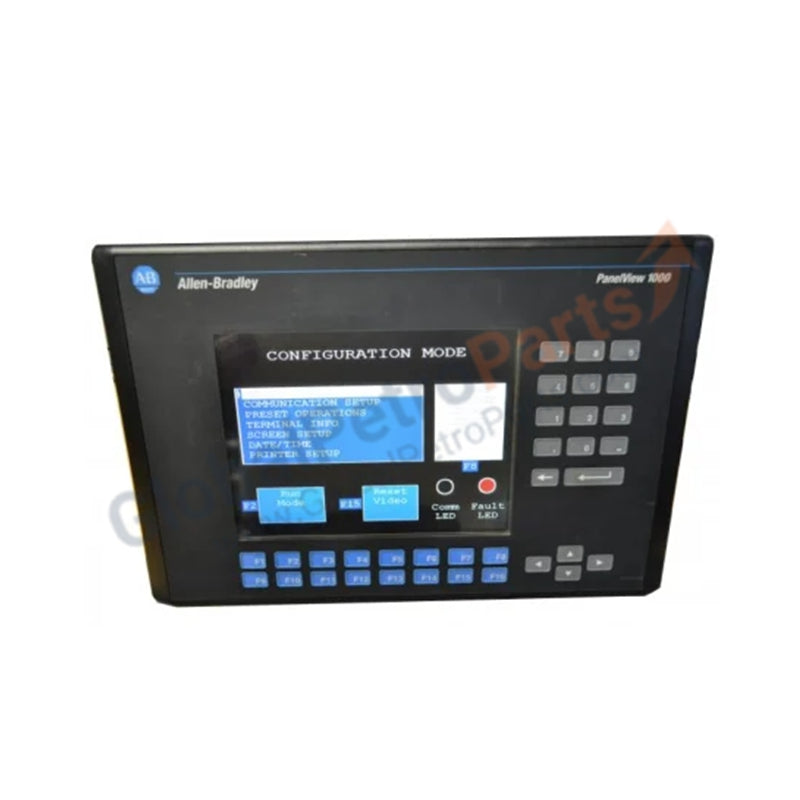

2711-K10G8 | Allen-Bradley | PanelView 1000 Standard Operator Terminal

The Allen-Bradley 2711-K10G8, also cataloged as the 2711-K10G8 Operator Interface, operates as a dedicated hardware component for human-machine interaction and process visualization within Data Highway Plus (DH+) industrial control networks.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks and Communication

The 2711-K10G8 integrates into industrial architectures primarily via the Data Highway Plus (DH+) protocol. Deterministic performance is contingent upon proper termination of the DH+ trunk line. The unit features an auxiliary RS-232 interface exclusively for printer output. Firmware management and application object deployment are facilitated through the integrated ATA memory card slot, which allows for the transfer of runtime files and terminal configurations without requiring an active network connection. Users must ensure that communication cable shielding is grounded at one end to prevent ground loops that interfere with DH+ token-passing integrity.

Frequently Asked Questions (FAQ)

Q: What are the restrictions regarding the ATA memory card?

A: The terminal supports standard ATA memory cards for storing application objects, bitmaps, and runtime files. Ensure the card is formatted according to the specific PanelView firmware requirements; hot-swapping the card during active write operations may lead to data corruption in the nonvolatile memory.

Q: Is the backlight field-replaceable?

A: Yes. The unit allows for backlight replacement. It is recommended to perform this maintenance in a clean environment to prevent dust ingress into the monochrome display assembly. The typical half-life of the installed backlight is 50,000 hours at 25 deg C.

Field Installation Guidelines

• Enclosure Requirements: The unit is rated for NEMA Type 12, 13, and 4X enclosures. Ensure the mounting surface is flat and free of debris to maintain the integrity of the gasket seal.

• Power Wiring: Connect to an 85-264 V AC power source. The power terminal block must be securely fastened. Use dedicated conduits for AC power cabling to prevent electromagnetic induction into signal lines.

• Grounding: A dedicated chassis ground connection must be established to mitigate transient voltage surges. Failure to properly bond the terminal to the equipment grounding bus may cause instability in the DH+ communication port.

• Mounting: Use the provided mounting hardware to ensure the bezel is compressed evenly against the enclosure panel. Tighten clips in an alternating cross-pattern to prevent warping of the display frame.
