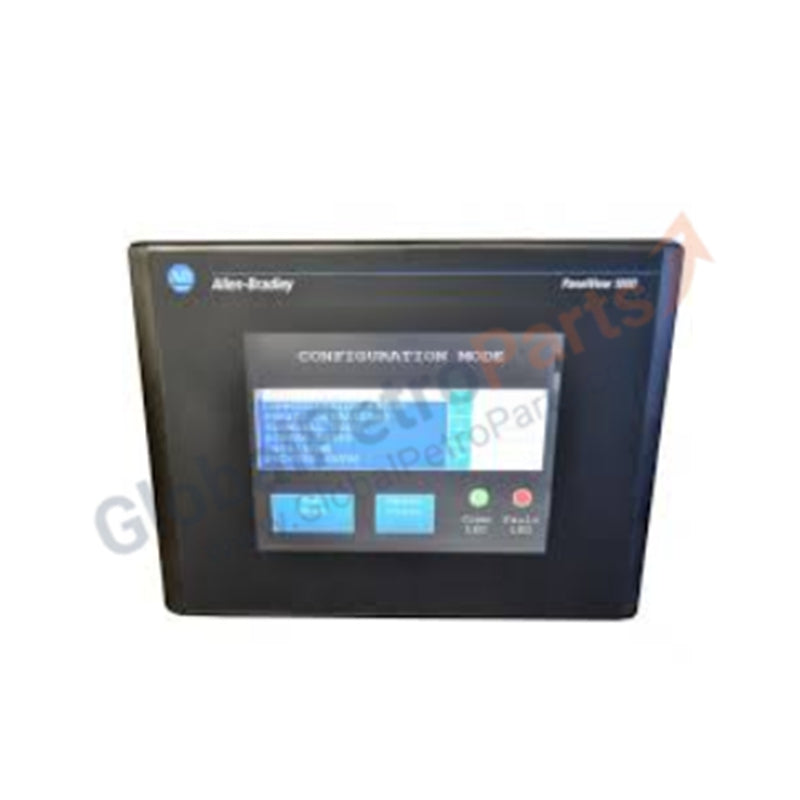

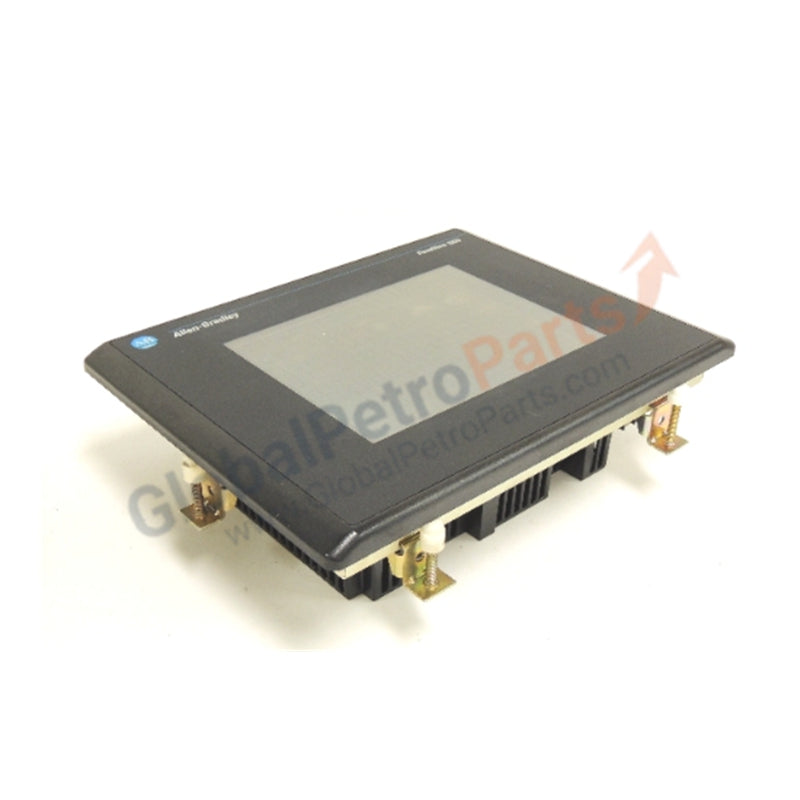

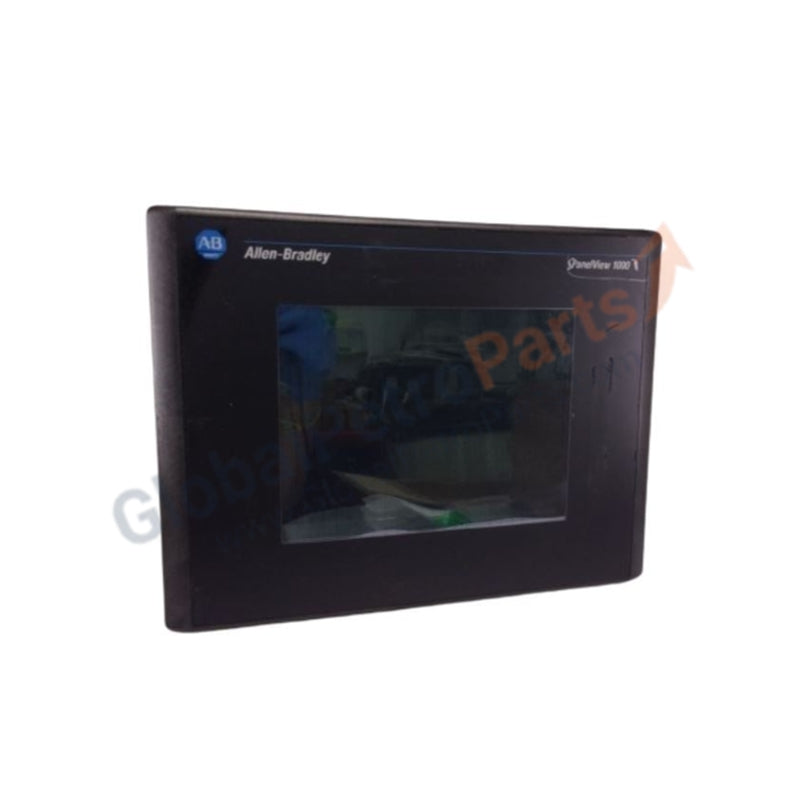

2711-T10C1L1 |Allen-Bradley | PanelView 1000 Standard Operator Terminal

Configured for human-machine interface interaction in industrial control networks, the Allen-Bradley 2711-T10C1L1 (2711-T10C1L1 Operator Terminal) provides direct physical input and visual process monitoring. This unit utilizes a color active matrix TFT display with CCF backlighting to render runtime data, managed via an integrated touchscreen interface. Communication is facilitated through Remote I/O (RIO) and an RS-232 printer port, supporting data exchange within Allen-Bradley control architectures.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks & Firmware Flash Compatibility

The 2711-T10C1L1 operates within defined control networks requiring consistent data throughput for RIO communication. Deterministic performance is contingent upon the correct configuration of RIO scan lists and baud rate matching. Firmware flash compatibility is mandatory when migrating or replacing terminals to ensure parity with the existing controller's instruction set. Users must ensure that the communication bus remains terminated at both ends to prevent signal reflection, which can introduce packet latency or drop-outs in the terminal's HMI update cycle. Memory allocation for application screens must be verified against the 1008 KB runtime limit to avoid runtime errors during screen transitions.

Frequently Asked Questions

Q: Can the 2711-T10C1L1 touchscreen be replaced independently if it becomes unresponsive?

A: No. The touchscreen assembly is an integral component of the display module. Damage to the touch layer requires replacement of the entire display assembly or the terminal unit to maintain NEMA 4X seal integrity.

Q: How does the terminal respond to input voltage fluctuations within the 18-32 VDC range?

A: The terminal features an internal regulator to maintain steady-state operation within the specified voltage range. However, transient voltages exceeding 32 VDC may cause immediate hardware protection shutdown or permanent damage to the power input stage.

Field Installation Guidelines

• Enclosure Sealing: Ensure the mounting surface is flat and rigid. Tighten mounting clips in a cross-pattern to achieve uniform pressure on the gasket, which is necessary to meet NEMA 4X ingress protection standards.
• Grounding: Connect the chassis ground terminal to a common industrial earth ground using a minimum 14 AWG wire. Avoid common-mode noise by isolating the DC power supply return from high-voltage AC circuits.
• Cable Routing: Keep RIO and RS-232 communication cables separated from motor power leads, variable frequency drive cabling, and high-current relay outputs by a minimum of 150 mm to prevent electromagnetic interference.
• Thermal Management: While the unit dissipates 39 W of heat, ensure adequate ventilation around the rear of the enclosure to prevent internal temperatures from exceeding 55 deg C, which accelerates the degradation of the liquid crystal display and backlight components.
