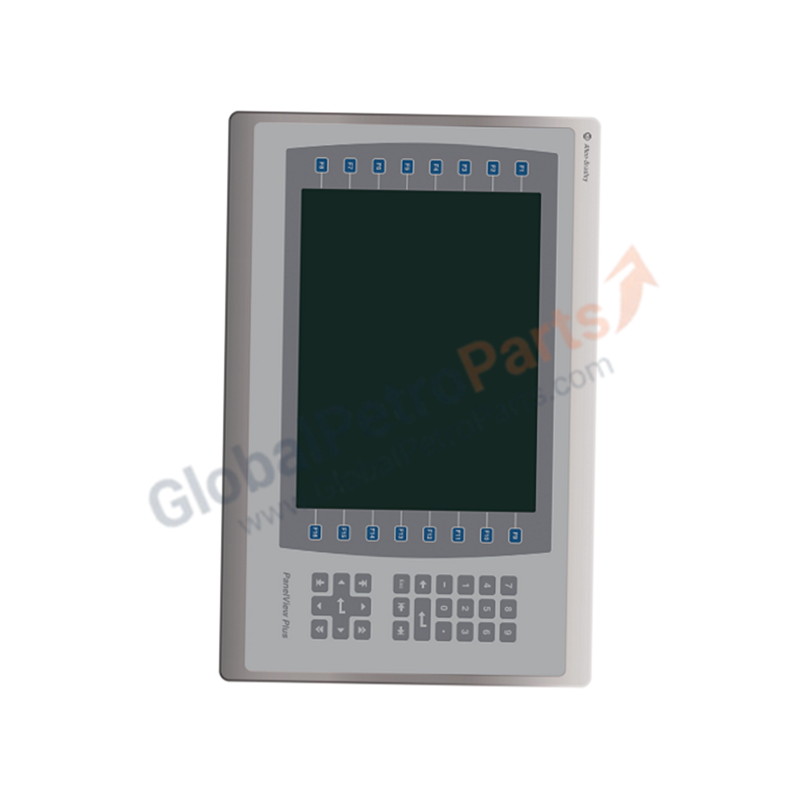

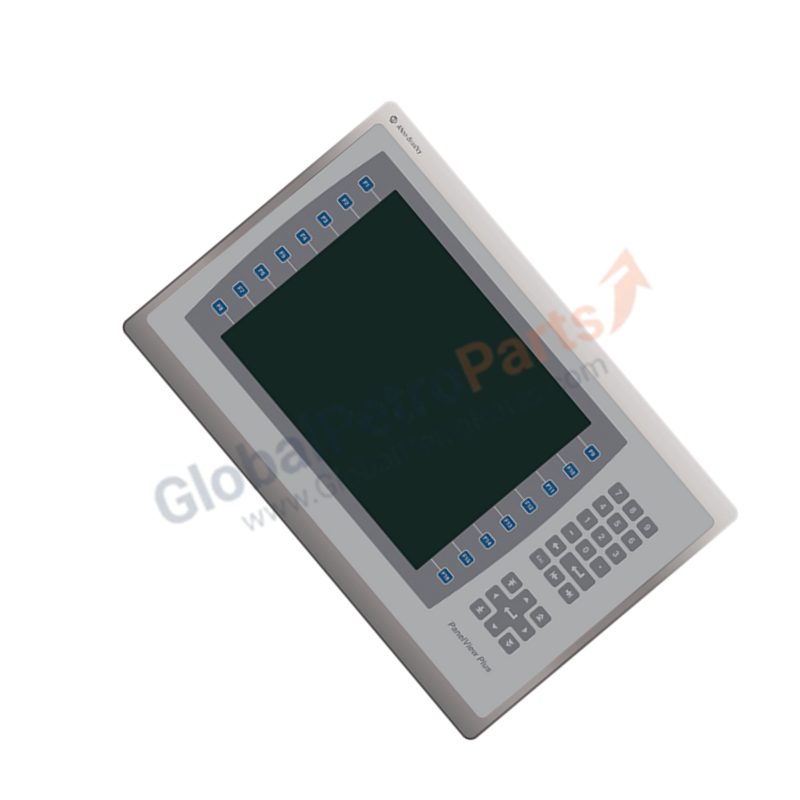

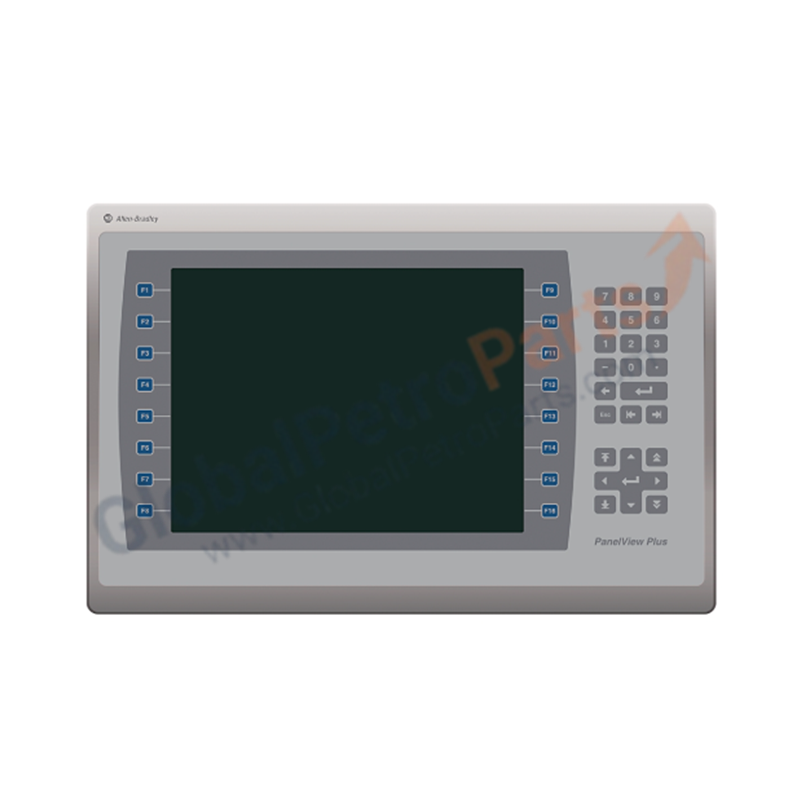

2711P-B10C22D9P | Allen-Bradley | PanelView Plus 7 Performance Operator Terminal

Configured for high-performance visualization and operator control in industrial environments, the Allen-Bradley 2711P-B10C22D9P (2711P-B10C22D9P Operator Terminal) provides direct physical execution of graphical status monitoring and command input via a combined touchscreen and keypad interface.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks

The 2711P-B10C22D9P integrates into deterministic networks via dual Ethernet ports, supporting high-speed communication required for real-time process monitoring. The device supports I/O density scaling through its capacity to handle large tag databases, ensuring that data visualization remains synchronized with controller logic updates. Firmware flash compatibility is managed via the terminal's operating system, allowing for updates to drivers and application runtime environments. The dual Ethernet ports facilitate redundant network topologies, maintaining communication stability even during single-point network failures.

Frequently Asked Questions

Q: Is the LED backlight on this terminal field-replaceable?

A: No, the white LED backlight is integrated into the display assembly and is not replaceable. It is rated for a minimum service life of 50,000 hours at 40 deg C before reaching half-brightness.

Q: Can the keypad be disabled while using the touchscreen for operator input?

A: Keypad and touchscreen inputs are handled by the terminal's firmware. While hardware input is always active, application-level configuration in the design software allows for the logical disabling of specific keys or touch regions based on the active screen or operator privilege level.

Field Installation Guidelines

1. Ensure the mounting panel is flat and rigid to maintain the NEMA/IP seal; utilize the provided sealing gasket to prevent liquid and particulate ingress.
2. Secure the unit using the integrated mounting clips; tighten evenly to the recommended torque specification to ensure uniform bezel pressure against the enclosure.
3. Terminate 24 VDC power to the input terminals, observing correct polarity; utilize a shielded power cable if the environment contains significant electromagnetic noise.
4. Connect Ethernet and USB cables to the ports located on the terminal rear; ensure strain relief is applied to all cables to prevent stress on the port connectors.
5. Verify that the terminal ventilation paths are clear of obstructions to allow for passive heat dissipation, as the unit dissipates up to 50 W under peak load.
