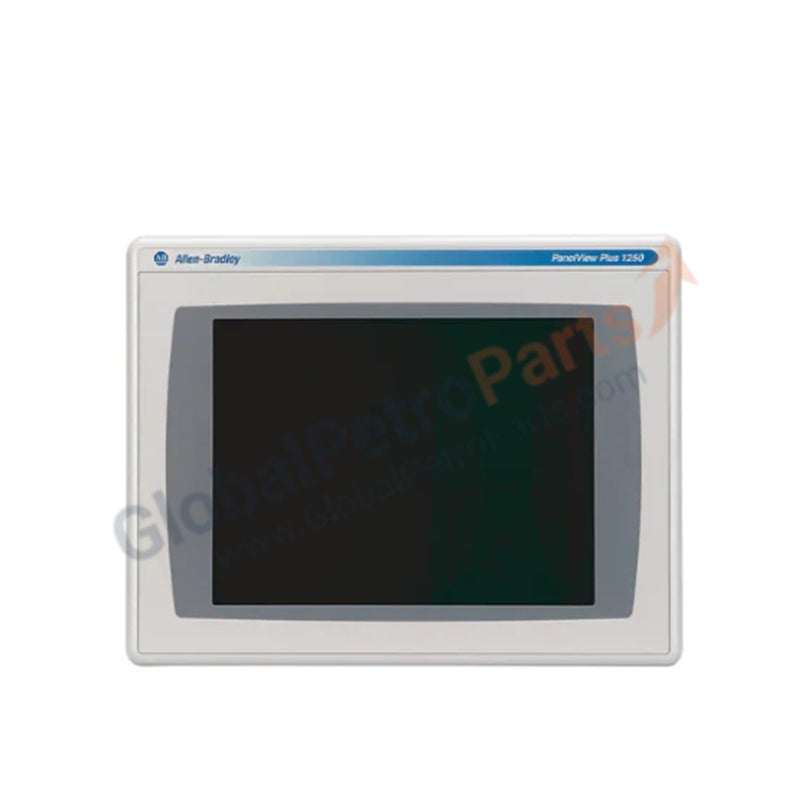

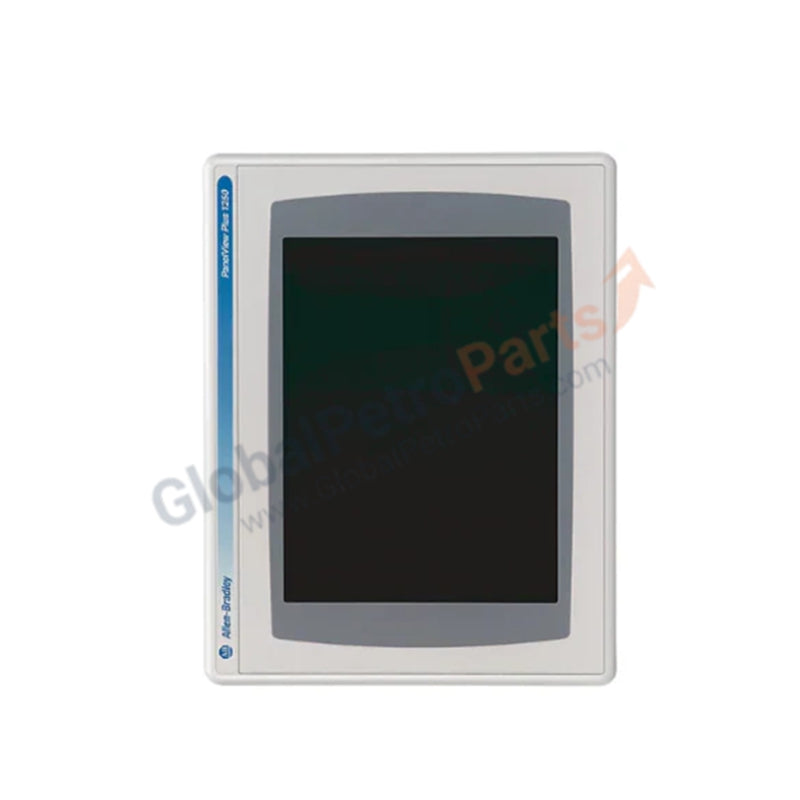

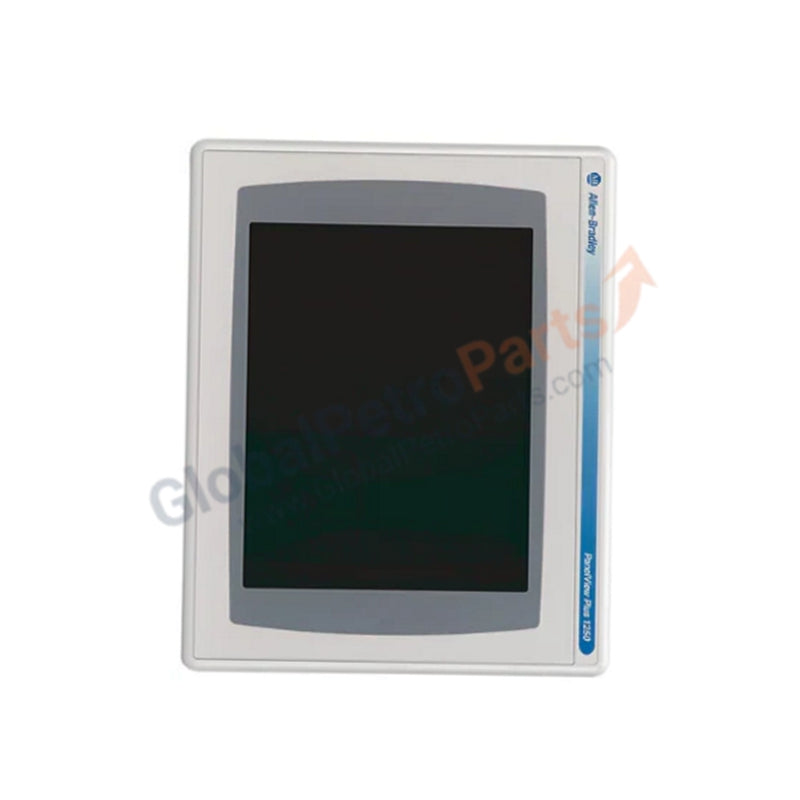

2711P-T12C4A8 | Allen-Bradley PanelView Plus 6 1200 Touchscreen Terminal

Product Overview

The Allen-Bradley 2711P-T12C4A8 functions as a high-performance Human Machine Interface (HMI) within the PanelView Plus 6 1200 series. This terminal provides advanced visualization and control for complex industrial applications, bridging the gap between the operator and the PLC. It features a 12.1-inch active-matrix TFT display to ensure crisp data representation even in high-glare plant environments. We supply this unit as 100% Brand New and Original to replace aging infrastructure or support existing system expansions.

Technical Specifications

The 2711P-T12C4A8 utilizes robust internal hardware to maintain seamless operation during data-heavy processing tasks:

• Display Size: 12.1 inches (Color Active-Matrix TFT)

• Resolution: 800 x 600 SVGA with 18-bit color graphics

• Operator Input: Analog Resistive Touch (Rated for 1 million presses)

• Internal Memory: 512 MB RAM / 512 MB Flash

• Input Voltage: 100–240V AC (50–60 Hz)

• Communication Ports: 1 x Ethernet, 1 x RS-232, 2 x USB Host ports

• Backlight: CCFL (Field replaceable, 50,000-hour minimum life)

• Weight: 6.00 lbs (2.72 kg)

• Series: Supports Series A and Series B configurations

Engineering Advantages

• Field-Replaceable Backlight: Unlike sealed units that require complete replacement upon component failure, the 2711P-T12C4A8 features a field-replaceable CCFL backlight. This design significantly reduces Mean Time to Repair (MTTR) and extends the total lifecycle of the hardware.

• Broad Power Compatibility: The integrated AC power supply accepts a wide input range (100–240V AC). This flexibility eliminates the need for external step-down transformers and allows for global deployment across various regional power grids.

• Robust Memory Architecture: With 512MB of RAM and Flash memory, the terminal handles complex FactoryTalk View ME applications, extensive alarm logging, and high-resolution graphic libraries without sluggish screen transitions.

• Versatile Communication: The simultaneous availability of Ethernet and RS-232 ports allows the terminal to communicate with modern Logix controllers while maintaining legacy links to older SLC or PLC-5 systems via the 2711-NC13 cable.

• Resistive Touch Accuracy: The touchscreen technology registers inputs even when operators wear industrial gloves, addressing a common pain point in chemical or heavy manufacturing facilities.

FAQs

• How does the 2711P-T12C4A8 differ from the PanelView Plus 7?

  While the PanelView Plus 7 is the successor, the Plus 6 (2711P-T12C4A8) remains essential for systems requiring specific legacy communication drivers or physical cutout compatibility. It supports both modern and older Rockwell protocols.

• Can I replace the backlight myself?

  Yes. The CCFL backlight is field-replaceable. You can perform the swap without specialized clean-room equipment, minimizing downtime on the factory floor.

• What software do I need to program this terminal?

  The unit utilizes FactoryTalk View Machine Edition (ME) software. It is compatible with projects developed in older versions, facilitating a straightforward migration path.

• Is this unit compatible with USB peripherals?

  Absolutely. The two integrated USB host ports support external keyboards, mice, and flash drives for data logging or project updates, enhancing ease of use during commissioning.
