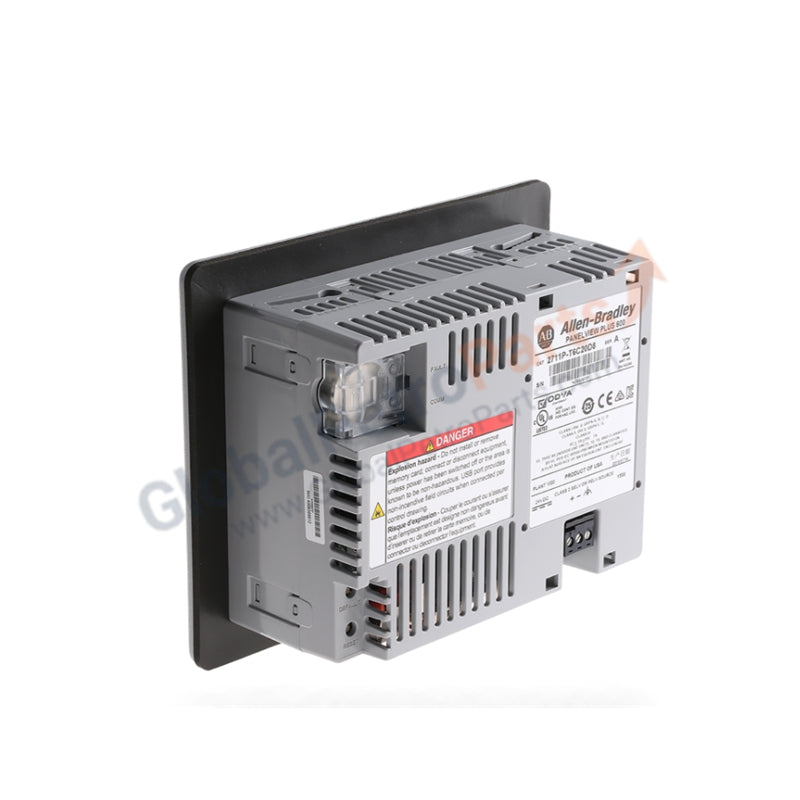

2711P-T6M3D | Allen-Bradley | PanelView Plus 600 Operator Interface Terminal

Overview

The Allen-Bradley 2711P-T6M3D is a discontinued operator interface terminal from the PanelView Plus 600 series. Designed for machine-level control and monitoring, it features a grayscale touchscreen display, multiple communication ports, and compact dimensions suitable for industrial control panels.

Technical Specifications

• Manufacturer: Allen-Bradley (Rockwell Automation)

• Model/Part Number: 2711P-T6M3D

• Product Line: PanelView Plus 600

• Category: PanelView Graphic Terminals

• Weight: 0.25 lbs (0.11 kg)

• Display:

• Type: Grayscale passive matrix, FSTN (film compensated super-twist nematic)

• Size: 5.5 in (approx. 5.7 in class)

• Active Area: 111 × 84 mm (4.37 × 3.30 in)

• Resolution: 320 × 240 pixels

• Backlight: CCFL, minimum 50,000 hours life

• Operator Input: Touchscreen interface

• System Memory: 5 MB

• Communication Ports: RS-232, Ethernet, DH-485, USB host

• Power Supply:

• Input Voltage Range: 18–32 V DC

• Nominal Voltage: 24 V DC

• Power Consumption: 25 W max (1.0 A at 24 V DC)

• Environmental Ratings:

• Operating Temperature: 0–55 °C (32–131 °F)

• Storage Temperature: -25–70 °C (-13–158 °F)

• Relative Humidity: 5–95% non-condensing

• Lifecycle Status: Obsolete / Discontinued

Key Features

• Touchscreen operator input for intuitive control

• Multiple communication options for flexible integration

• Compact and lightweight design for panel mounting

• Long-life CCFL backlight for extended operation

• Part of the PanelView Plus 600 family of HMIs

Applications

• Machine-level operator interface in industrial automation

• Control panels requiring compact HMI solutions

• Legacy systems using PanelView Plus 400/600 series terminals

• Monitoring and control of basic processes with touchscreen input

FAQ

• Q: What is the display resolution?  A: 320 × 240 pixels.

• Q: Which communication ports are available?  A: RS-232, Ethernet, DH-485, and USB host.

• Q: What is the nominal input voltage?  A: 24 V DC.

• Q: Is this product still in production?  A: No, it is discontinued/obsolete.
