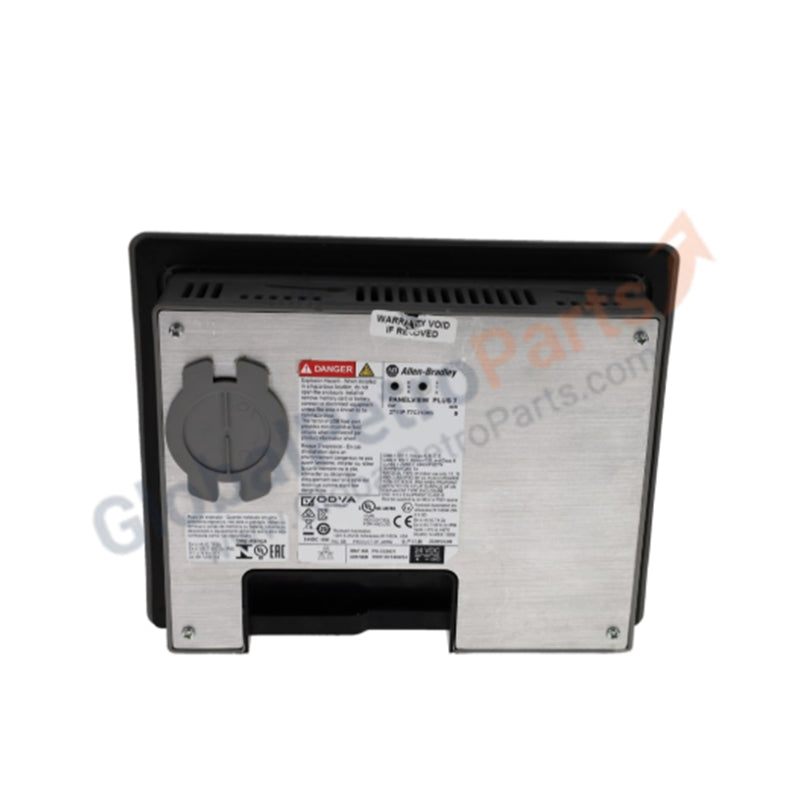

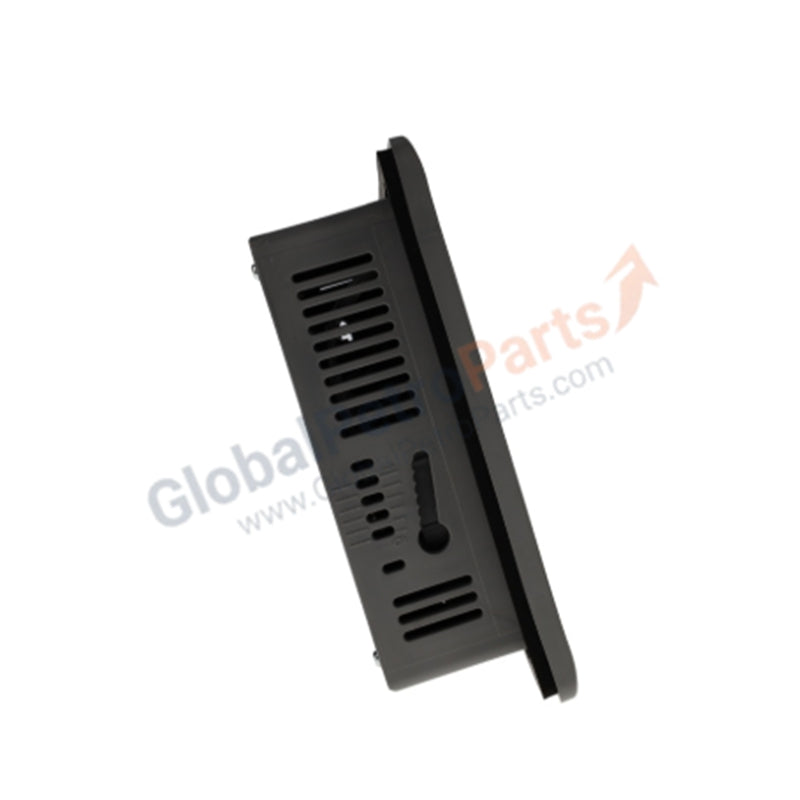

2711P-T7C22D8S | Allen-Bradley | PanelView Plus 7 Standard Operator Terminal

Product Overview

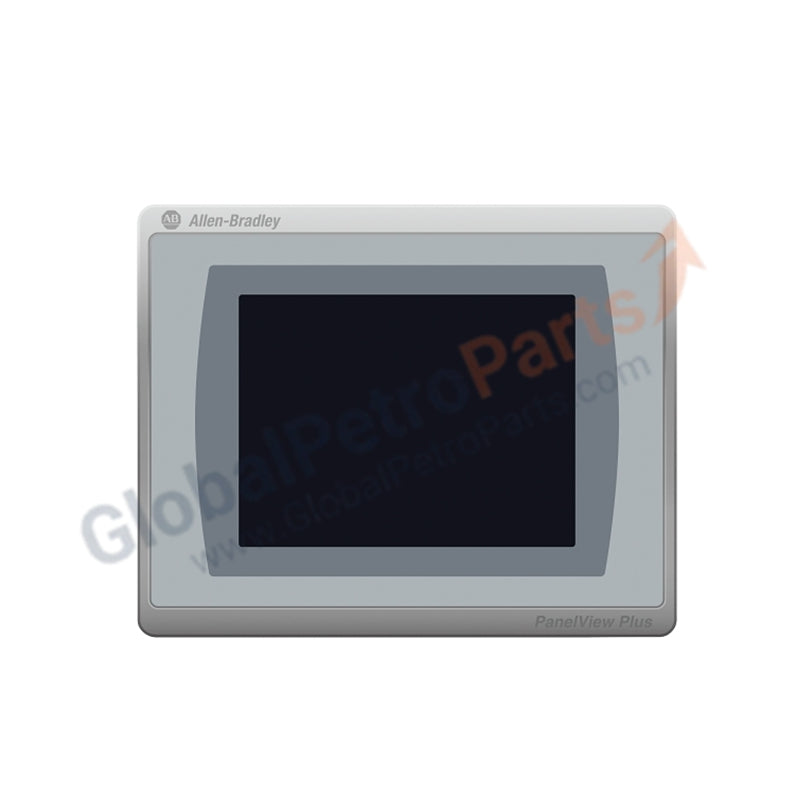

The Allen-Bradley 2711P-T7C22D8S serves as a high-performance Human-Machine Interface (HMI) within the PanelView Plus 7 Standard series. This terminal utilizes a 6.5-inch color active-matrix TFT display with VGA resolution to provide sharp, 18-bit graphics for machine-level visualization. We supply this unit as 100% Brand New and Original, ensuring your automation system benefits from the latest solid-state LED backlight technology and dual Ethernet connectivity for streamlined industrial networking.

Technical Specifications

Engineering Advantages

• High-Definition Process Visualization: The 640 x 480 VGA resolution supports 18-bit color graphics. This allows the terminal to render complex P&ID diagrams and detailed alarm gradients with high clarity, reducing operator error during critical status checks.

• Dual Ethernet Architecture: Two integrated Ethernet ports support various network topologies. These ports allow the terminal to connect simultaneously to the control network and a secondary maintenance or factory-floor network, simplifying system architecture without requiring external switches.

• Rugged Touch Response: The analog resistive touchscreen requires only 100g of operating force and withstands over 1 million actuations. This hardware ensures consistent performance in environments where operators wear heavy gloves or where debris might accumulate on the screen surface.

• Efficient Solid-State Lighting: The white LED backlight provides a minimum of 50,000 hours of life at 40 °C. Unlike legacy CCFL tubes, this solid-state design resists vibration and maintains consistent brightness levels across the entire operating temperature range.

• Ample Data Storage: 512 MB of nonvolatile memory offers approximately 80 MB of free user space. This capacity enables extensive local data logging, recipe management, and complex graphic storage directly on the HMI hardware.

FAQs

• Does the 2711P-T7C22D8S support DLR (Device Level Ring) topologies?

  Yes. The dual Ethernet ports on the PanelView Plus 7 Standard terminals support DLR configurations. This ensures network resiliency; if one path fails, the terminal continues to communicate with the controller via the redundant path.

• Can I replace the backlight if it dims?

  No. The 2711P-T7C22D8S utilizes a solid-state LED backlight that engineers integrated into the display assembly. This design improves durability against industrial shock but makes the backlight non-replaceable. We recommend replacing the unit with our Brand New stock to restore full brightness.

• What type of power supply does this HMI require?

  The unit operates on 18–30V DC. Ensure your power supply can provide at least 2.1 Amps at 24V DC to handle the maximum 50W power consumption during startup and high-brightness operation.

• Is this model compatible with FactoryTalk View Machine Edition?

  Yes. The 2711P-T7C22D8S runs FactoryTalk View ME software. Since we supply this as Original and New, it supports the latest firmware versions, allowing you to deploy modern HMI projects with advanced animation and security features.
