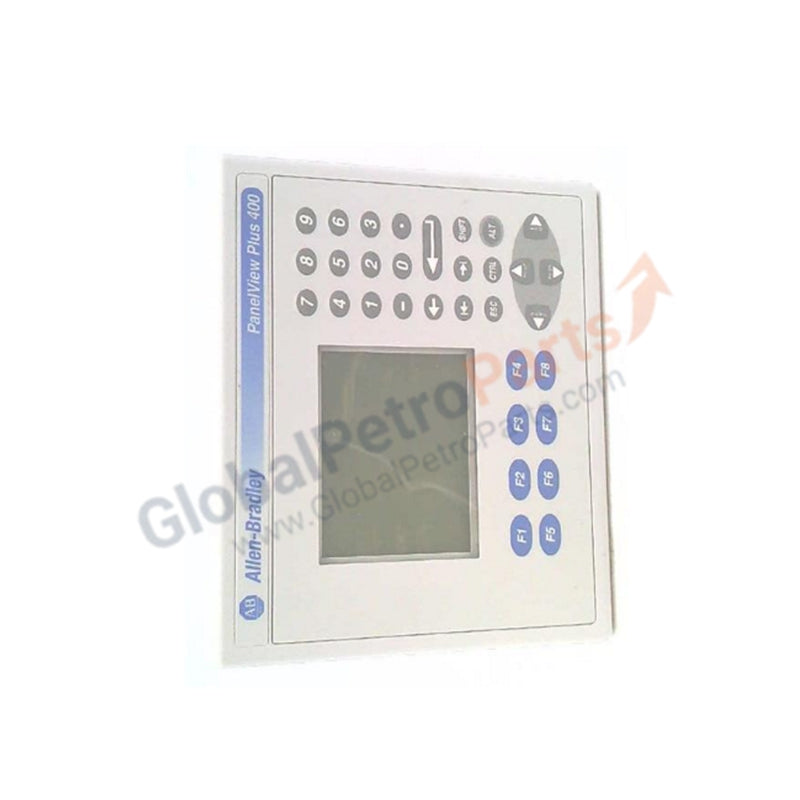

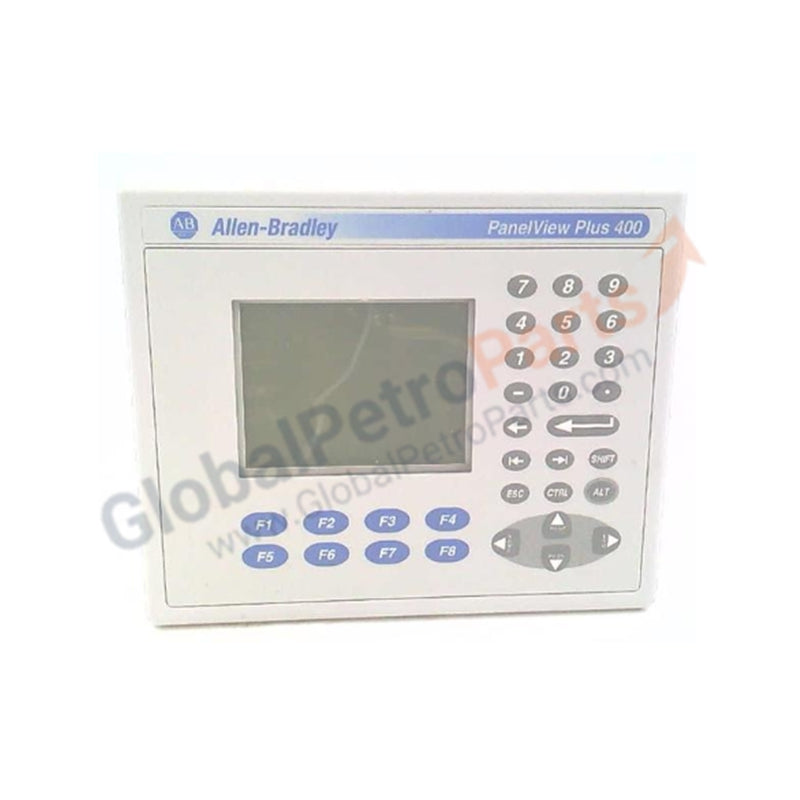

2711PC-K4M20D | Allen-Bradley | Panelview Plus 6 Compact

Configured for HMI data visualization in industrial control networks, the Allen-Bradley 2711PC-K4M20D (2711PC-K4M20D Operator Interface Terminal) provides direct physical/electrical execution. This terminal facilitates local operator interaction via an integrated keypad, utilizing Ethernet and RS-232 communication interfaces for real-time data exchange with controller platforms.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks

The 2711PC-K4M20D operates within industrial Ethernet environments, leveraging deterministic data packet delivery for consistent HMI screen updates. Communication latencies are subject to the load on the network segment; users should implement managed switches to segregate high-volume traffic from the HMI-to-PLC command path. Firmware flash compatibility is managed through the terminal's internal OS; ensure the runtime version aligns with the intended project file configuration to prevent handshake failures between the terminal and the connected logic controller.

Frequently Asked Questions

Q: Is the 2711PC-K4M20D suitable for outdoor applications?

A: No. Although the terminal meets NEMA/UL 4X enclosure standards, it is strictly rated for indoor use only. Prolonged exposure to direct sunlight or uncontrolled outdoor environmental factors can degrade the display and internal electronics.

Q: Can the keypad be replaced if individual keys fail?

A: No. The keypad is integrated into the front bezel assembly. In the event of physical mechanical failure, the entire terminal unit must be replaced.

Field Installation Guidelines

• Panel Cutout: Mount the terminal in a flat, rigid panel surface that is at least 3 mm thick to maintain the integrity of the IP66 seal. Use the provided mounting clips to secure the bezel against the gasket.

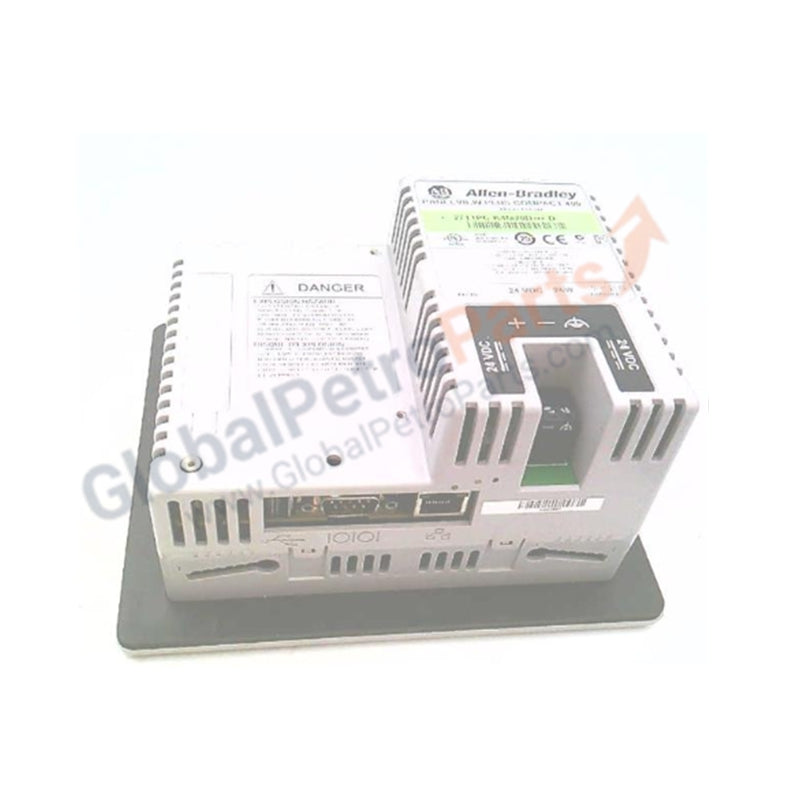

• Grounding: Ensure the terminal chassis is connected to a dedicated earth ground lug on the back of the unit. Proper grounding is necessary to protect against electrostatic discharge (ESD) and electromagnetic interference (EMI).
• Power Wiring: Connect a regulated 24 VDC power supply to the input terminals. Ensure the supply wire gauge is adequate to prevent voltage drops that could cause terminal resets during peak display power demand.
• Communication Cabling: Route Ethernet and RS-232 cables away from high-voltage AC lines and VFD motor cables to minimize signal noise and potential packet loss.
