2711PC-T6C20D | Allen-Bradley PanelView Plus 6 Compact Graphic Terminal

Product Overview

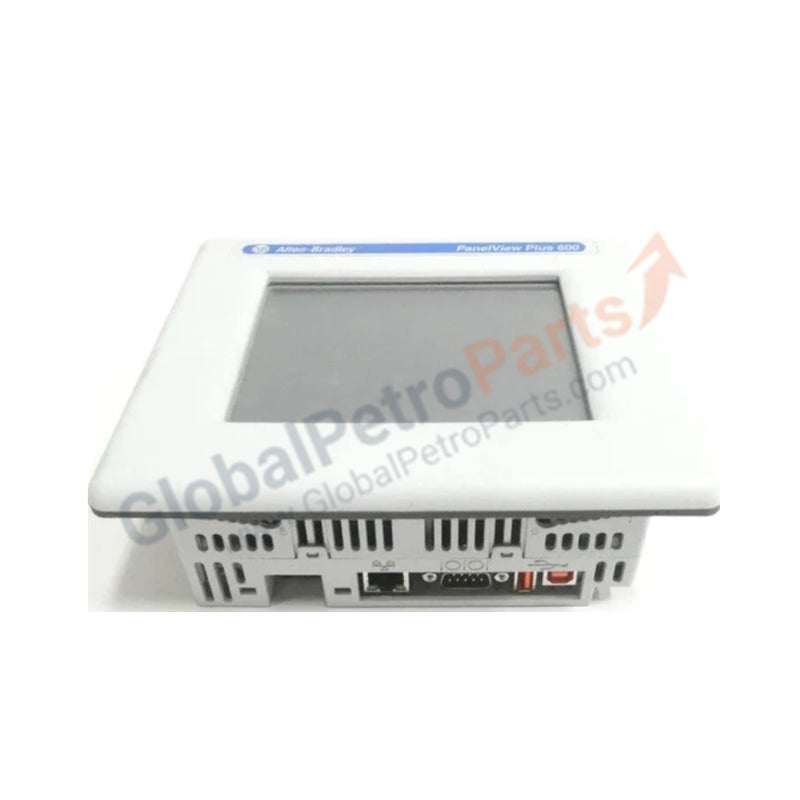

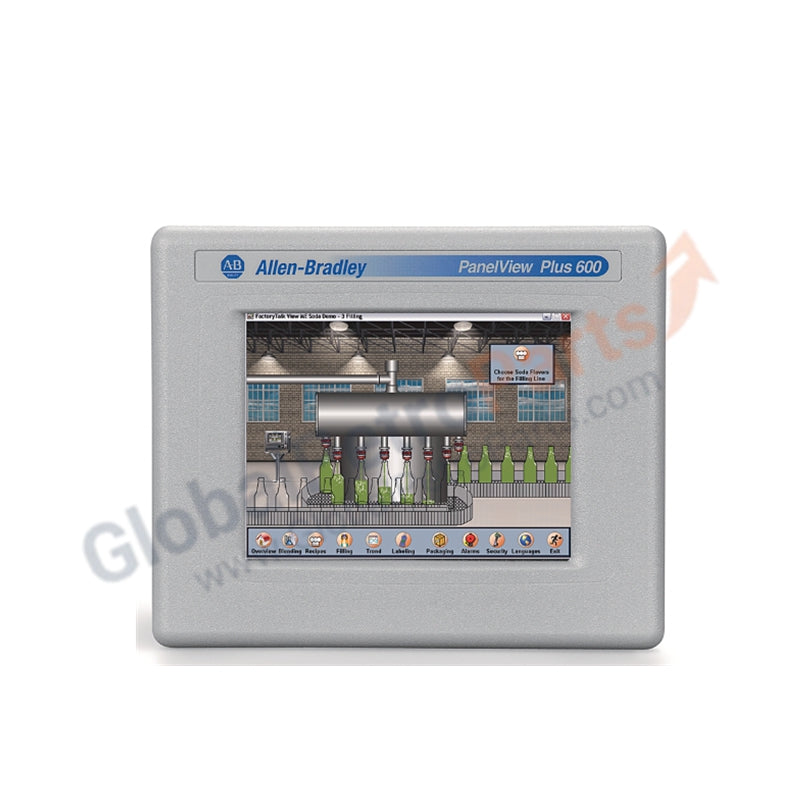

The Allen-Bradley 2711PC-T6C20D functions as a high-performance Human-Machine Interface (HMI) within the PanelView Plus 6 Compact family. This terminal bridges the gap between complex machine data and operator action by providing a vibrant, 5.7-inch color visualization platform. Engineered for 24V DC environments, it streamlines process monitoring and machine-level control in space-constrained applications. We supply this unit as 100% Brand New in original factory packaging, ensuring maximum backlight longevity and touchscreen responsiveness for your critical infrastructure.

Technical Specifications

The 2711PC-T6C20D utilizes advanced TFT technology and robust processing power to handle modern HMI applications:

Engineering Advantages

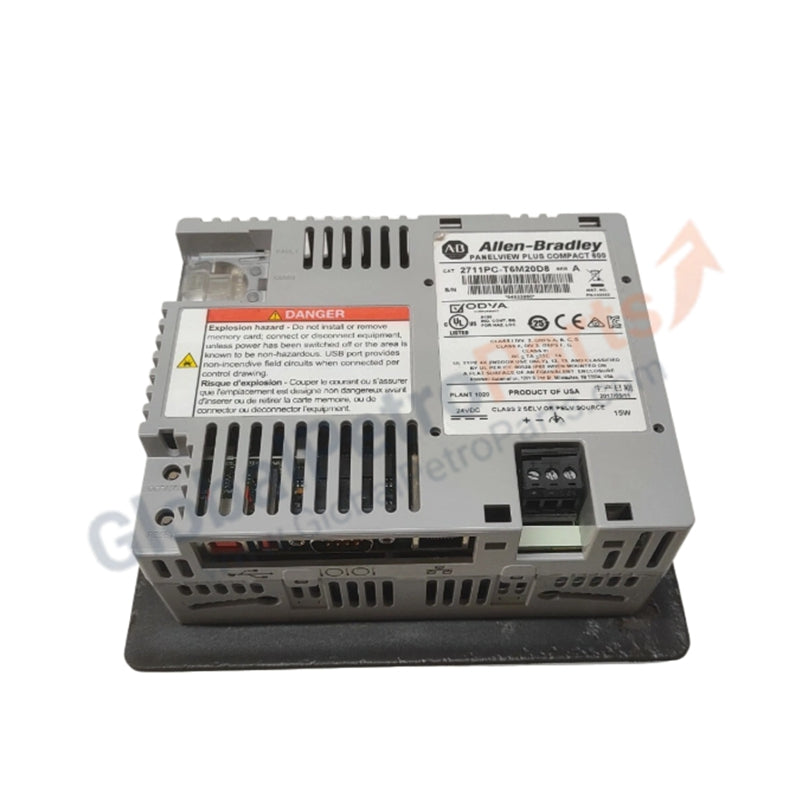

• Optimized for Compact Enclosures: The shallow 6.8 cm depth allows for installation in slim control panels where standard HMIs cannot fit. This small footprint enables localized control directly on individual machine segments.

• Superior Visual Clarity: The 440-nit luminance rating ensures the display remains legible under harsh overhead factory lighting. The 18-bit color depth allows for detailed diagnostic shading and clear alarm status differentiation.

• Rugged Input Durability: The analog resistive touchscreen supports operators wearing industrial gloves. It withstands up to 1 million actuations with an operating force of 10–110 grams, preventing input failure in high-traffic manufacturing environments.

• Advanced Data Management: With 512 MB of nonvolatile storage, the terminal handles complex graphic libraries and data logging local to the machine. This reduces network traffic by processing and displaying critical KPIs directly at the operator station.

FAQs

• Q: How much storage space remains for my specific HMI project?

• A: After the operating system and system files, the 2711PC-T6C20D provides approximately 73 MB of nonvolatile memory specifically for user-defined programs, bitmaps, and tags.

• Q: Does the backlight require periodic replacement?

• A: No. This model uses a solid-state white LED backlight designed for a minimum service life of 25,000 hours. Unlike older CCFL bulbs, these LEDs resist vibration and do not require field replacement.

• Q: What power supply should I use to prevent hardware damage?

• A: You must use a Class 2, SELV, or PELV 24V DC power supply. This ensures the terminal receives clean, isolated power and protects the internal electronics from industrial voltage surges.

• Q: Is the internal clock battery proprietary?

• A: While the official catalog number is 2711P-RY2032, the unit accepts standard CR2032 coin-cell batteries. You can replace the battery in the field without disassembling the entire terminal housing.
