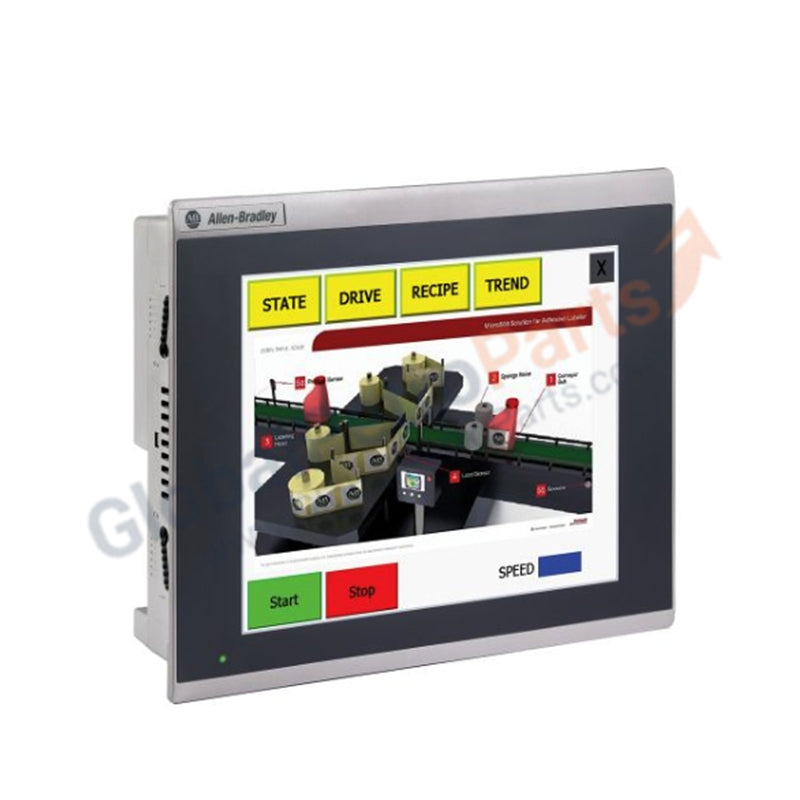

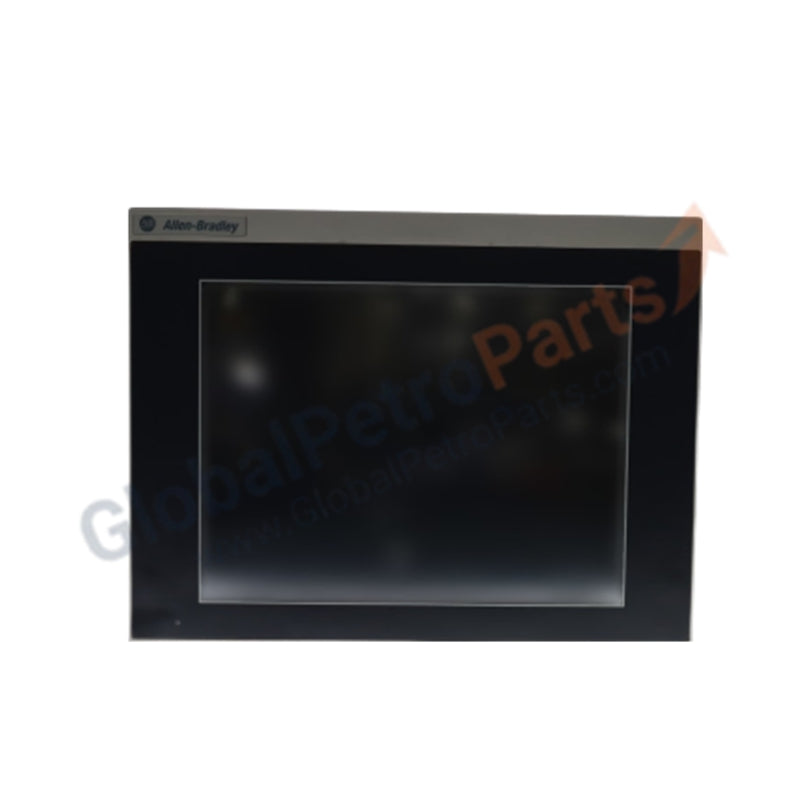

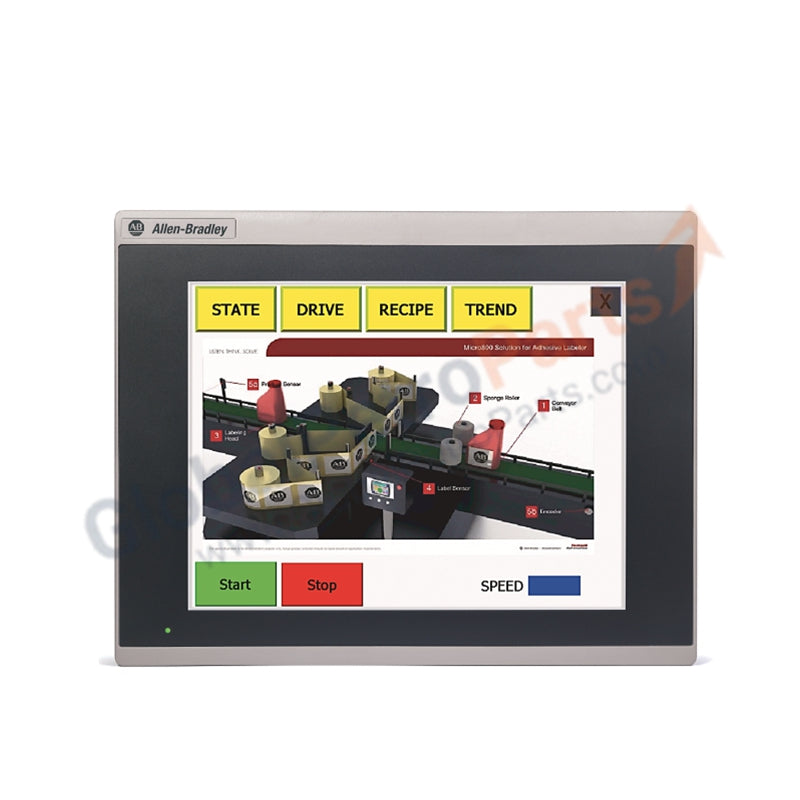

2711R-T10T | Allen-Bradley PanelView 800 Graphic Terminal

Product Overview

The Allen-Bradley 2711R-T10T functions as the premier visualization interface for standalone machines and small-scale automation systems. Featuring a 10-inch widescreen color transmissive TFT LCD, this terminal provides expansive display real estate for complex process monitoring. It integrates seamlessly with Micro800, MicroLogix, and CompactLogix 5370 controllers via high-speed Ethernet and serial communication. We provide this unit as 100% Brand New and Factory Original, ensuring your facility receives peak optical clarity and touch responsiveness.

Technical Specifications

The 2711R-T10T utilizes robust internal hardware to maintain 24/7 operation in industrial environments.

Engineering Advantages

• Optimized Widescreen Visualization: The 800 x 600 widescreen format maximizes the operator's field of view. This allows engineers to consolidate multiple alarm banners and process variables onto a single screen, reducing the need for repetitive page navigation.

• Flexible Data Management: Integrated USB and Micro-SD ports facilitate rapid recipe management and data logging. Operators can export historical trend data directly to external media, streamlining compliance reporting and production analysis.

• Rapid System Integration: The built-in Ethernet port supports both programming and controller communication. This simplifies the network architecture by allowing users to download applications and communicate with multiple PLCs over a single cable.

• Extended Service Life: A 40,000-hour backlight rating and a 5-year battery life ensure long-term availability. The hardware withstands rigorous industrial duty cycles, while the analog touch surface provides reliable input even for operators wearing industrial gloves.

FAQs

• Does the 2711R-T10T support both landscape and portrait orientations?

  Yes. You can configure the 2711R-T10T for either horizontal (landscape) or vertical (portrait) mounting to accommodate specific machine footprints or narrow enclosure spaces.

• What software do I need to program this terminal?

  Use Connected Components Workbench (CCW) software to design and download applications. This free, all-in-one software environment streamlines the configuration of the HMI, controllers, and drives.

• Can this HMI replace a discontinued PanelView Component (2711C) module?

  Absolutely. The PanelView 800 series serves as the direct upgrade path for the PanelView Component line. It utilizes the same cutout dimensions for several models, allowing for a drop-in hardware replacement in many existing panels.

• How does the terminal handle power fluctuations?

  The unit operates across a wide input range of 18V to 32V DC. This tolerance allows the HMI to maintain stable performance despite the voltage drops common during heavy motor startups on a shared 24V DC bus.
