2711R-T4T | Allen-Bradley PanelView 800 Graphic Terminal

Product Overview

The Allen-Bradley 2711R-T4T serves as a rugged, compact operator interface designed for standalone machine-level control. Part of the PanelView 800 series, this terminal optimizes small-scale automation by combining high-resolution visualization with versatile communication options. It connects seamlessly to Micro800, MicroLogix, and CompactLogix 5370 controllers, providing operators with precise process transparency. We supply this unit as 100% Brand New and Original, ensuring full manufacturer-backed performance for your production line.

Technical Specifications

The 2711R-T4T integrates robust hardware to handle intensive industrial HMI applications.

Engineering Advantages

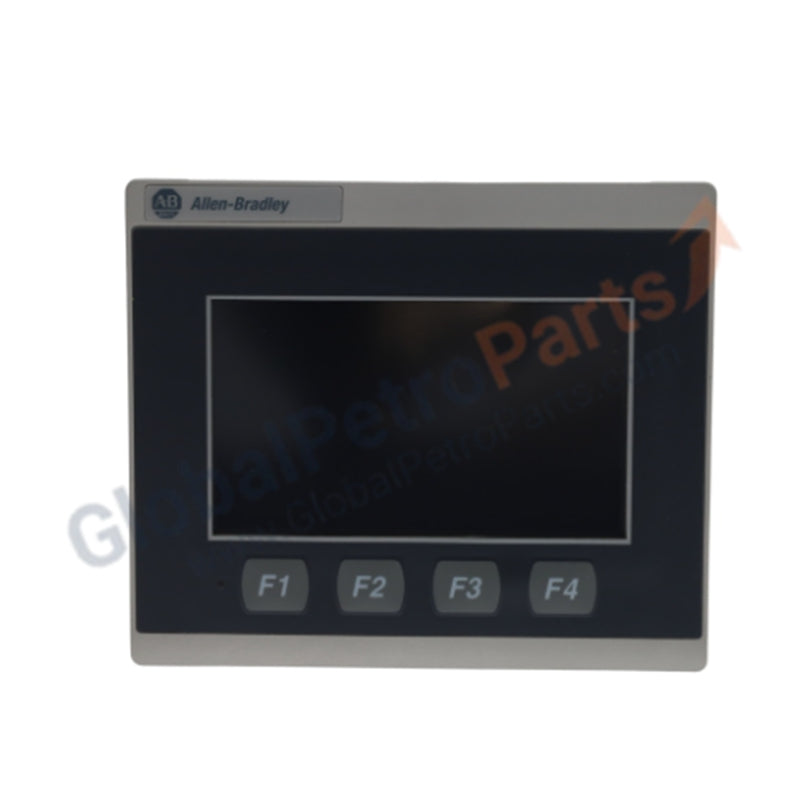

• Dual-Mode Control Interface: This terminal provides both an analog resistive touchscreen and four dedicated tactile function keys. This configuration ensures reliable operation even when users wear heavy industrial gloves or work in environments with high vibration.

• High-Speed Data Processing: The 128 MB internal memory architecture accelerates screen transition speeds and alarm response times. It manages complex graphic sets and large recipe databases without compromising system latency.

• Space-Saving Vertical/Horizontal Mounting: The slim profile and lightweight design (0.75 lbs) facilitate installation in shallow enclosures. Engineers can mount the terminal in portrait or landscape orientation to fit specific machine footprints.

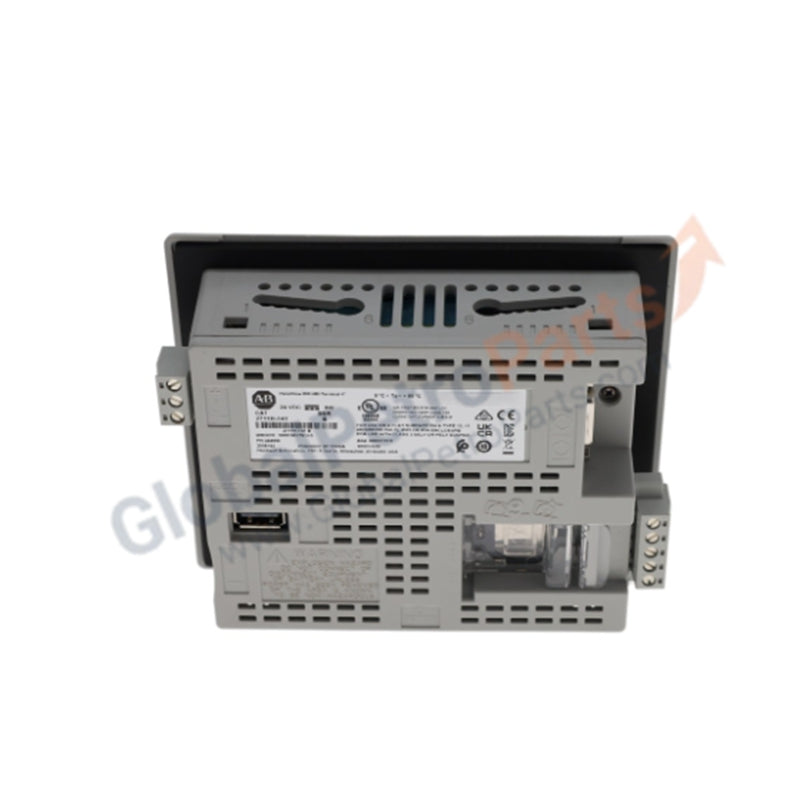

• Environmental Data Integrity: The onboard SD card slot and high-speed USB port allow for rapid data logging and recipe synchronization. A replaceable battery ensures the real-time clock maintains accurate time-stamping for alarm histories during power outages.

FAQs

• Can the 2711R-T4T replace the discontinued PanelView Component (2711C) models? Yes. The PanelView 800 series functions as the direct functional replacement for the PanelView Component line. You can migrate existing applications using the Connected Components Workbench (CCW) software.

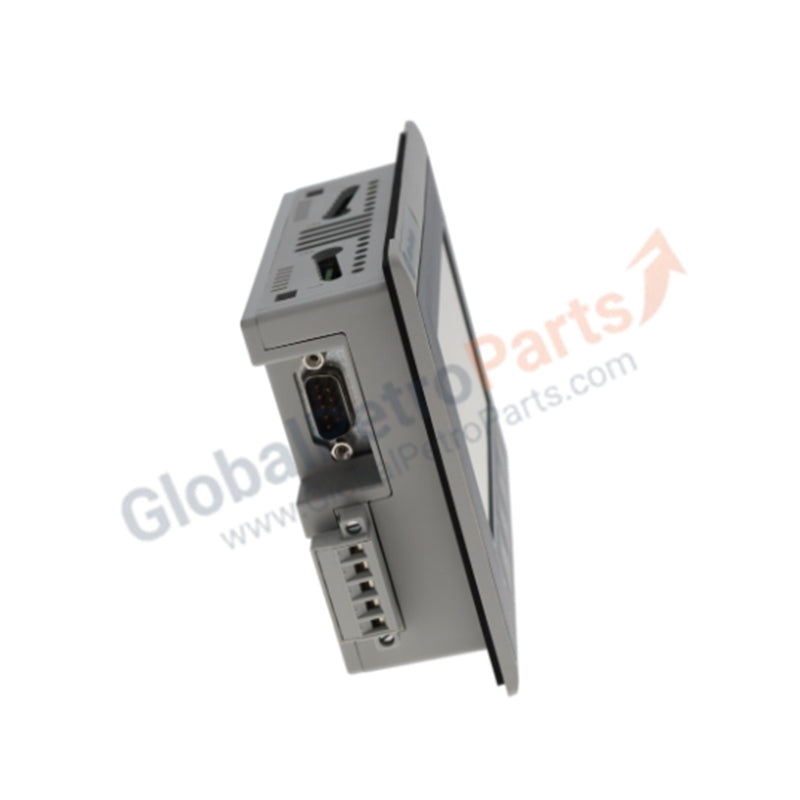

• What is the primary benefit of the Ethernet port on this model? The Ethernet port enables high-speed communication with Micro800 and CompactLogix controllers. It also allows for remote monitoring via Virtual Network Computing (VNC) servers, enabling engineers to view the HMI screen from a remote PC.

• How do I ensure the screen survives in oily or dusty environments? Always install the terminal using the provided mounting clips and gasket to achieve a NEMA 4X (indoor) or IP65 rating. For extra protection against harsh chemicals, we recommend applying a secondary protective overlay.

• Does this unit support multi-language displays? Yes. The 2711R-T4T supports multiple languages and Unicode characters, allowing you to deploy the same machine globally with localized operator interfaces.
