2713P-T7WD1 | Allen-Bradley | Operator Interface

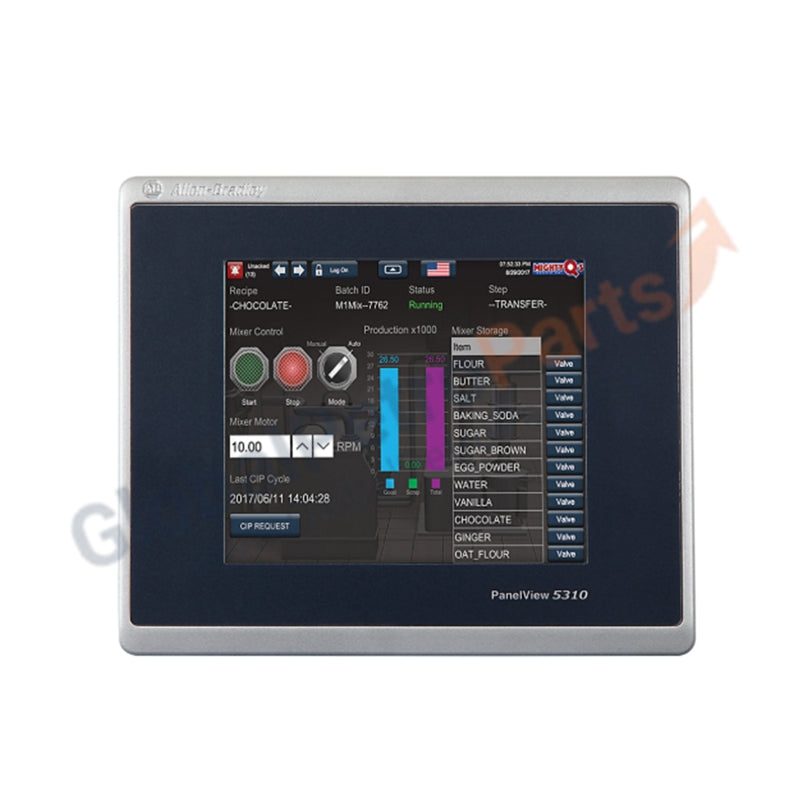

Configured for graphical process monitoring in industrial control networks, the Allen-Bradley 2713P-T7WD1 (2713P-T7WD1) PanelView 5310 Operator Interface provides direct physical/electrical execution of human-machine interaction through its 6.5-inch wide-aspect color touchscreen display.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks

The 2713P-T7WD1 integrates into control architectures via its single Ethernet port, facilitating high-speed data exchange with connected controllers. The unit's performance is strictly governed by the firmware flash compatibility between the runtime HMI application and the controller's communication stack. Users must ensure that the network topology supports the required data throughput to maintain deterministic update rates for animated graphical objects. I/O density scaling within the application must be monitored, as excessive tag polling intervals may introduce visual lag during high-load communication states.

Frequently Asked Questions

Q: Does the 2713P-T7WD1 support hot-swapping of the communication cable during operation?

A: While the Ethernet connection is physically designed for standard RJ45 connectivity, hot-swapping or disconnecting the cable during active communication may trigger a temporary loss-of-data fault in the HMI runtime application.

Q: How is the display resolution managed for legacy application migration?

A: The display operates at a fixed resolution of 640 x 480 pixels. Applications migrated from lower-resolution terminals may require object resizing or coordinate adjustments within the design software to ensure proper alignment on the screen.

Field Installation Guidelines

1. Confirm the panel cutout dimensions are within manufacturer tolerances to ensure the integrity of the gasket seal and prevent moisture ingress.
2. Secure the interface using the provided mounting brackets, applying uniform torque to prevent frame distortion.
3. Terminate the 24 VDC power supply to the interface terminal block; confirm polarity is correct to prevent internal circuit damage.
4. Route communication cabling separate from high-voltage power lines to minimize electromagnetic interference (EMI) that can cause display flicker or communication errors.
5. Utilize high-quality shielded Ethernet cables for network connections, ensuring the shield is properly terminated to a low-impedance earth ground.
6. Upon initial startup, configure the network IP address and subnet mask via the terminal's system settings menu to establish connectivity with the host PLC.
