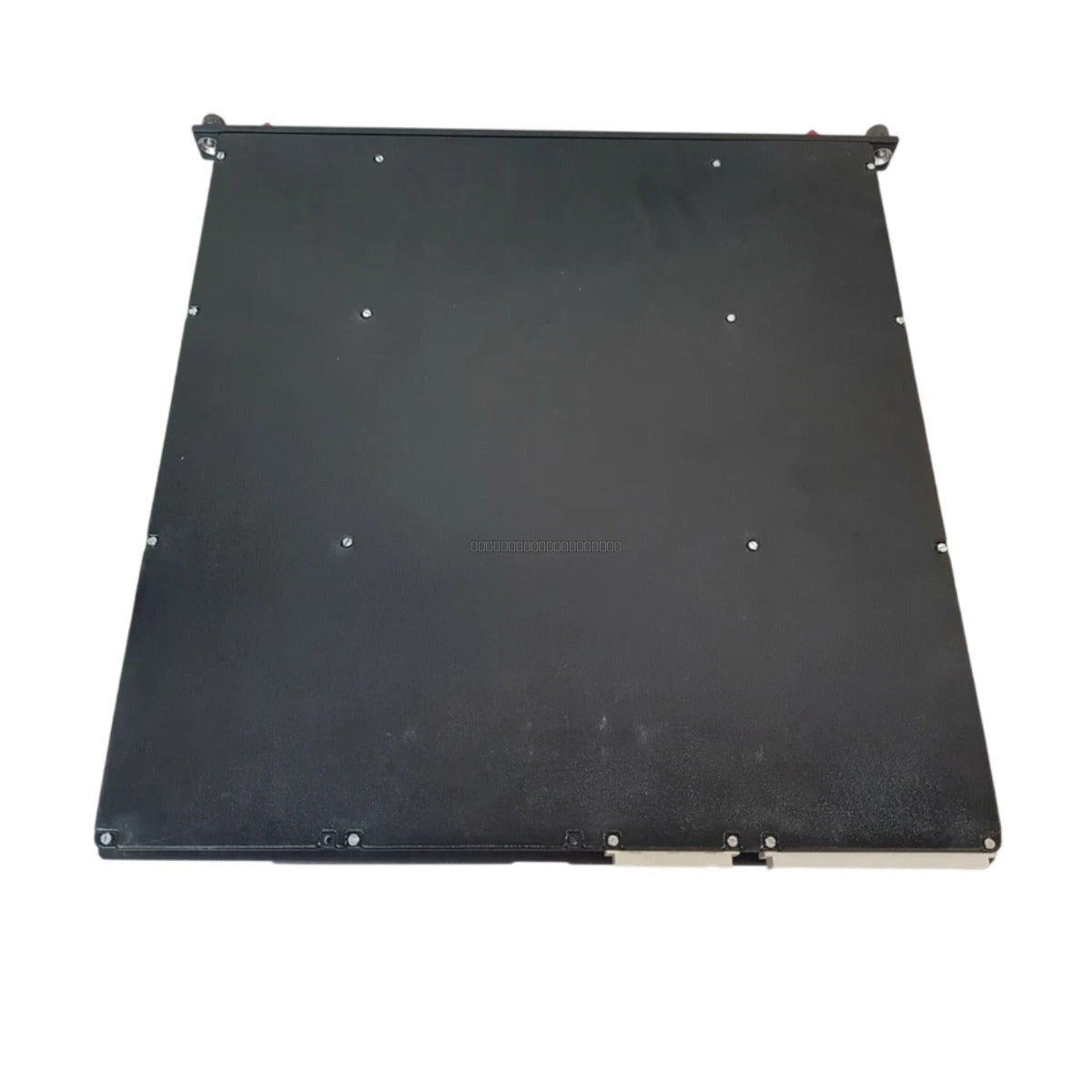

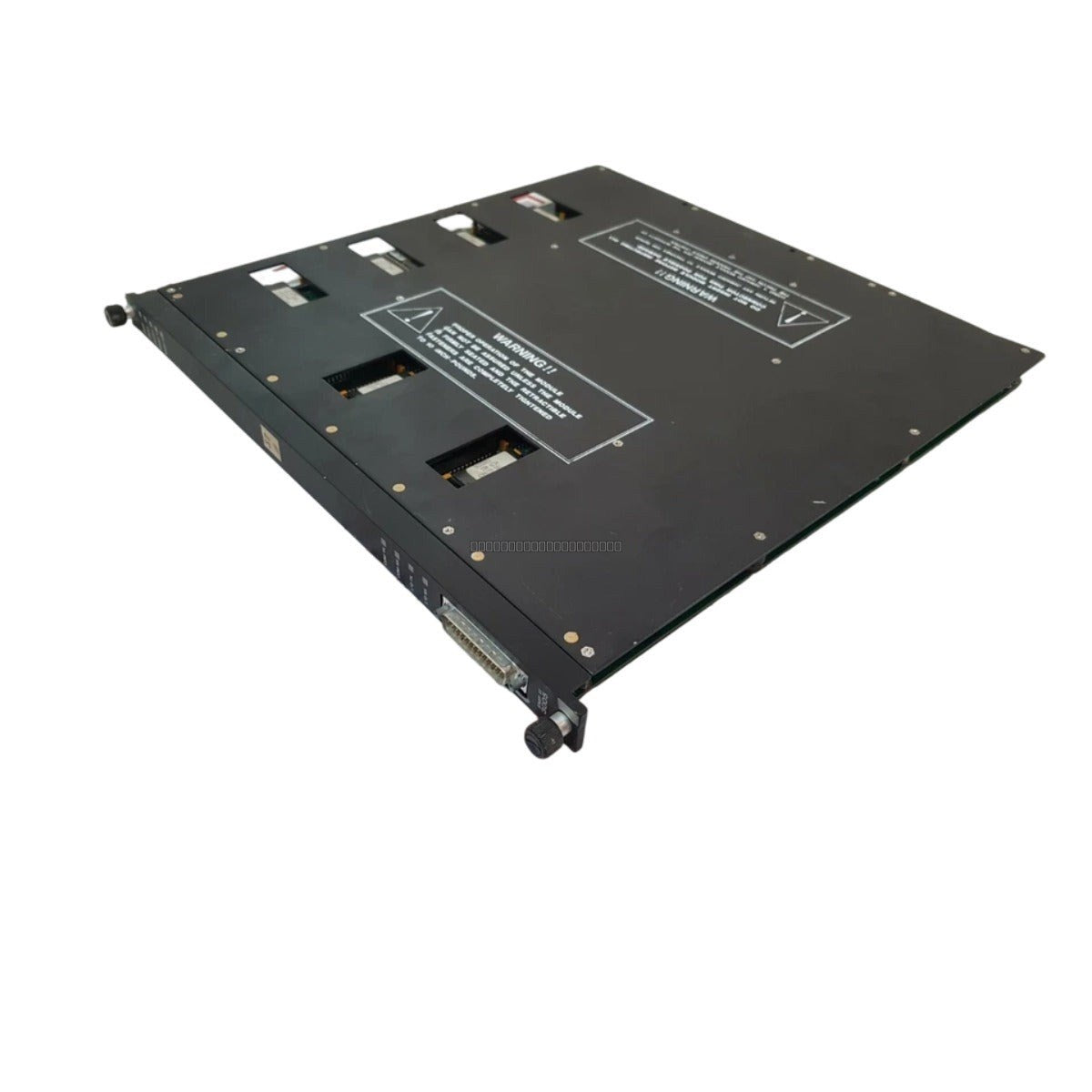

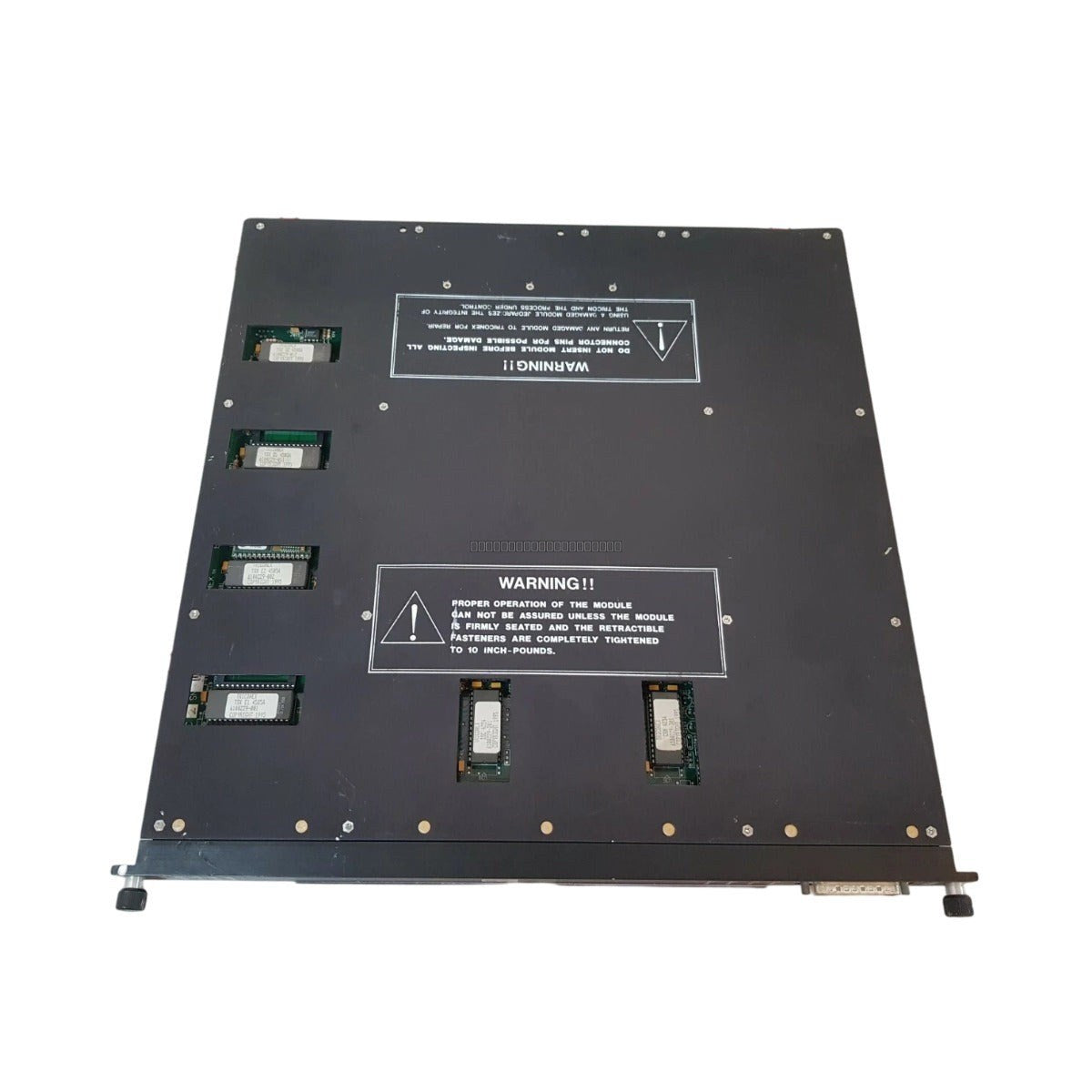

Triconex 3005 Main Processor Module

Description

The Triconex 3005 is a high-integrity Main Processor Module designed as the computational core for safety-critical programmable logic controllers. Utilizing Triple Modular Redundancy (TMR) architecture, this module processes extensive application logic and diagnostics with fault tolerance, making it suitable for hazardous industrial applications including oil refining, thermal power generation, petrochemical synthesis, and mining. The processor executes continuous hardware voting across independent execution paths to neutralize single-point failures, ensuring uninterrupted control actions and preventing false trips.

Features

• Triple Modular Redundancy (TMR) architecture for high-availability safety control.
• High-speed synchronized processing across three independent microprocessor channels.
• Proprietary Tribus backplane communication for inter-channel synchronization and data voting.
• Continuous hardware voting on all inputs and outputs during every scan cycle.
• Supports hot-swapping for online maintenance without interrupting active safety processes.
• Integrated diagnostic capabilities for real-time fault detection and isolation.

Applications

The 3005 Main Processor Module is engineered for high-stakes industrial environments where safety and uptime are critical. Typical applications include Emergency Shutdown Systems (ESD), Burner Management Systems (BMS), Fire and Gas (F&G) monitoring, and high-availability process control in petrochemical and power generation facilities.

Technical Specifications

Installation Guidelines

• Ensure the Triconex chassis is properly grounded before installing the module.
• The 3005 module supports hot-swapping; however, ensure the slot is clean and free of debris before insertion.
• Align the module carefully with the backplane connectors to prevent pin damage.
• Ensure adequate ventilation in the cabinet to maintain the operating temperature range of 0 to 60 deg C.
• Handle with standard ESD precautions; use a grounded wrist strap when handling the module outside of its protective packaging.
• Verify that the module is fully seated and the locking mechanisms are engaged to ensure reliable backplane contact.

FAQ

Is the 3005 module hot-swappable?

Yes, the Triconex 3005 is designed for hot-swapping, allowing for replacement during active system operation without compromising the safety integrity level of the controller.

What is the primary function of the TMR architecture in this module?

The Triple Modular Redundancy (TMR) architecture uses three independent processors to execute the same logic. A voting mechanism compares the results; if one processor deviates due to a fault, the system ignores the erroneous data and continues operation using the results from the two healthy processors, ensuring zero-downtime fault tolerance.
