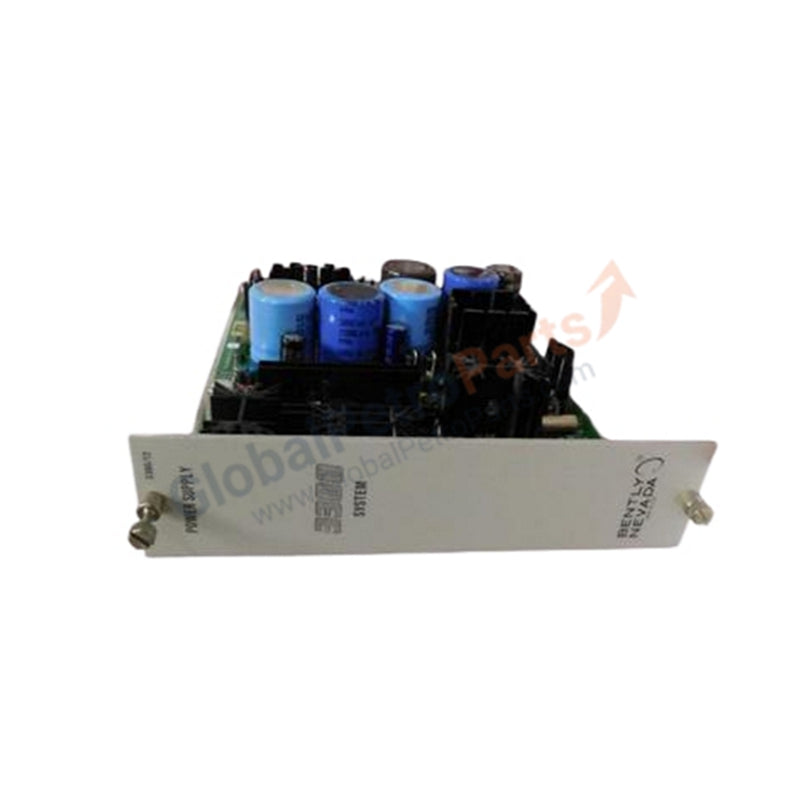

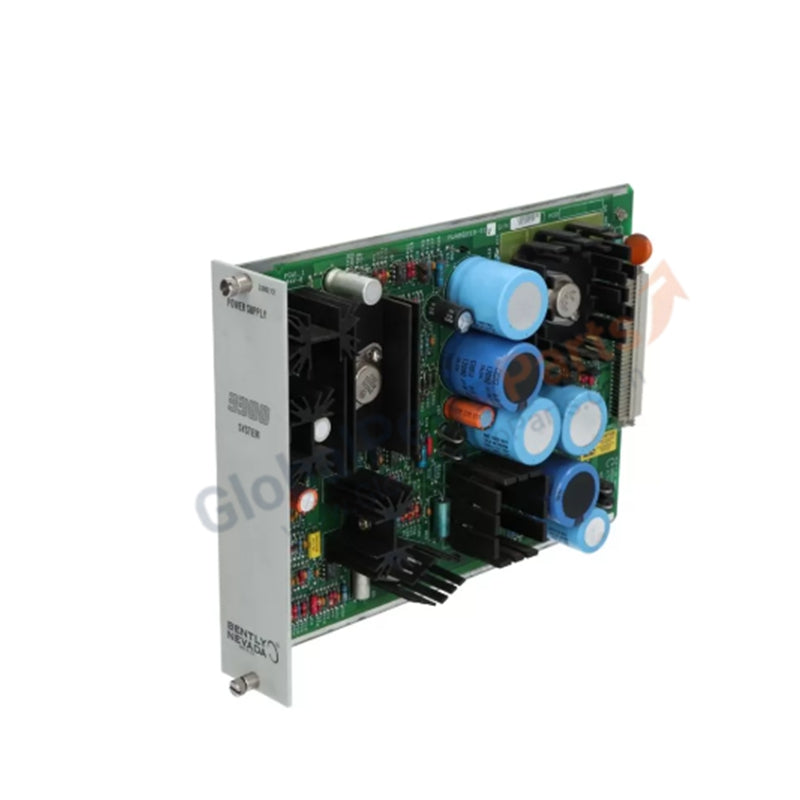

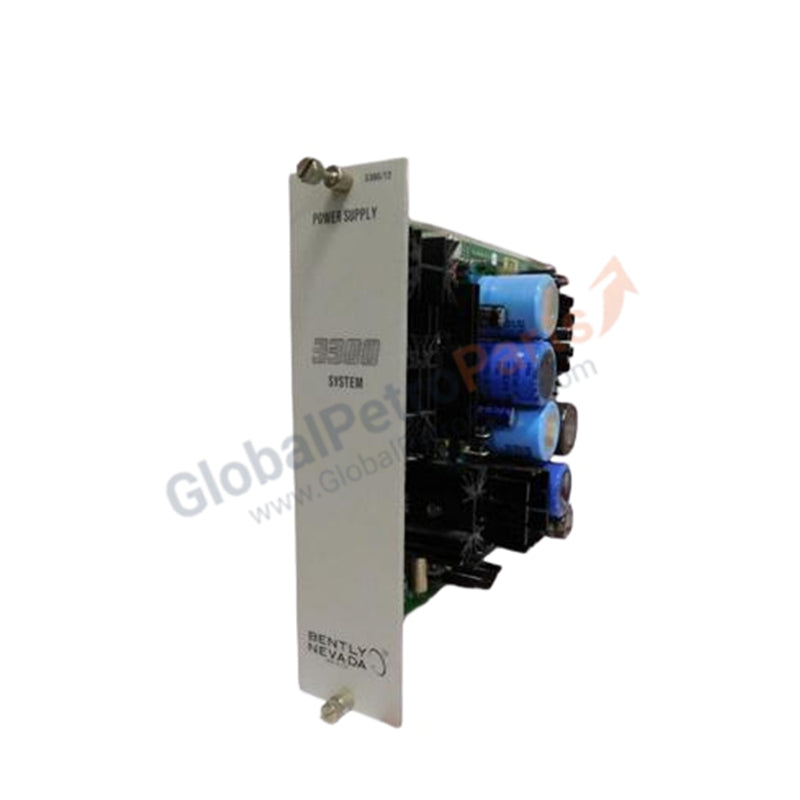

3300/12-02-20-00 Bently Nevada 3300 Series Power Supply Module

Product Description

The Bently Nevada 3300/12-02-20-00 is a dedicated power supply module engineered for the 3300 Series Monitoring System. It ensures stable and regulated power delivery to monitoring modules and associated transducers, supporting continuous operation in demanding industrial environments.

Technical Specifications

• Manufacturer: Bently Nevada (USA)

• Product Line: 3300 Series Machinery Protection

• Category: Power Supply Module

• Model / Part Number: 3300/12-02-20-00

• Input Voltage: 100–120 VAC or 200–240 VAC

• Output Voltage: 24 VDC

• Output Current: 20 A

• Input Frequency: 50/60 Hz

• Power Consumption: 1.5 W (nominal)

• Operating Temperature: -40 °C to +85 °C (-40 °F to +185 °F)

• Dimensions: 2.0 in × 8.0 in × 1.0 in (5.1 cm × 20.3 cm × 2.5 cm)

• Weight: 3 lbs (1.4 kg)

• Design: Compact rack-mountable module for integration into 3300 Series systems

Key Features

• Provides stable 24 VDC regulated output for monitoring modules

• Wide input voltage range for flexible installation

• Compact design optimized for rack-based monitoring systems

• Industrial-grade reliability with extended operating temperature range

• Supports continuous operation in harsh environments

Application Scenarios

The 3300/12-02-20-00 is widely used in turbines, compressors, and other rotating machinery systems requiring reliable power distribution. It ensures uninterrupted monitoring performance by delivering consistent power to vibration and position transducers.

FAQ

Q: What is the output current capacity of this module?  A: It delivers up to 20 A at 24 VDC.

Q: Can this power supply operate in extreme environments?  A: Yes, it supports -40 °C to +85 °C operating temperatures.

Q: What input voltage ranges are supported?  A: It accepts both 100–120 VAC and 200–240 VAC inputs at 50/60 Hz.

Q: How is the module installed?  A: It is designed for compact rack installation within the 3300 Series system.
