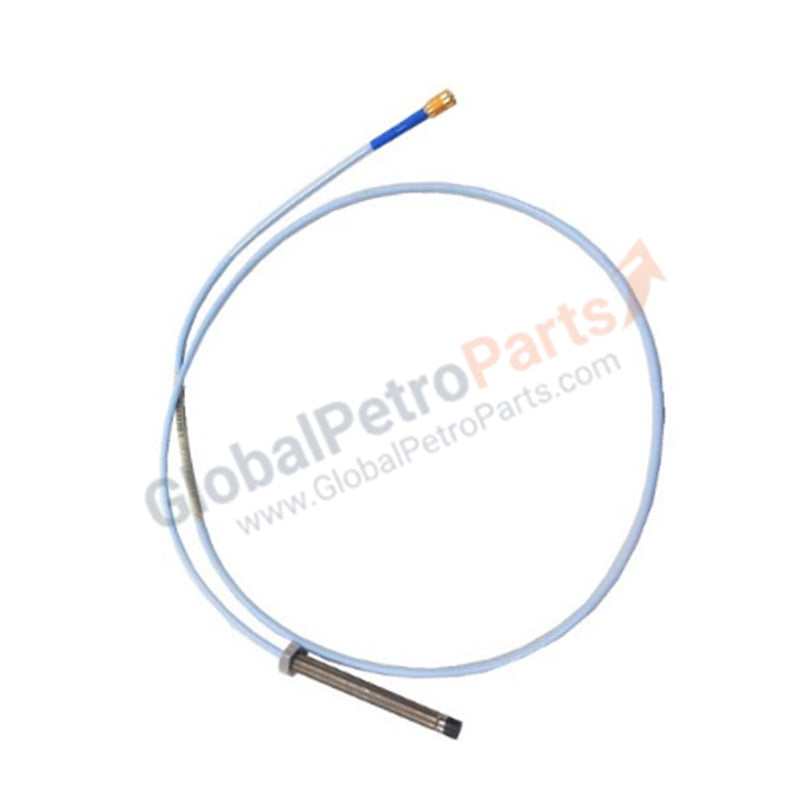

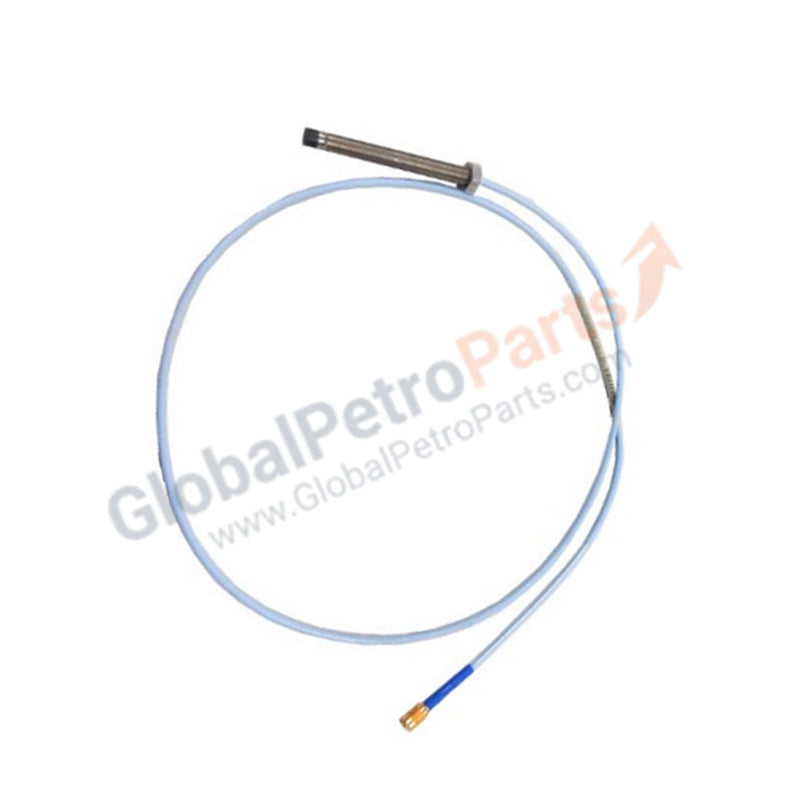

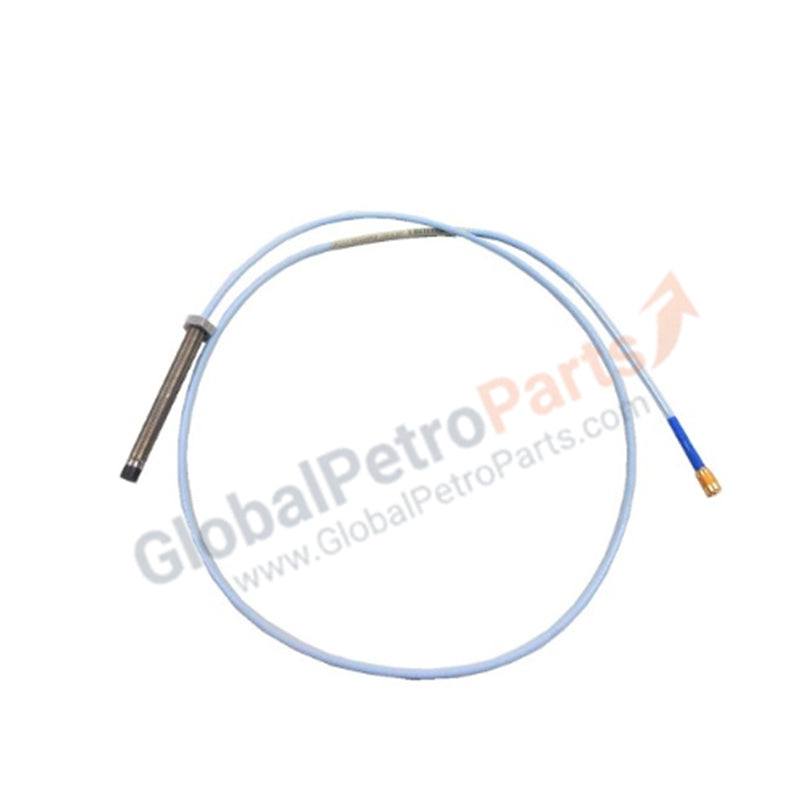

330101-00-40-05-02-00 | Bently Nevada | 3300 XL 8mm Proximity Probe

Product Overview

The 330101-00-40-05-02-00 functions as a high-precision eddy-current transducer within the Bently Nevada 3300 XL ecosystem. This 100% Brand New original 8mm probe provides non-contacting measurement of radial vibration, axial thrust, and shaft position for fluid-film bearing machines. Manufactured in the U.S.A., it delivers the industry-standard 200 mV/mil scale factor required for critical machinery protection. This specific configuration features an extended 4.0-inch fully threaded case and a short 0.5-meter integral cable, making it the ideal choice for internal bearing housing installations where space for cable management is limited.

Part Number Breakdown

The 330101 ordering matrix defines the specific mechanical footprint and electrical options for the 3300 XL series.

• 330101: 3300 XL 8mm Proximity Probe (3/8-24 UNF thread, without armor)

• -00: Unthreaded Length (0.0 inches)

• -40: Overall Case Length (4.0 inches / 101.6 mm)

• -05: Total Length (0.5 meter / 1.6 feet)

• -02: Connector/Cable Type (Miniature coaxial ClickLoc™ connector, standard cable)

• -00: Agency Approval (Not required)

Technical Specifications

The 330101-00-40-05-02-00 utilizes high-grade materials to ensure signal linearity and mechanical resilience in aggressive industrial environments.

Engineering Advantages

• Extended Reach for Deep Access: The 4.0-inch threaded case enables the probe to reach internal shaft targets through thick machine casings or complex bearing housings. This long-reach design eliminates the need for custom mounting adapters, ensuring a direct and stable installation.

• Optimized Internal Routing: The 0.5-meter (1.6 feet) integral cable facilitates clean cable management inside the machine casing. This short length minimizes excess wire bulk, reducing the risk of cable snagging or vibration-induced wear within the oil-rich environment of the bearing housing.

• Vibration-Proof ClickLoc™ Connection: The ClickLoc™ miniature coaxial connector features a positive mechanical lock. This design prevents the cable from backing out due to high-frequency machinery vibrations, a common cause of "intermittent signal" or "Not OK" status in standard friction-fit systems.

• Superior Signal-to-Noise Ratio: High-performance cable shielding rejects electromagnetic interference (EMI) from nearby high-voltage motors or generators. This ensures that the vibration waveforms remain deterministic and clean, providing reliable data for the 3500 Monitoring System.

FAQs

• Is this 330101-00-40-05-02-00 probe a brand-new unit?

  Yes. We supply this probe exclusively as 100% Brand New original factory stock. Each unit arrives in its original Bently Nevada protective packaging with all factory inspection markings to guarantee authenticity and performance.

• Which extension cable should I pair with this 0.5-meter probe?

  To achieve a standard 5.0-meter system length, you must pair this 0.5-meter probe with a 4.5-meter 3300 XL extension cable. For a 9.0-meter system, pair it with an 8.5-meter extension cable. Ensure the total electrical length matches the calibration of your Proximitor sensor.

• How do I set the correct mechanical gap during installation?

  Adjust the 3/8-24 UNF threading while monitoring the DC Gap voltage at the Proximitor output. For a standard system, a voltage reading of approximately -10.0 VDC indicates the center of the linear range.

• Can this probe operate in high-temperature oil environments?

  The 3300 XL 8mm probe utilizes PPS and stainless steel materials rated for continuous operation up to +177°C. It functions reliably even when submerged or splashed by hot lubricating oils within turbine bearing pedestals.
