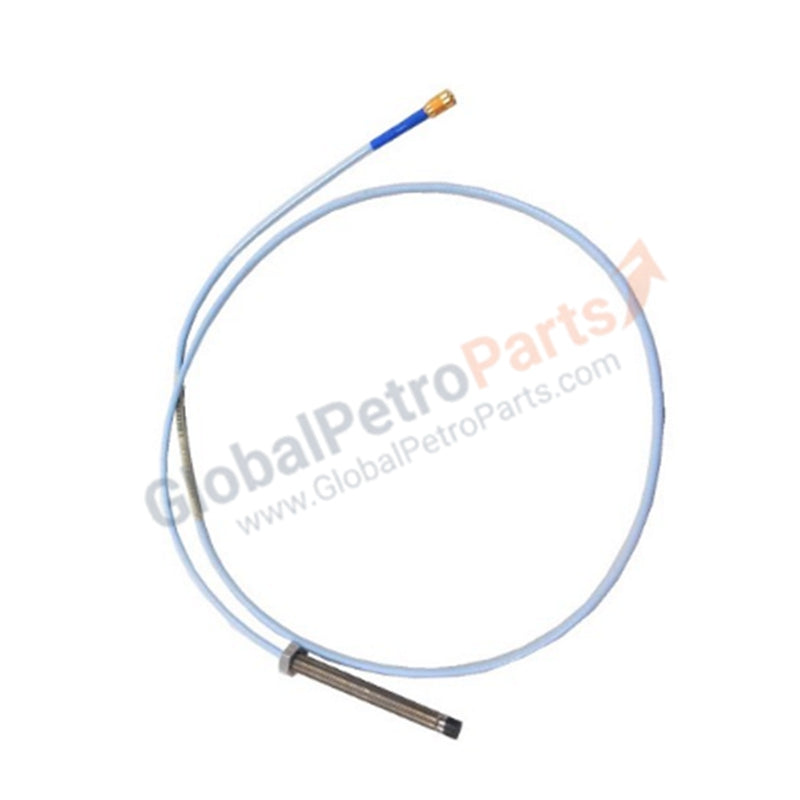

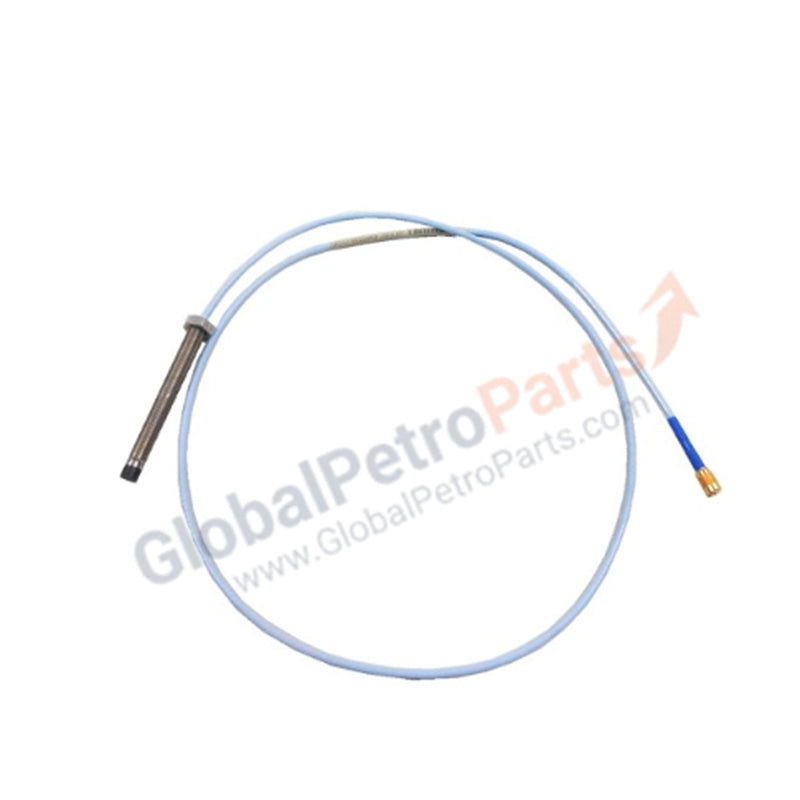

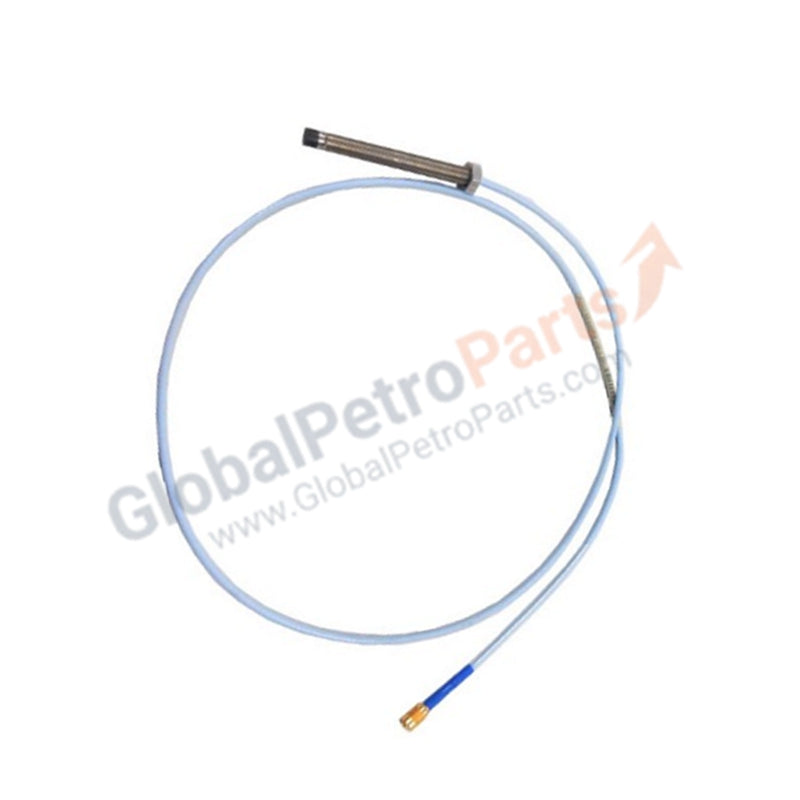

330103-00-03-10-01-00 | Bently Nevada 3300 XL 8 mm Proximity Probe

Product Overview

The Bently Nevada 330103-00-03-10-01-00 functions as a high-precision transducer for non-contacting shaft measurements in critical rotating machinery. As part of the 3300 XL 8 mm series, this probe converts eddy current loss into a voltage signal to monitor radial vibration, axial thrust, and speed. We supply this unit as 100% Brand New and Original, manufactured in the U.S.A., and delivered in factory-sealed packaging to ensure maximum asset protection and system integrity.

Part Number Breakdown

The 330103 series utilizes a metric M10 x 1 thread configuration. The specific options for this model include:

Technical Specifications

• Thread Type: Metric M10 x 1

• Probe Tip Material: Polyphenylene sulfide (PPS)

• Case Material: AISI 303 or 304 Stainless Steel (SST)

• Linear Range: 2.0 mm (80 mils) starting at approximately 0.25 mm (10 mils) from the tip

• Scale Factor: 7.87 V/mm (200 mV/mil)

• Connector: Gold-plated Miniature Coaxial ClickLoc™

• Shipping Weight: 1.5 kg

• Origin: Made in U.S.A.

Engineering Advantages

• Superior Environmental Sealing: The PPS tip and stainless steel body resist moisture and oil ingress, preventing signal degradation in saturated turbine environments.

• Connector Protection: The 01 Option includes a specialized connector protector. This hardware prevents the ClickLoc™ mechanism from loosening due to machine vibration and shields the gold plating from environmental contaminants.

• Streamlined Metric Integration: The M10 x 1 metric threading allows direct installation into international machinery housings without requiring bulky adapters or re-tapping, maintaining a compact footprint.

• Signal Consistency: The advanced internal design minimizes the "skin effect" error, ensuring the probe provides a stable, linear output across a wide temperature range from -51 °C to +177 °C.

FAQs

• Does this probe require a specific extension cable?

  Yes. To maintain the 3300 XL system's calibrated 5.0 or 9.0-meter electrical length, you must pair this 1.0-meter probe with the appropriate 3300 XL extension cable and Proximitor® sensor.

• Can I install this probe in tight clearance areas?

  With an overall case length of only 30 mm and zero unthreaded length, this model excels in shallow-depth ports where internal machine space is limited.

• What is the benefit of the ClickLoc™ connector?

  The ClickLoc™ design provides a tactile "click" upon connection, confirming a secure fit. This prevents the common problem of intermittent signals caused by hand-tightened connectors backing out during operation.

• Is this product a genuine Bently Nevada component?

  We guarantee this is a 100% original Bently Nevada product. It arrives in the original factory box with the "Made in U.S.A." designation and carries a full 12-month factory warranty.
