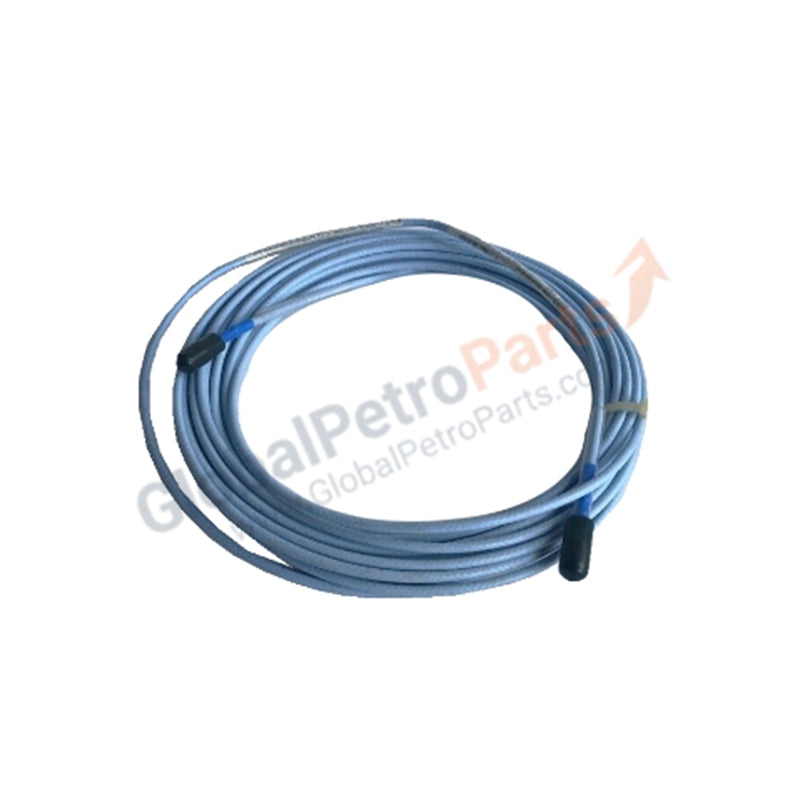

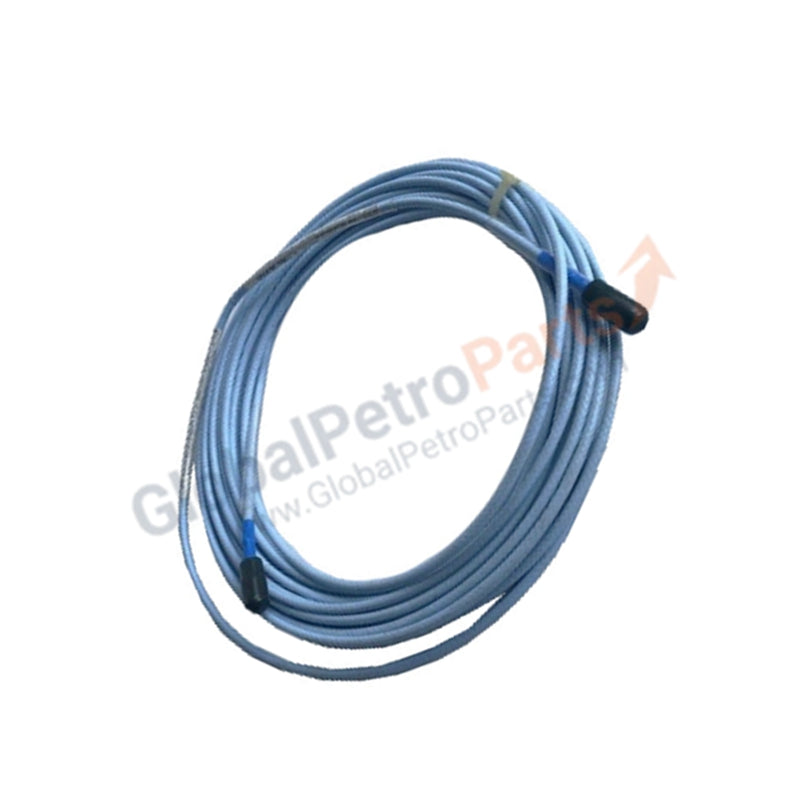

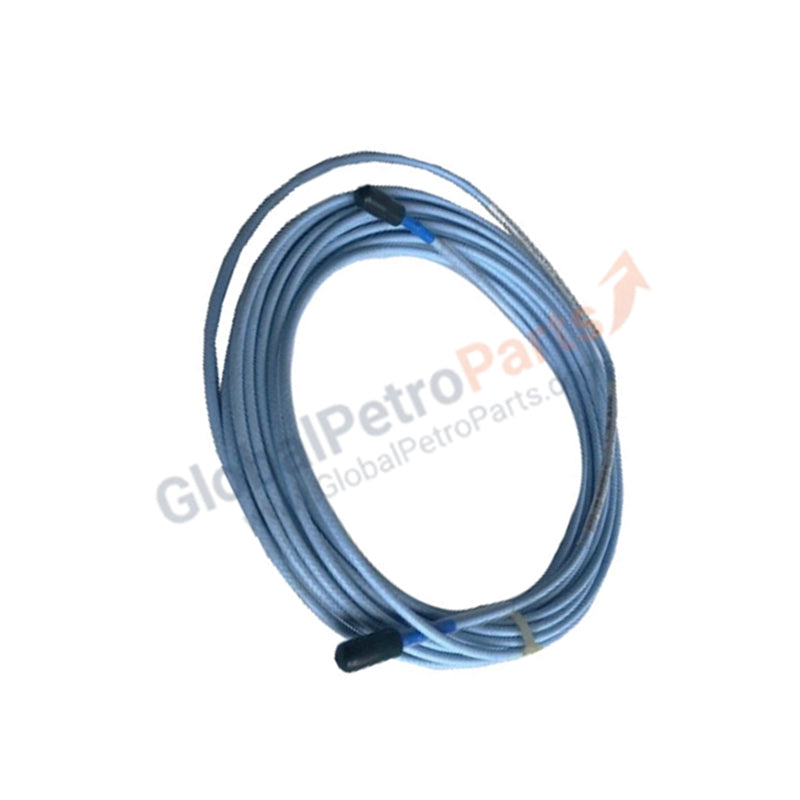

330171-12-41-10-02-05 3300 5 mm Proximity Probe | Bently Nevada

Configured for displacement measurement in rotating machinery, the Bently Nevada 330171-12-41-10-02-05 (330171-12-41-10-02-05 Proximity Probe) provides direct physical signal transduction for vibration and position monitoring.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 330171-12-41-10-02-05 transducer utilizes the eddy-current principle for displacement sensing, requiring calibration to a nominal scale factor of 7.87 V/mm (200 mV/mil). During commissioning, the gap voltage must be validated against the -10 VDC target midpoint to ensure operation within the linear range. Precise gap adjustment is necessary for monitoring rotor dynamics, including shaft centerline positioning and orbital vibration. Proper physical spacing between adjacent probes must be maintained to provide effective cross-talk suppression and ensure signal integrity in multi-channel monitoring systems.

Frequently Asked Questions

Q: Is the 1.0 metre system length field-adjustable?

A: No. The 330171 system is factory-calibrated as a matched set including the probe, extension cable, and Proximitor sensor. Field-modifying the cable length alters the electrical impedance and resonant frequency, which will introduce significant measurement errors.

Q: Are the ClickLoc connectors field-repairable?

A: No. The ClickLoc mechanism is factory-swaged. Any damage to the connector requires replacement of the entire probe or cable assembly to ensure signal reliability and prevent impedance mismatches.

Field Installation Guidelines

• Mounting: Secure the probe in a rigid, non-conductive bracket. Verify that the probe tip is perpendicular to the shaft surface to prevent measurement skew.
• Grounding: The probe case is electrically conductive; verify the mounting bracket is bonded to the machine ground to maintain electromagnetic compatibility (EMC).
• Connector Integrity: Ensure mating surfaces are clean and free of contamination before connecting. Use the ClickLoc mechanism to ensure the connector is fully seated.
• Cable Routing: Route coaxial cables through dedicated metallic conduit, maintaining physical separation from high-voltage AC lines to prevent induced noise on the output signal.
