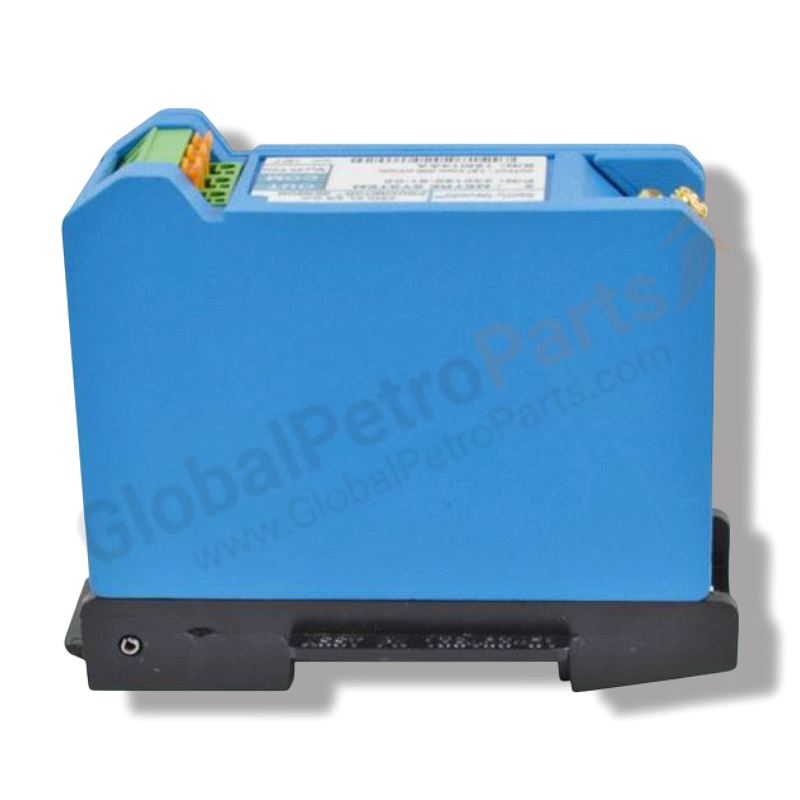

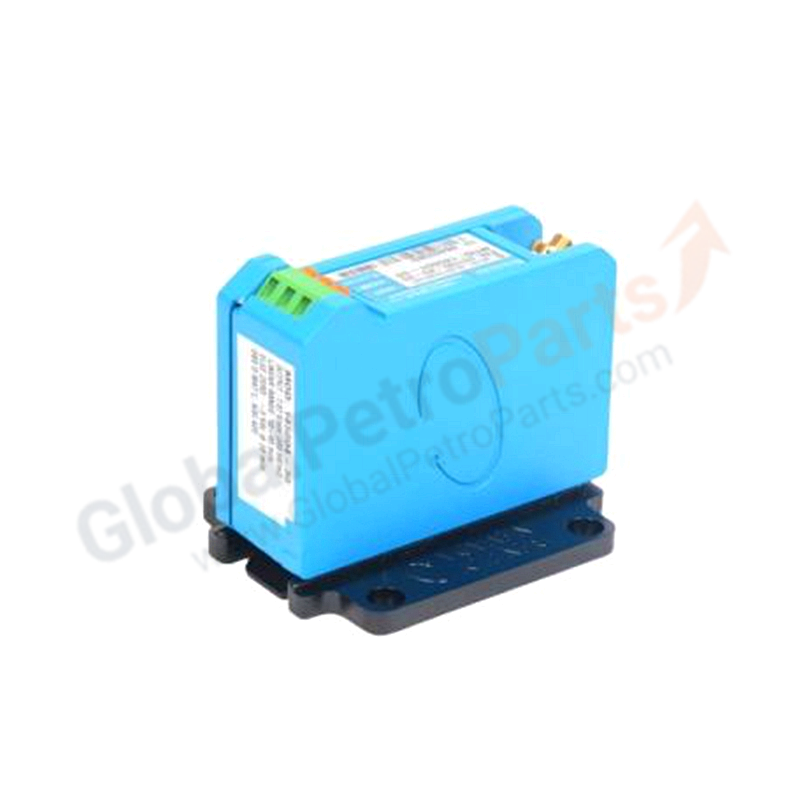

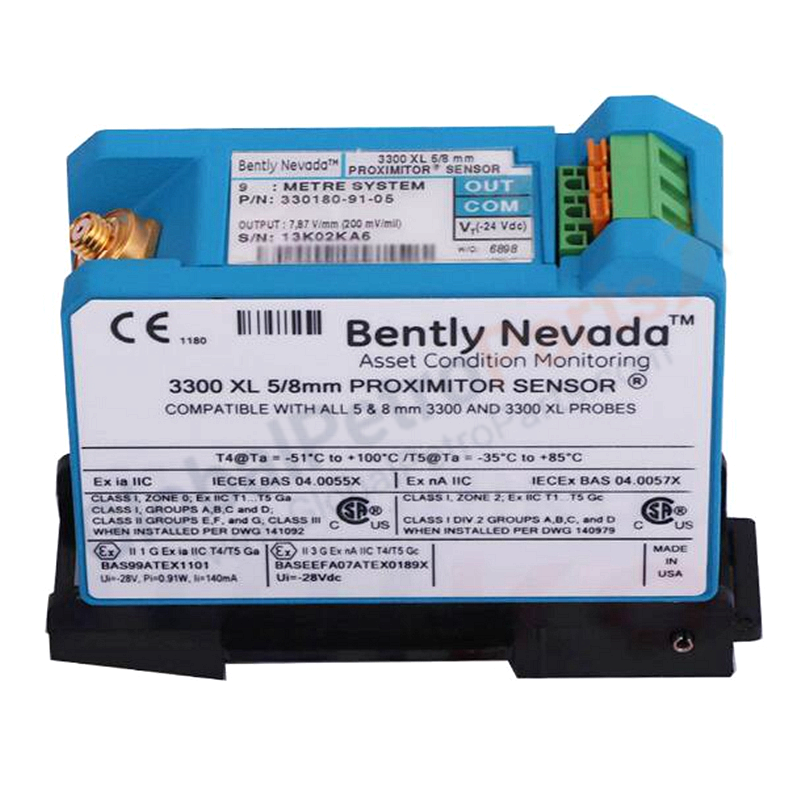

330180-50-00 | Bently Nevada | Proximitor Sensor

Product Summary

The Bently Nevada 330180-50-00 is a 3300 XL Proximitor Sensor engineered for non-contact proximity and vibration measurements. Operating on eddy current principles, it processes signals from a compatible proximity probe to output a precise voltage directly proportional to the distance between the probe tip and the observed target surface.

Core Specifications

• Model Number: 330180-50-00
• Sensor Type: 3300 XL Proximitor Sensor
• Power Input Range: -17.5 VDC to -26 VDC (-24 VDC nominal)
• Current Consumption: 12 mA maximum
• Output Resistance: 50 Ω
• System Length Configuration: 5.0 meters (16.4 feet)
• Agency Approvals: Option 00 (No Hazardous Area Approvals / Standard Uncertified Version)

Performance & Signal Characteristics

• Scale Factor: 7.87 V/mm (200 mV/mil) nominal Incremental Scale Factor (ISF)
• Supply Voltage Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage
• Frequency Response: 0 to 10 kHz (+0, -3 dB)
• Target Calibration: Calibrated for standard AISI 4140 steel targets
• Signal Integrity: Standard RFI/EMI immunity configured for electrically clean control environments

Hardware Integration & Deployment

• Physical Design: Enclosed within a corrosion-resistant A308 aluminum housing
• Mounting Support: Engineered for panel mount plates or high-density DIN-rail installation via SpringLoc terminal strips
• Connection Interfaces: Utilizes ClickLoc miniature coaxial connectors
• System Interchangeability: Completely interchangeable with compatible standard 3300-series probes and 75 Ω triaxial FEP extension cables calibrated for a 5.0-meter total loop length

Environmental Limits

• Operating Temperature: -52°C to +100°C (-62°F to +212°F)
• Storage Temperature Range: -52°C to +105°C (-62°F to +221°F)
• Humidity Resistance: Sealed case structure limits Average Scale Factor (ASF) shifts to under 3% at 93% relative humidity
