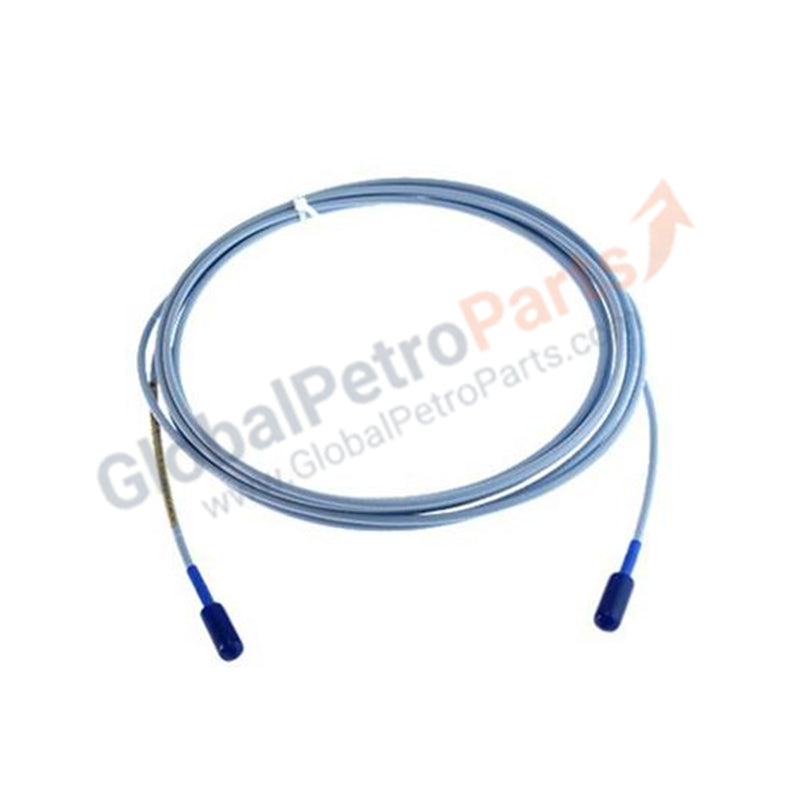

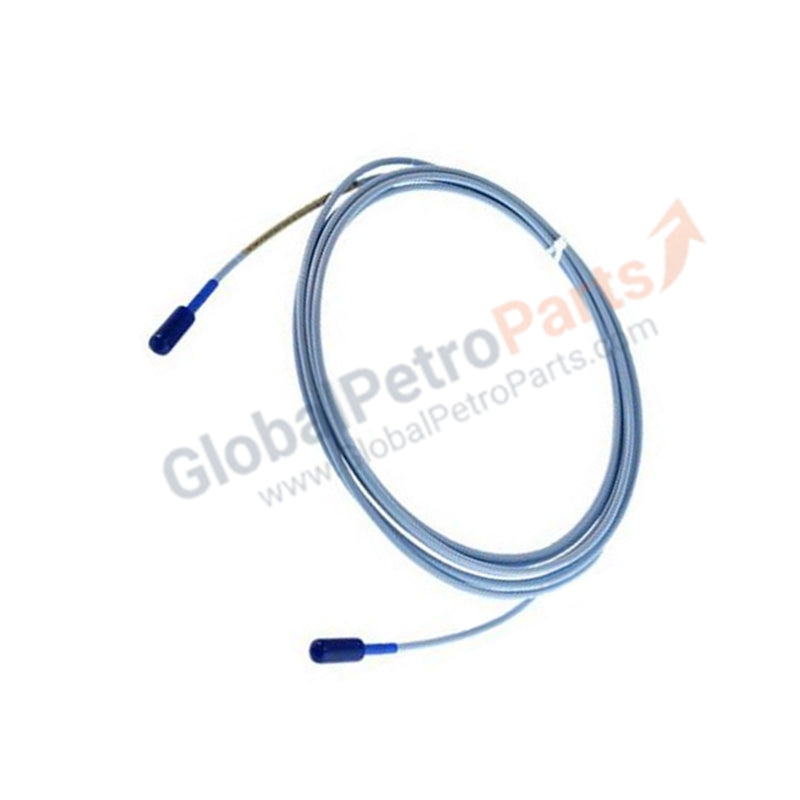

330930-060-00-00 3300 XL Standard Extension Cable | Bently Nevada

The Bently Nevada 330930-060-00-00, also cataloged as the 3300 XL Extension Cable, operates as a dedicated hardware component for signal transmission between proximity probes and monitoring instrumentation within Bently Nevada machinery protection systems.

Hardware Specifications

Eddy-Current Probe Scaling and Signal Integrity

The performance of the 3300 XL system relies on strict adherence to impedance matching across the transducer chain. The 330930-060-00-00 extension cable is designed to maintain consistent electrical properties, preventing signal distortion that could compromise eddy-current probe scaling. When calibrating the monitoring system, the total length of the transducer system—including the probe lead and the extension cable—must be accounted for to ensure the gap voltage output targets remain within the -10 VDC operational range. Signal串扰 (cross-talk) suppression is achieved through the integrated shielding design, which must be maintained during installation to prevent extraneous noise in the low-level signal path.

Frequently Asked Questions

Q: Can this 6.0 m extension cable be used with different probe lead lengths?

A: Yes, but the system must be calibrated for the total length of the transducer chain. Ensure that the total combined length does not exceed the maximum specified limits for the 3300 XL system to maintain signal linearity.

Q: Are there specific installation requirements to ensure signal integrity?

A: Yes. The coaxial cable should be routed away from high-current power cables and high-frequency interference sources. Ensure that all connectors are kept clean and free of moisture or oil to maintain stable gap voltage readings.

Field Installation Guidelines

• Handling: Do not pull the cable with excessive force, as this can damage the internal center conductor or the coaxial dielectric, altering the electrical impedance.
• Connections: Connections must be hand-tightened. Avoid using metallic tools that may scratch the protective coatings or deform the connector threads.
• Shielding: Ensure that the cable shield is not grounded at any point other than the designated monitor terminal to prevent ground loops.
• Protection: In environments with high vibration or physical hazards, ensure that the cable is properly supported using cable ties or conduit, even if the specific model ordered (00 option) does not include stainless steel armor.
