330930-060-01-CN | Bently Nevada | 3300 XL Standard Extension Cable

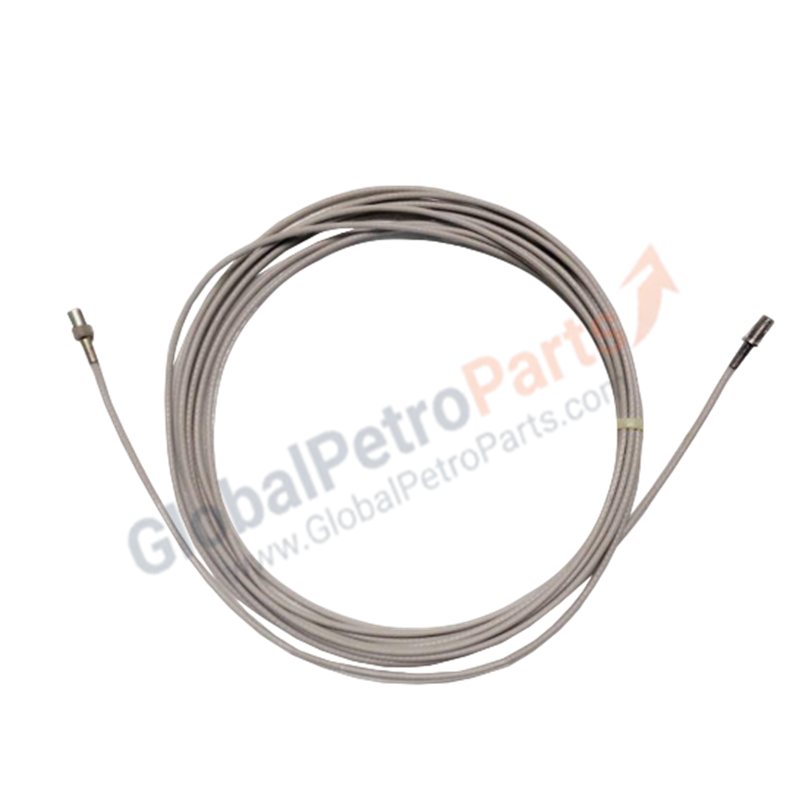

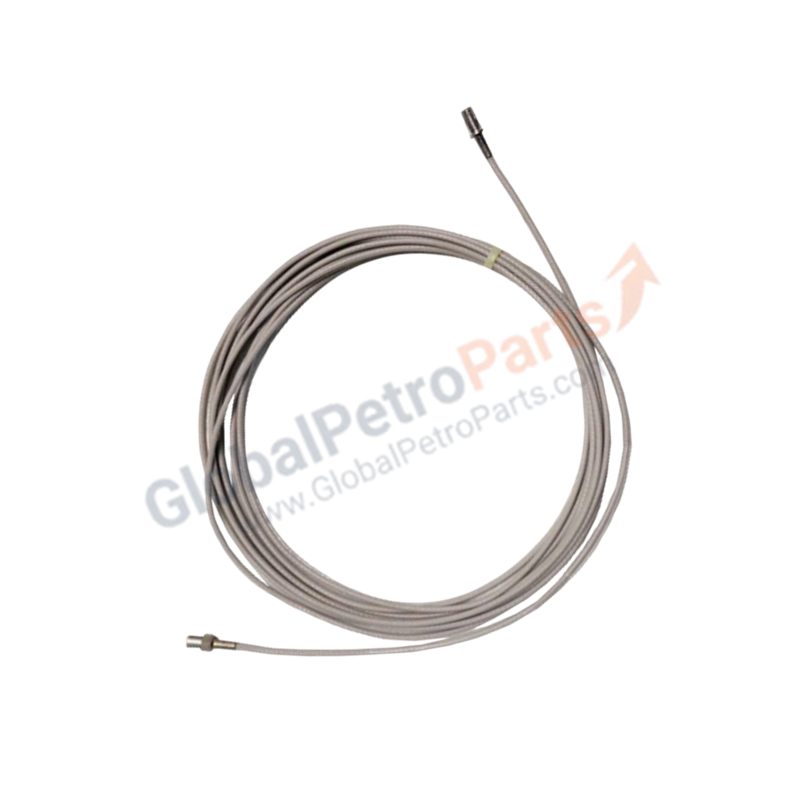

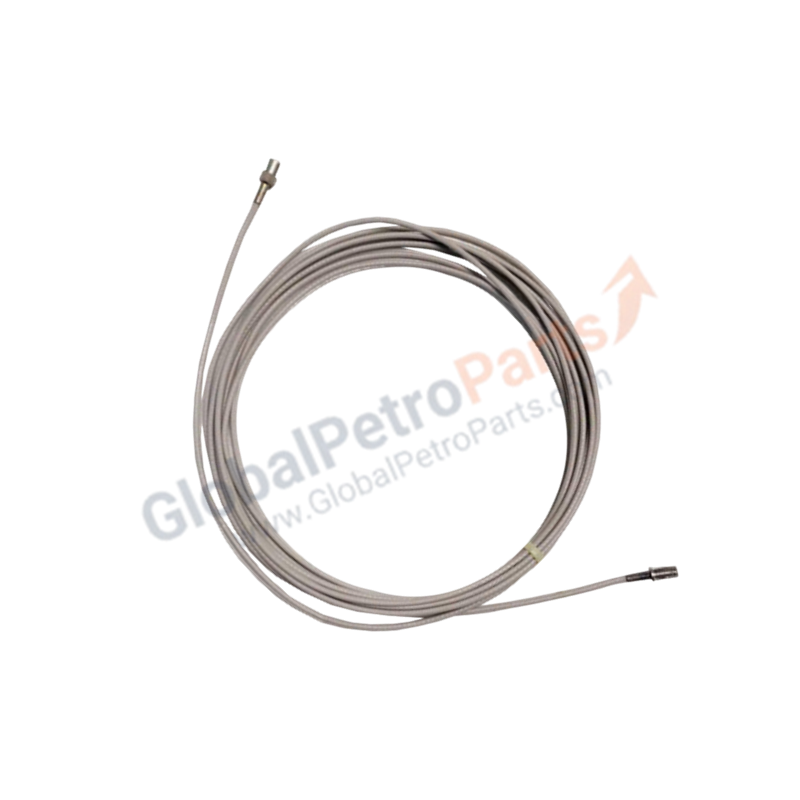

The Bently Nevada 330930-060-01-CN, also cataloged as the 3300 XL Extension Cable, operates as a dedicated hardware component for signal transmission between proximity probes and monitoring instrumentation within Bently Nevada machinery protection systems.

Hardware Specifications

Rotor Dynamics and Gap Voltage Validation

The performance of the 3300 XL transducer chain is contingent upon strict impedance matching to maintain the integrity of the eddy-current probe scaling. This extension cable is engineered with a high-durability FEP jacket and stainless steel armor to provide mechanical protection while maintaining the electrical characteristics required for accurate rotor position and vibration data. Operators must perform gap voltage validation during installation to confirm that the output matches the -10 VDC target range at the required probe air-gap. Deviations in the transducer chain often correlate to connector contamination or excessive cable run distances; thus, ensuring signal continuity without degradation is necessary for consistent rotor dynamics monitoring.

Frequently Asked Questions

Q: Can the stainless steel armor be removed from the 330930-060-01-CN for easier routing?

A: No. The armor is an integral part of the cable assembly. Removing or damaging the armor exposes the coaxial core to mechanical stress and EMI, which will compromise signal integrity and may lead to non-linear transducer output.

Q: Is it permissible to use this cable with different probe models within the 3300 XL series?

A: Compatibility depends on the system calibration requirements. The transducer system (probe, extension cable, and Proximitor sensor) must be calibrated as a matched set. Mixing components without recalibration will result in invalid gap voltage readings and inaccurate monitoring data.

Field Installation Guidelines

• Handling: Avoid exceeding the minimum bend radius of 25 mm. Sharp bends can permanently deform the coaxial geometry and alter the cable capacitance.
• Connections: Ensure all coaxial connectors are tightened by hand until metal-to-metal contact is achieved. The use of tools can over-tighten and damage the gold-plated pins.
• Shielding: Maintain the continuity of the cable shield throughout the entire run. Ground the system only at the monitor end to prevent the formation of ground loops.
• Routing: Keep the cable run at least 300 mm away from high-voltage AC cables or switching components to reduce the influence of electromagnetic noise on the low-level signal path.
