330930-065-02-00 | Bently Nevada | Extension Cable

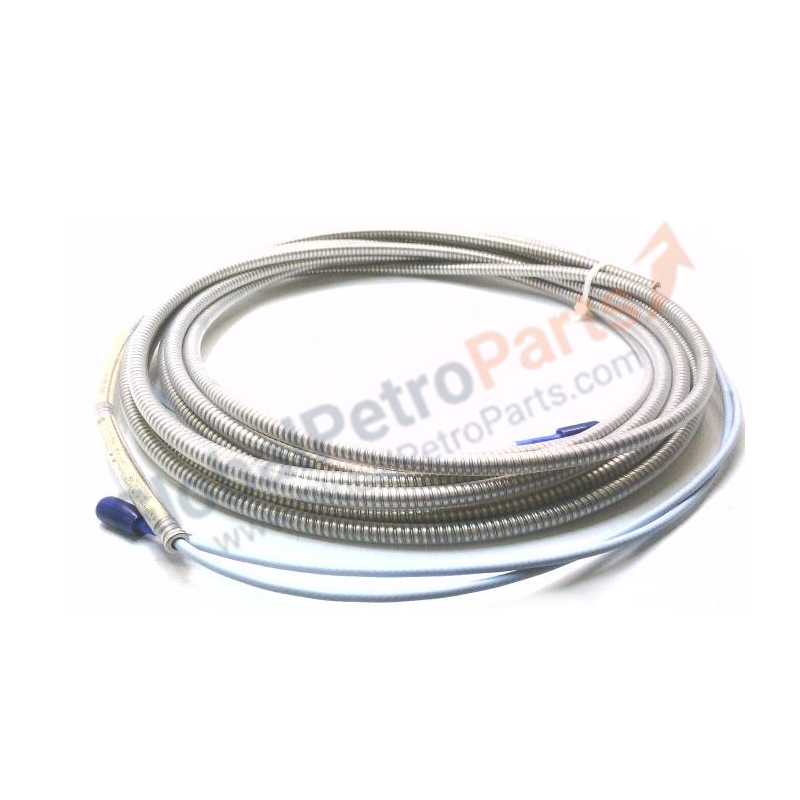

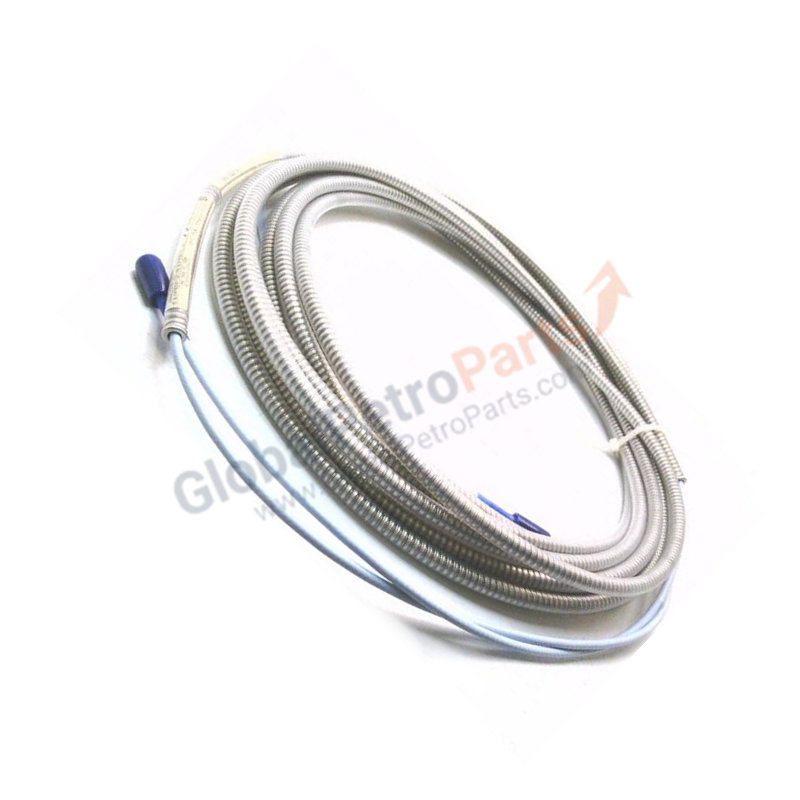

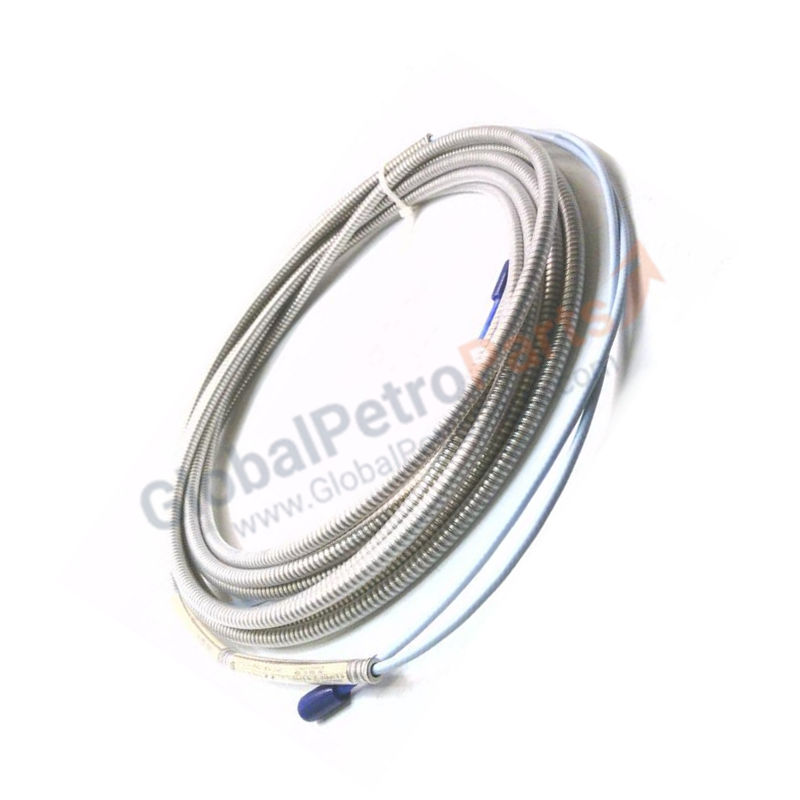

Configured for signal transmission in Bently Nevada 3300 XL NSv machinery protection systems, the Bently Nevada 330930-065-02-00 (3300 XL NSv Extension Cable) provides direct physical and electrical execution within the eddy-current transducer chain.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 3300 XL NSv system necessitates strict adherence to impedance matching to maintain the integrity of eddy-current probe scaling. The 330930-065-02-00 is engineered to support the specific carrier frequency required by the Proximitor sensor. During setup, gap voltage validation at -10 VDC targets must be confirmed at the monitor terminal to ensure linear response. Proper installation requires cross-talk suppression by maintaining adequate separation from other high-frequency signal paths. Deviations in these electrical parameters can lead to distorted rotor dynamics data, rendering the vibration measurements non-representative of actual shaft displacement.

Frequently Asked Questions

Q: Can the cable be field-shortened to match a specific installation distance?

A: No. Modifying the cable length alters the electrical capacitance and system impedance, which invalidates the factory calibration and degrades the accuracy of the transducer output.

Q: How does the integrated protective armor affect the minimum bend radius?

A: The stainless steel armor provides mechanical durability, but the internal coaxial core remains sensitive to stress. Maintain a minimum bend radius of at least 25 mm to avoid permanent deformation of the cable dielectric and center conductor.

Field Installation Guidelines

• Routing: Route the cable through dedicated instrument conduit or trays. Avoid coiling excess cable in a manner that creates inductive loops near high-power cabling.
• Connections: Use only hand-tightening methods for the ClickLoc connectors. The use of mechanical pliers or wrenches may strip threads or damage the internal pins, resulting in high-impedance connections and signal noise.
• Grounding: Ensure the shield remains continuous from the probe to the monitor. The system should be grounded at the monitor terminal only to prevent ground loops that interfere with low-level signal acquisition.
• Inspection: Prior to installation, inspect the FEP jacket for cuts or abrasions that could compromise the environmental rating of the armor.
