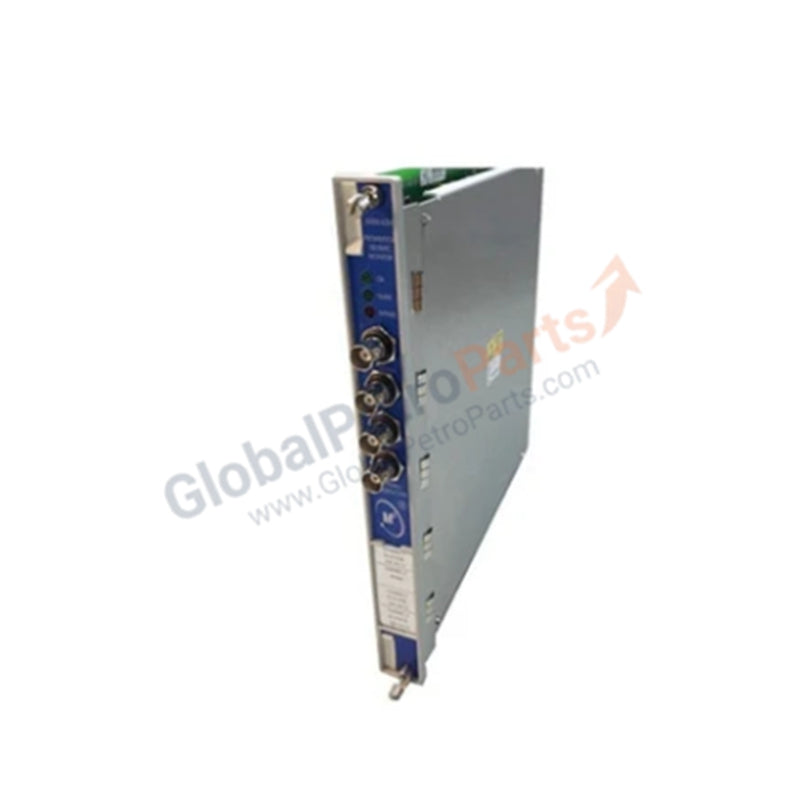

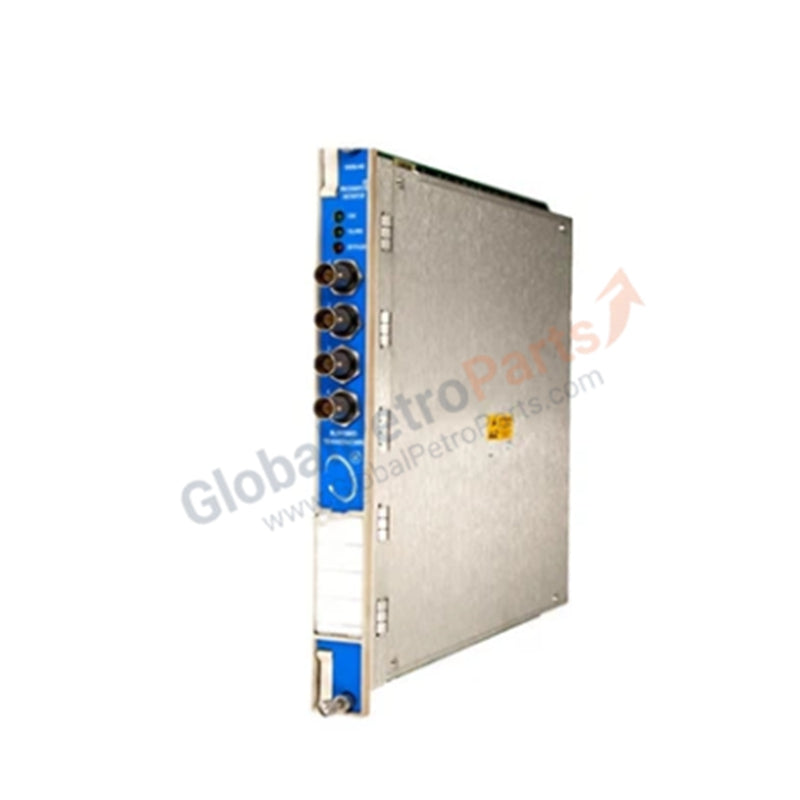

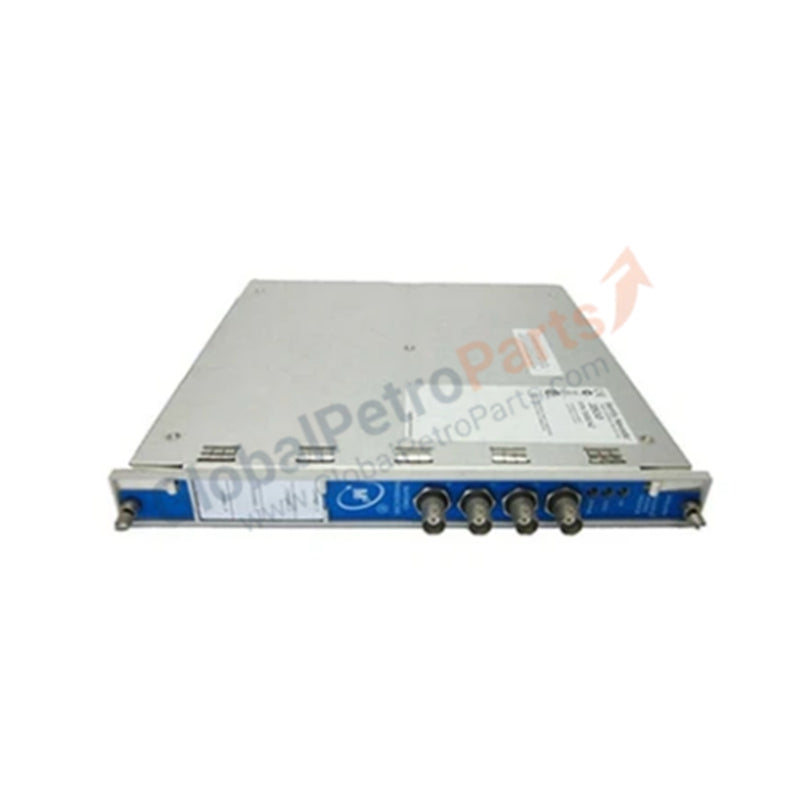

3500/64M 140734-05 | Bently Nevada Dynamic Pressure Monitoring Module

Overview:
The Bently Nevada 3500/64M 140734-05 module is a four-channel dynamic pressure monitoring unit designed for precise measurement and control of high-temperature industrial machinery. It integrates seamlessly with the 3500 Series monitoring system and other compatible setups.

Specifications:

• Manufacturer: Bently Nevada (GE)

• Model: 3500/64M 140734-05

• Series: 3500

• Type: Dynamic Pressure Monitor

• Origin: USA

• Channels: 4 independent input channels

• Sensor Compatibility: High-temperature pressure transducers

• Output: Bandpass dynamic pressure signal per channel, recorder outputs for system integration

• Alarm: Configurable thresholds per channel

• Indicators: Front panel LEDs including OK, TX/RX, and Bypass

• Dimensions: Rack-mounted form factor (standard 3500 Series module)

• Weight: Approx. 0.8–1.0 kg (typical)

• Warranty: One-year manufacturer warranty

Features:

• Multi-Channel Monitoring: Supports four simultaneous dynamic pressure measurements for real-time analysis.

• High-Temperature Inputs: Accepts signals from elevated temperature pressure transducers without signal degradation.

• Configurable Alarms: User-defined alarm setpoints allow precise monitoring of operational limits.

• Recorder Outputs: Provides analog output for control system integration and data logging.

• Visual Indicators: Front panel LEDs allow immediate status checks for module operation, communication, and bypass conditions.

• System Compatibility: Fully compatible with 3500 Series racks and other supported monitoring systems.

Applications:
Ideal for monitoring dynamic pressures in turbines, compressors, and other high-temperature machinery in oil, gas, and power industries.

FAQ:
Q: Can this module monitor more than four channels?
A: No, the 3500/64M 140734-05 supports four independent channels. For additional points, use multiple modules.

Q: Is it compatible with older 3500 Series racks?
A: Yes, it integrates with 3500 Series monitoring systems and selected compatible modules.
