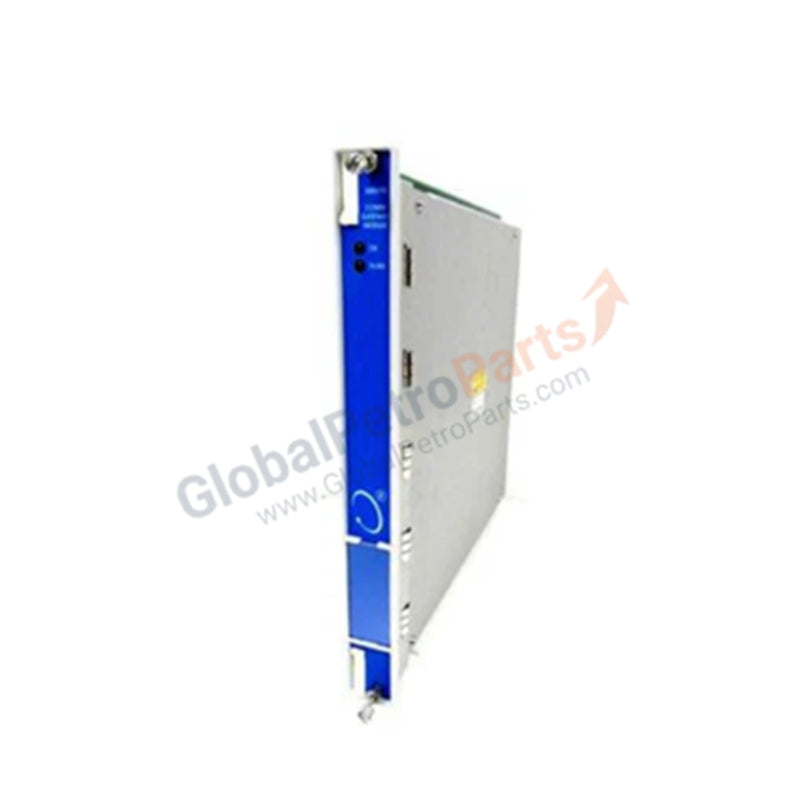

3500/65 184469-01 | Bently Nevada 16-Channel RTD/TC Temperature Monitor

Overview:
The Bently Nevada 3500/65 184469-01 is a 16-channel temperature monitoring module engineered for industrial machinery protection. It accepts both RTD and isolated tip thermocouple (TC) inputs and supports triple modular redundancy (TMR) for high-reliability operations.

Specifications:

• Manufacturer: Bently Nevada

• Model: 3500/65 184469-01

• Product Type: 16-Channel Temperature Monitor Module

• Channels: 16 RTD/TC input channels

• Input Compatibility:

• 100Ω platinum (α=0.00385): -200°C to +850°C

• 100Ω platinum (α=0.00392): -200°C to +700°C

• 120Ω nickel: -80°C to +260°C

• 10Ω copper: -100°C to +260°C

• Alarm Configuration: Software-configurable setpoints and delay timers

• Status Indicators: Front-panel LEDs (OK, TX/RX, Bypass)

• TMR Support: Triple Modular Redundant operation for critical applications

• Mounting: Rack-mounted in 3500 Series system

• Country of Origin: USA

Features:

• Multi-Sensor Input: Accepts multiple RTD and TC types for flexible deployment

• High Reliability: TMR configuration reduces single-point failures

• Configurable Alarms: Software-managed thresholds for early fault detection

• User Feedback: Front-panel LEDs provide operational status at a glance

• Industrial Design: Built to endure harsh operating environments

Applications:
Used widely in process monitoring, machinery protection, power generation, oil and gas, and chemical processing facilities.

FAQ:
Q: What types of sensors can be used with this module?
A: The 3500/65 184469-01 supports 100Ω platinum, 120Ω nickel, and 10Ω copper RTDs, as well as isolated tip thermocouples.

Q: Can this module be integrated with TMR configurations?
A: Yes, it supports Triple Modular Redundancy for increased reliability in critical systems.
