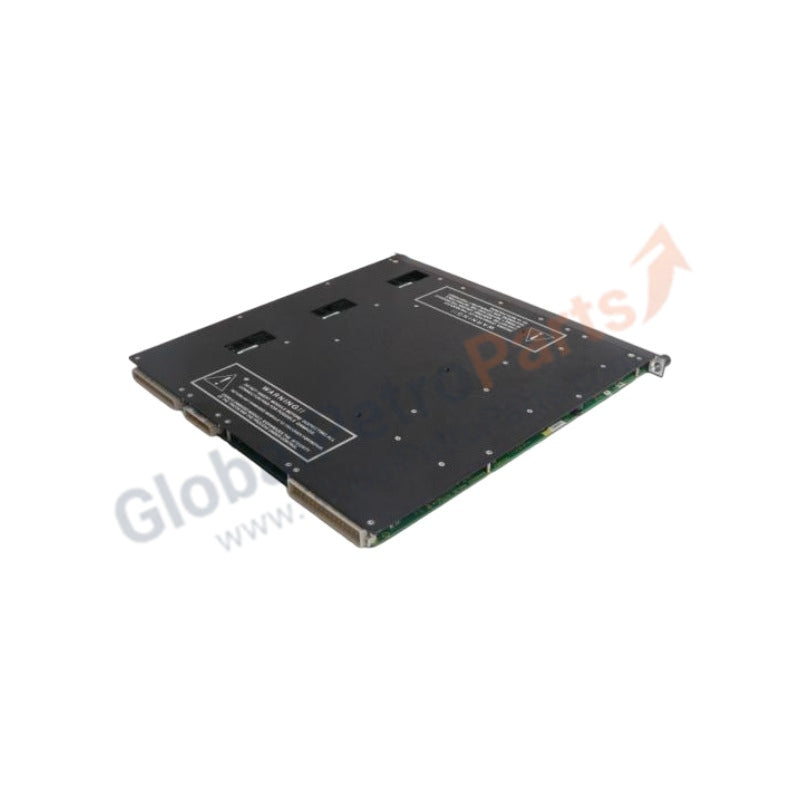

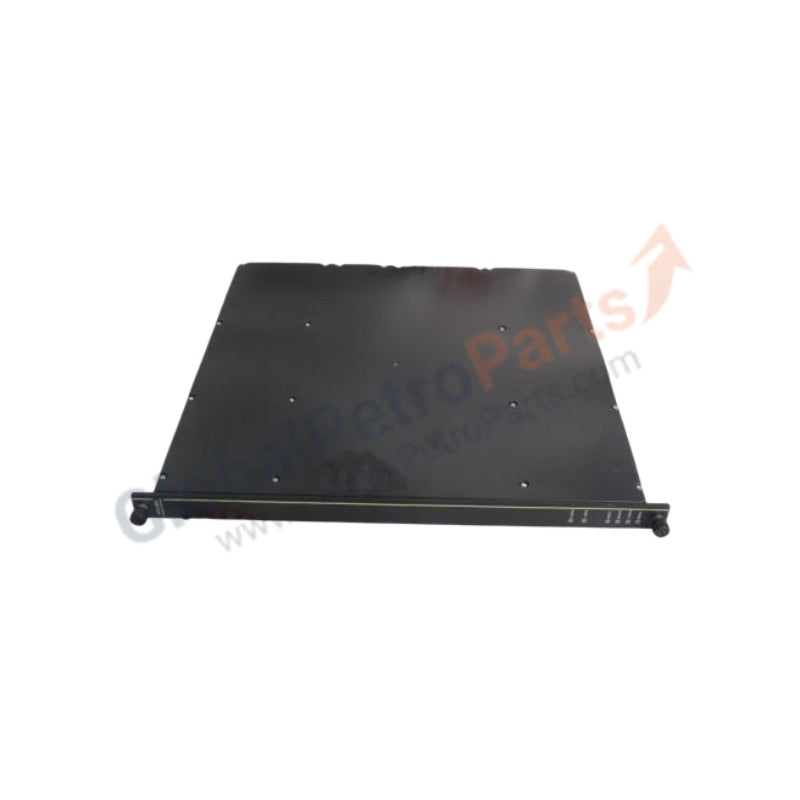

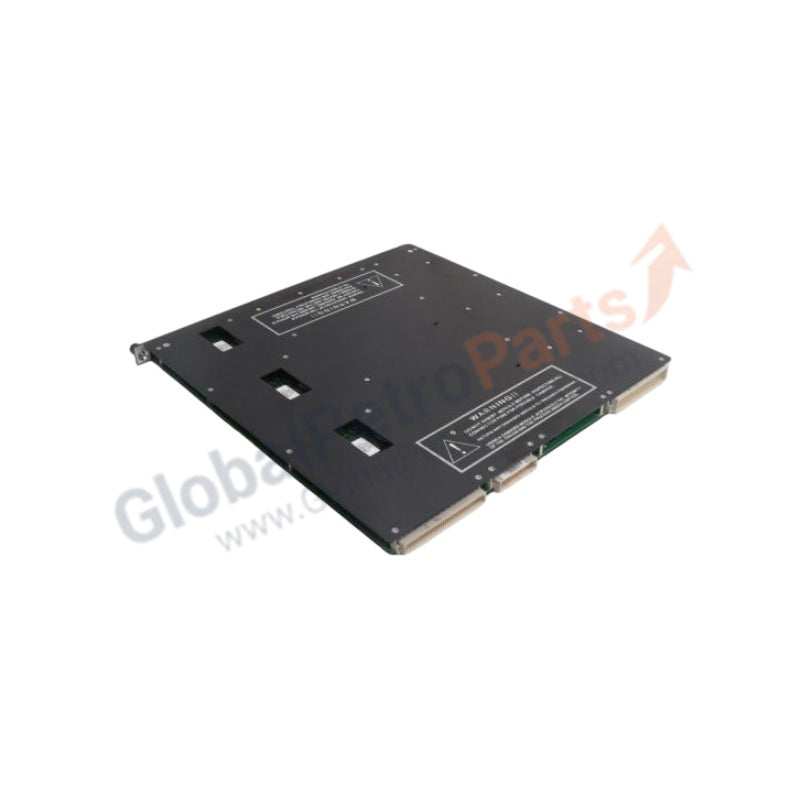

3805H Triconex Analog Output Module

10 left

Manufacturer: Triconex
Product No.: 3805H
Product Type: Analog Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 170g
Shipping port: Xiamen
Warranty: 12 months

Special offer ends!

Product Description

The 3805H module from Triconex delivers precise analog output control for safety-critical industrial automation systems.
Moreover, the module integrates seamlessly within Triconex Trident and Tricon systems, ensuring consistent and deterministic signal transmission.

Additionally, the 3805H supports high-integrity applications that require stable current output and fault-tolerant architecture.
Therefore, engineers widely deploy the 3805H in oil and gas, petrochemical, and power generation environments.

Technical Specifications

Parameter	Specification
Model	3805H
Manufacturer	Triconex (Schneider Electric)
Module Type	Analog Output Module
System Compatibility	Tricon / Trident Safety Systems
Output Signal Type	4–20 mA current output
Number of Output Channels	8 isolated channels
Output Range	0–20 mA / 4–20 mA configurable
Resolution	12-bit digital-to-analog conversion
Output Accuracy	±0.25% of full scale
Linearity Error	<0.1% typical
Output Load Resistance	0–750 Ω
Isolation	Channel-to-channel and channel-to-ground isolation
Isolation Voltage	500 VDC minimum
Update Time	≤10 ms per channel
Response Time	<10 ms typical
Diagnostics	Built-in self-diagnostics and fault monitoring
Redundancy Support	Compatible with TMR (Triple Modular Redundancy) systems
Power Supply	24 VDC nominal
Power Consumption	8–12 W typical
Heat Dissipation	Approx. 27–40 BTU/hr
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Relative Humidity	5% to 95% non-condensing
Mounting Type	Rack-mounted (Tricon chassis)
Backplane Interface	High-speed proprietary Tricon bus
Field Wiring Interface	External terminal board connection
Dimensions	Approx. 266 × 31 × 303 mm
Weight	Approx. 1.5–2.0 kg
Cooling Method	Natural convection
