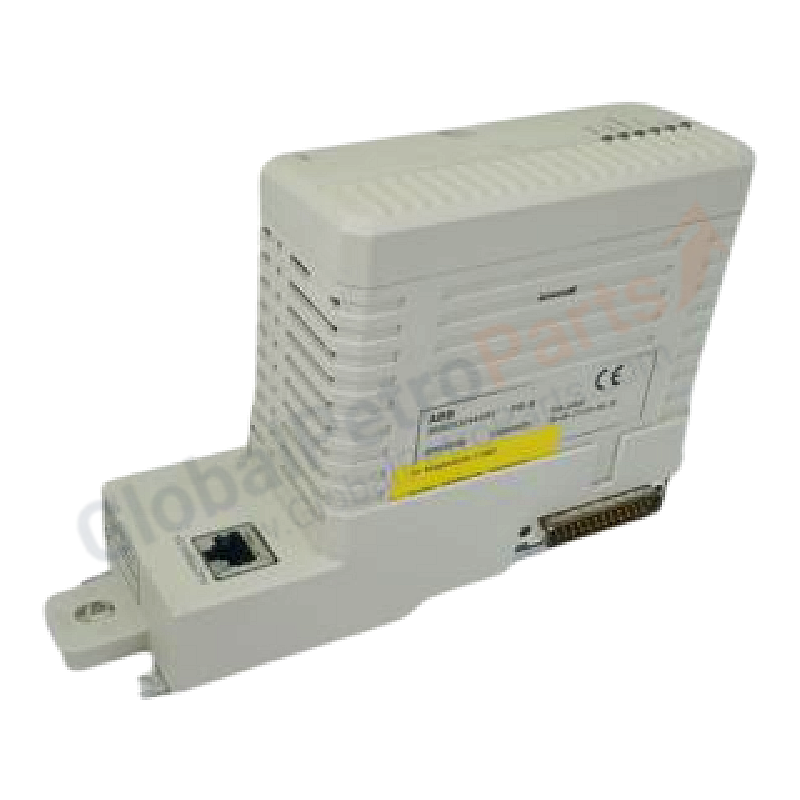

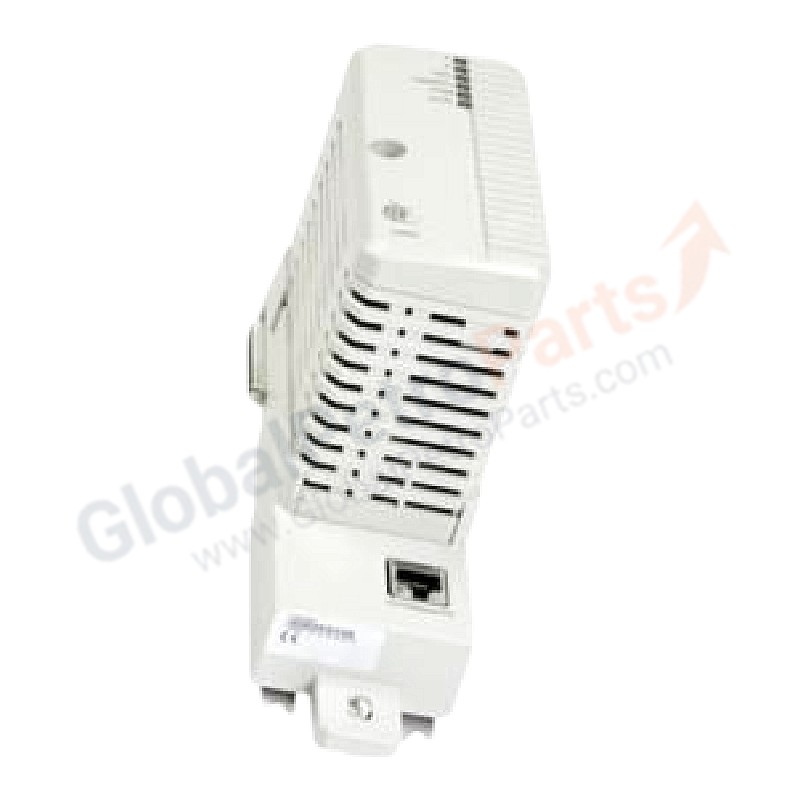

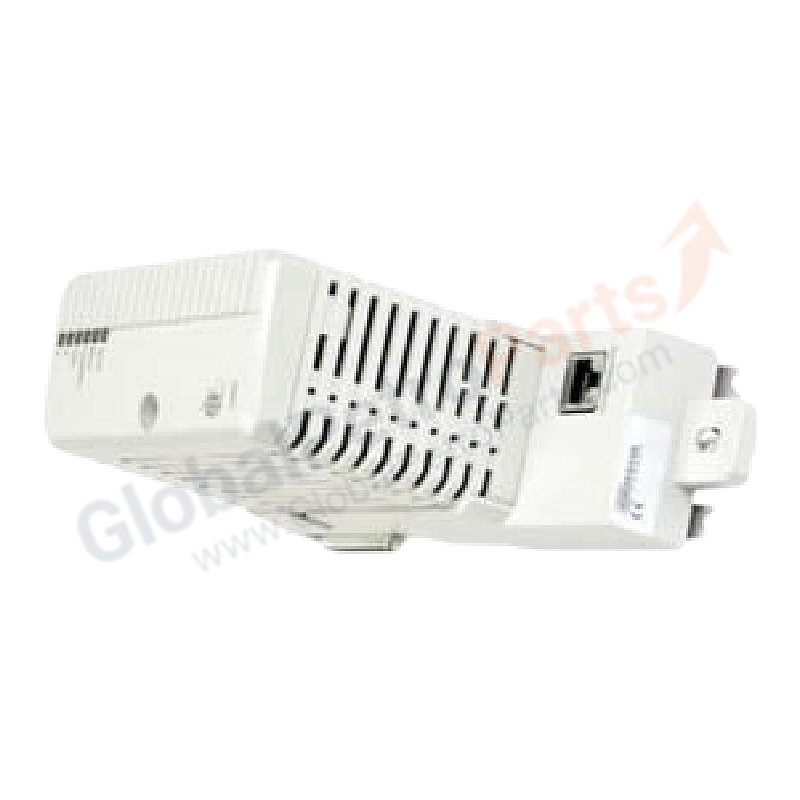

3BSE032444R1 | ABB AC 800M | CI860K01 Communications Input Module

Overview

The ABB CI860K01 3BSE032444R1 is a FOUNDATION Fieldbus HSE (High-Speed Ethernet) communication interface kit designed for AC 800M controllers to provide high-speed connectivity between the controller and the FOUNDATION Fieldbus HSE network subnet.

Technical Specifications

• Product Type: Communication Interface Kit
• Part Number: 3BSE032444R1
• Model: CI860K01
• Protocol Supported: FOUNDATION Fieldbus HSE
• Communication Speed: 100 Mbit/s
• Maximum Modules per Controller: 12
• Redundancy Support: Yes (Module redundancy)
• System Compatibility: ABB AC 800M Controllers / System 800xA DCS
• Package Contents: CI860 module and TP860 baseplate
• Power Supply: 24 V DC (Supplied via AC 800M backplane)
• Operating Temperature: 0 °C to +55 °C
• Storage Temperature: -40 °C to +85 °C
• Protection Rating: IP20 (according to EN60529, IEC 529)
• HART Communication: No
• SOE (Sequence of Events): No
• High Integrity: No
• Intrinsic Safety: No
• CE Marking: Yes
• RoHS Compliance: DIRECTIVE/2011/65/EU
• WEEE Compliance: DIRECTIVE/2012/19/EU
• Product Net Width: 59 mm
• Product Net Depth / Length: 127.5 mm
• Product Net Height: 186 mm
• Product Net Weight: 0.7 kg

Key Features

• Establishes full high-speed 100 Mbit/s Ethernet connectivity to route FOUNDATION Fieldbus process data directly to IEC 61131 applications.
• Maps both the values and structural status attributes of FF signals seamlessly into the controller logic environment.
• Supports full module redundancy with up to twelve interfaces per controller to guarantee process network link availability.
• Interfaces directly with standard FOUNDATION Fieldbus Linking Devices to manage down-stream H1 process instrument loops.
• Includes the dedicated TP860 baseplate to achieve structural shielding and robust backplane mounting.

Installation Notes

• Mount the module onto the included TP860 baseplate linked directly into the AC 800M controller bus layout inside an IP20 enclosure.
• Connect standard Ethernet communication network drops to the interface module using qualified industrial network components.
• Ensure that the grounding framework of the mounting rail complies fully with standard industrial EMC protection rules.
• Configure the client/server network interface IP parameters and unique resource ID assignments within the Fieldbus Builder FF environment before commissioning.
