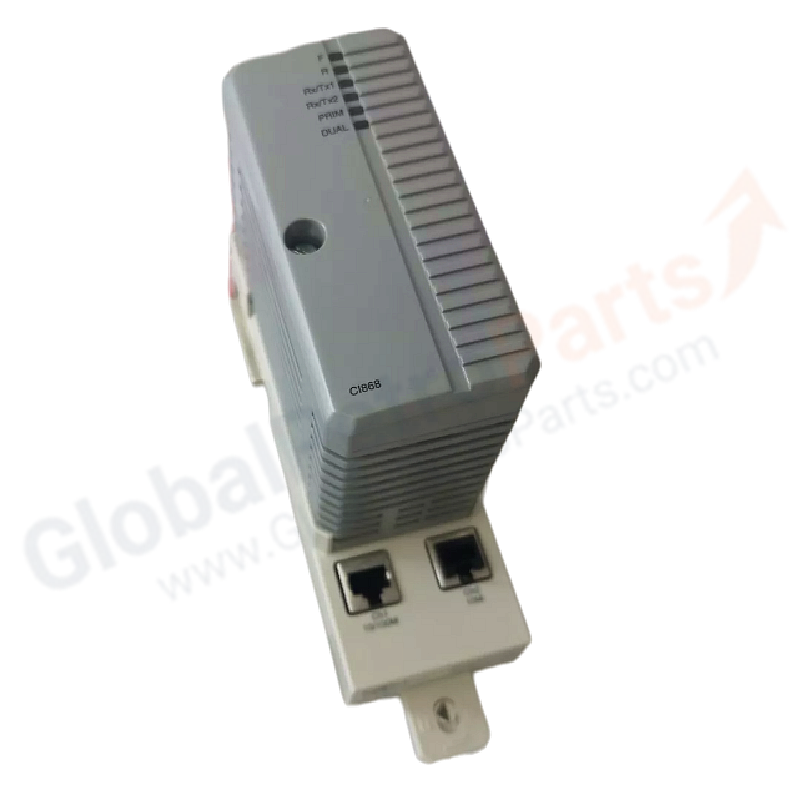

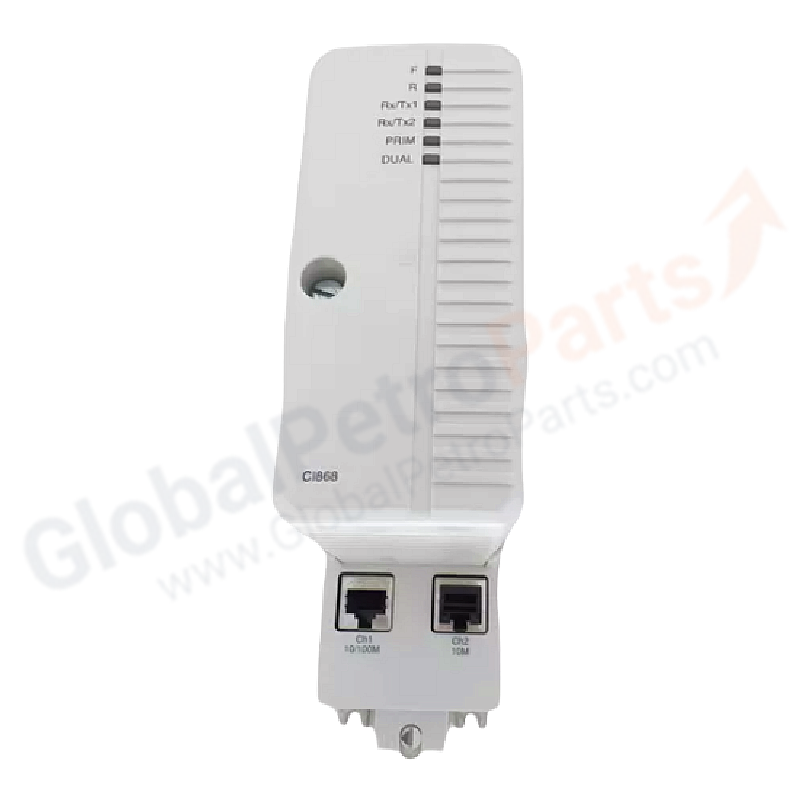

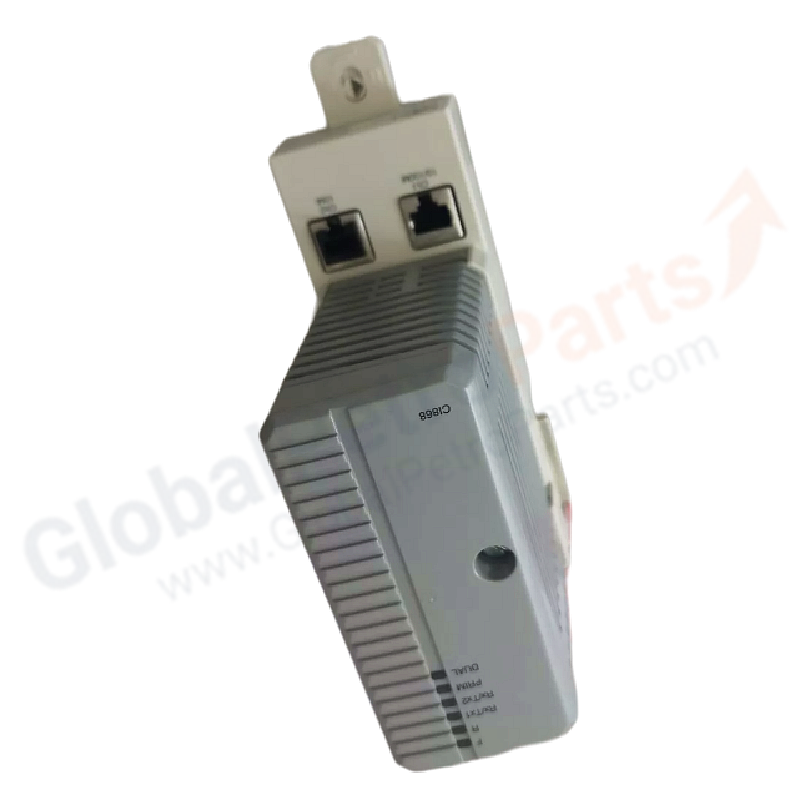

3BSE092691E1 | ABB CI868AK01 Communication Interface Module

Product Overview

The ABB CI868AK01 (3BSE092691R1) is an IEC 61850 Communication Interface Kit for the AC 800M controller. It bridges process automation and electrical substation automation by enabling MMS (client) and GOOSE (publisher/subscriber) communication with IEC 61850-compliant IEDs.

Key Specifications

• Manufacturer: ABB
• Part Number: CI868AK01 (3BSE092691R1)
• Product Type: IEC 61850 Communication Interface Kit
• System: AC 800M / System 800xA
• Protocol: IEC 61850 Edition 2 (MMS + GOOSE)
• IED Capacity: Max 120 IEDs (GOOSE), 40 IEDs (MMS)
• Ports: 2× RJ45 Ethernet (CH1: 10/100 Mbps, CH2: 10 Mbps)
• Bus: CEX-Bus mounted
• Power Dissipation: 3.8 W
• Dimensions: W 59 × H 185 × D 127.5 mm
• Weight: 700 g

Applications

• Substation automation integration
• Power generation protection systems
• Renewable energy grid connections
• Microgrid control

FAQ

Q: What is the difference between CI868 and CI868A?
A: CI868A supports IEC 61850 Edition 2 and works with System 800xA 6.0.3.3 and later. Earlier CI868 modules may support Edition 1 only.

Q: How many CI868 modules can be installed per controller?
A: Up to 12 CI868 modules can be used in one AC 800M controller.

Installation Guide

1. Mount CI868 on the CEX-Bus.
2. Connect Ethernet cables to RJ45 ports via an Ethernet switch.
3. Import ICD/CID files for each IED into Control Builder M.
4. Configure GOOSE subscriptions and MMS client mappings.

Selection Tips

• Verify IEDs support IEC 61850 Edition 2 for full CI868A compatibility.
• Plan network architecture with VLANs for GOOSE traffic prioritization.
