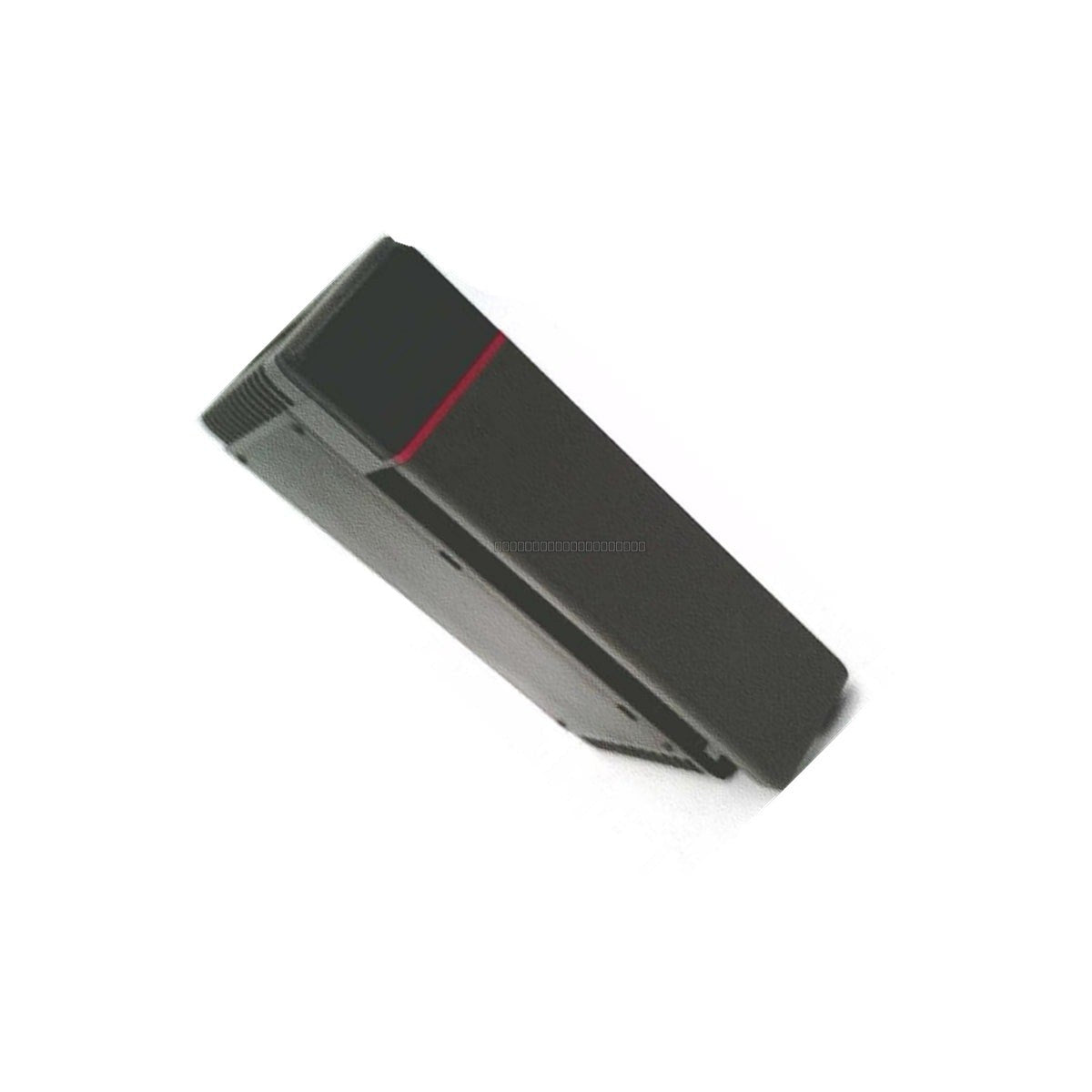

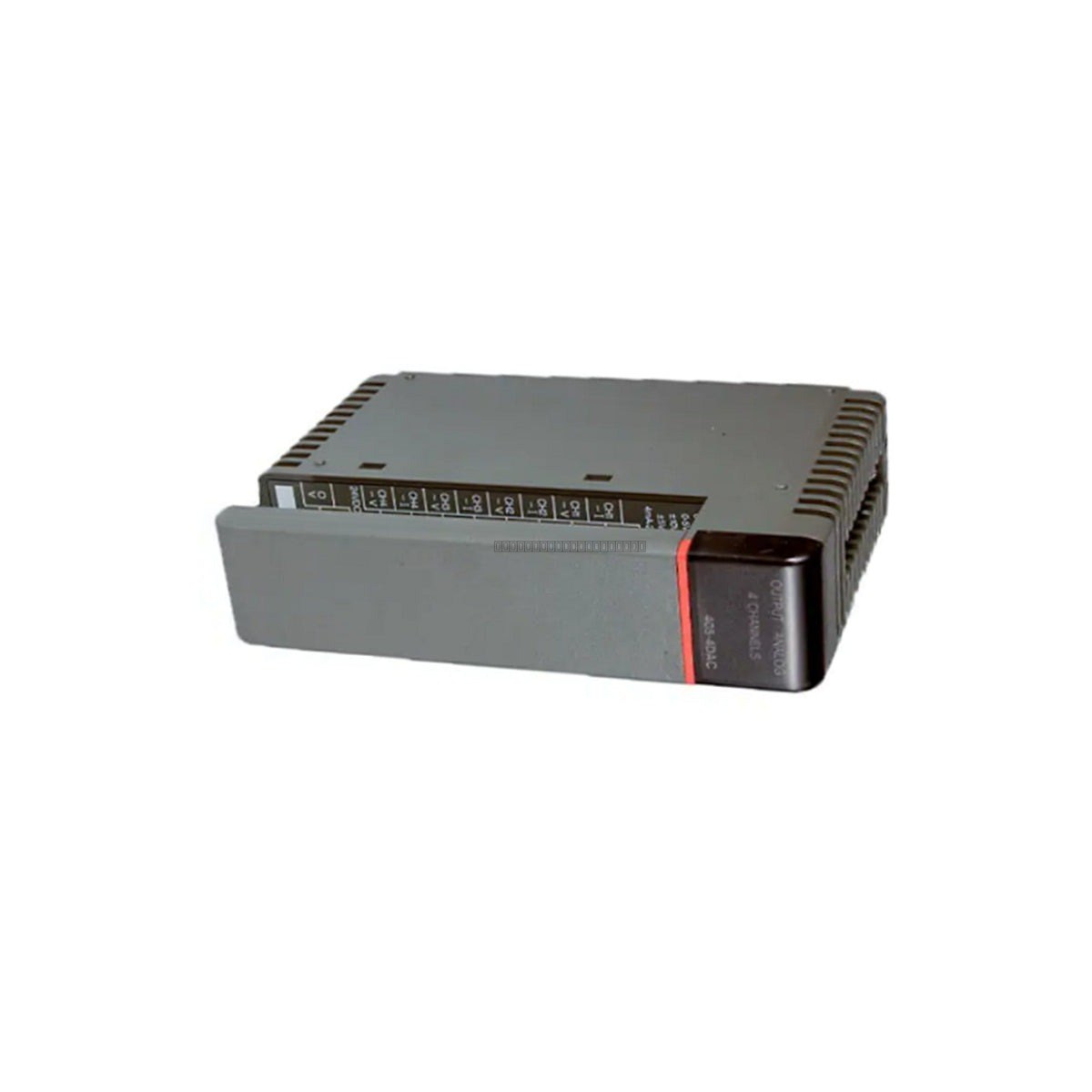

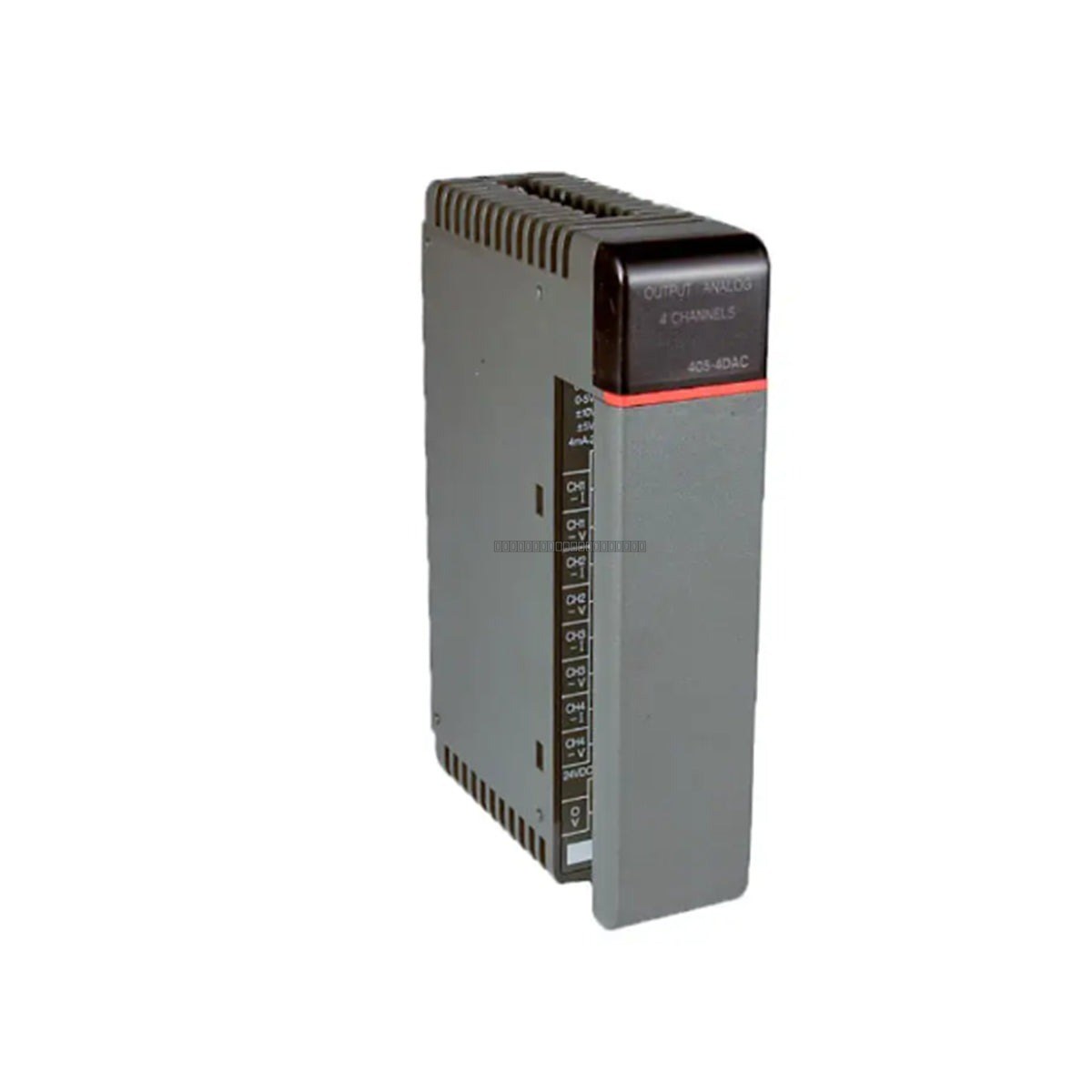

Siemens 405-4DAC-1 Analog Output Module

Description

The Siemens 405-4DAC-1 is a high-performance analog output module designed for use within the TI 405 series programmable logic controller (PLC) systems. This module provides four channels of analog output, enabling precise control of field devices such as actuators, valves, and motor drives. It supports multiple signal ranges, including 4-20mA current loops and 0-5V or 0-10V voltage outputs, providing flexibility for various industrial control applications.

Features

• 4-channel analog output capability
• 12-bit resolution for precise signal conversion
• Configurable output ranges: 4-20mA, 0-5V, and 0-10V
• Designed for seamless integration with TI 405 series rack systems
• Robust industrial construction for reliable operation in demanding environments

Applications

This module is typically utilized in process control systems where analog control signals are required to modulate industrial equipment. Common applications include proportional control of hydraulic or pneumatic valves, speed control for variable frequency drives (VFDs), and precision positioning systems in manufacturing and automation plants.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
• Verify that the module is firmly seated in the backplane connector to ensure proper communication with the CPU.
• Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI) and signal noise.
• Route analog signal cables away from high-voltage AC power lines and inductive loads.
• Ensure proper grounding of the module chassis to the system common ground to maintain signal integrity.
• Maintain adequate clearance around the module to allow for proper airflow and cooling within the control cabinet.

FAQ

Is the 405-4DAC-1 still in production?

No, the 405-4DAC-1 has been discontinued by the manufacturer. We offer refurbished or surplus units to support legacy system maintenance.

What is the resolution of this module?

The 405-4DAC-1 features 12-bit resolution, providing sufficient granularity for most standard industrial analog control loops.
