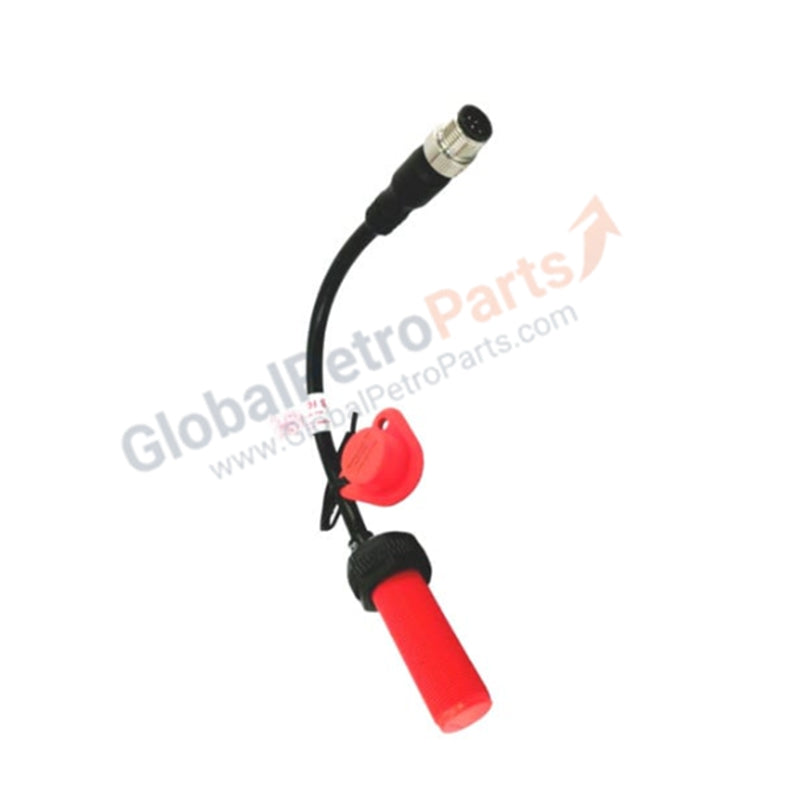

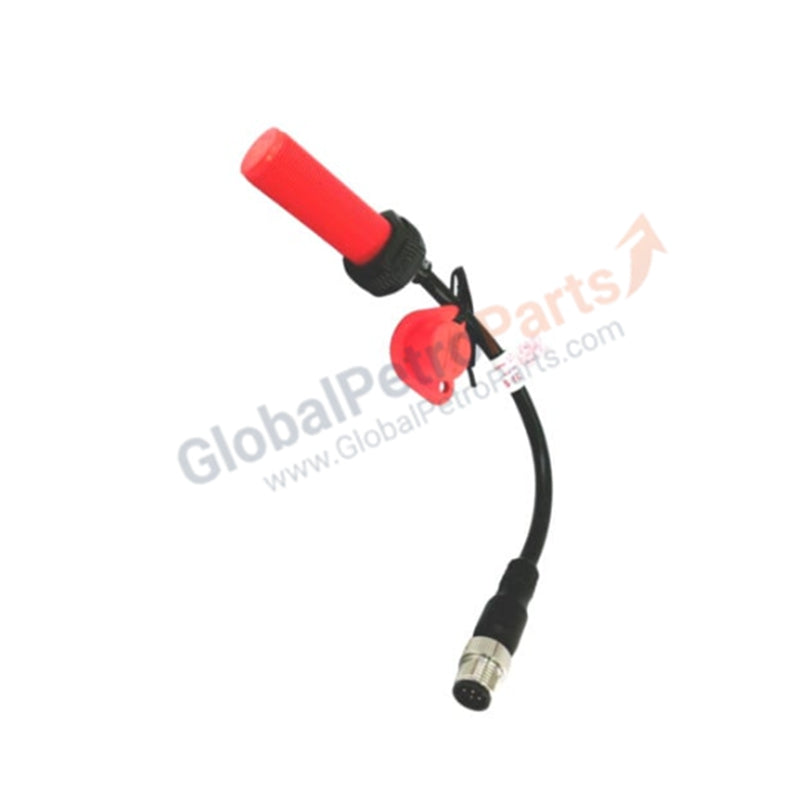

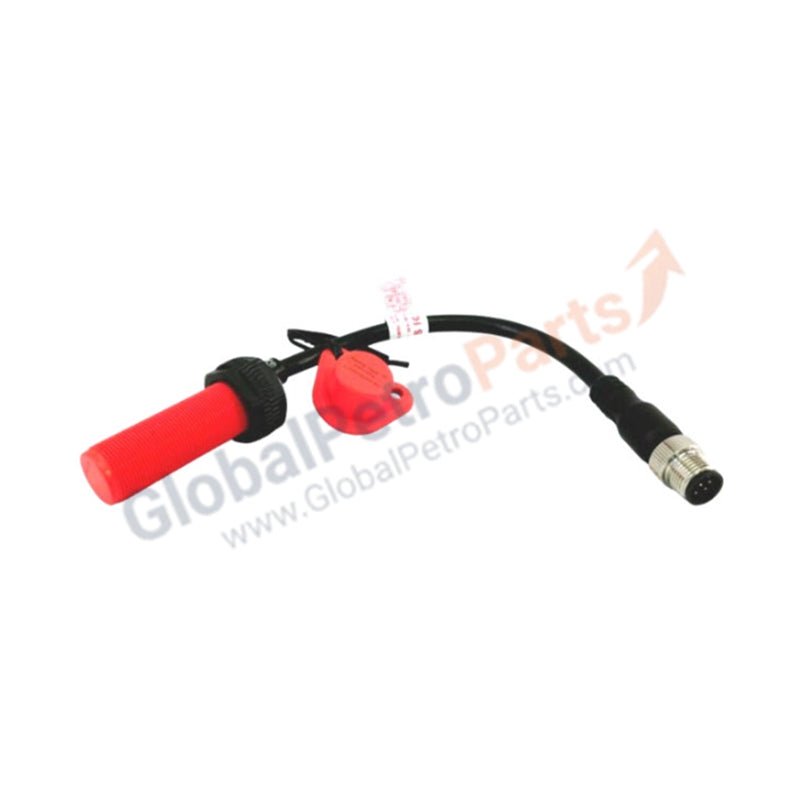

440N-Z21S16H | Allen-Bradley | Safety Interlock Switch

Configured for safety gate monitoring and circuit status verification in industrial machine control platforms, the Allen-Bradley 440N-Z21S16H (440N-Z21S16H Safety Interlock Switch) provides direct physical and electrical execution of guard position sensing.

Suffix Breakdown & Model Matrix

The model 440N-Z21S16H designates the Guardmaster non-contact switch variant equipped with standard sensing logic. The "S16H" suffix specifies the electrical interface configuration, utilizing a 6-inch pigtail terminated with an 8-pin M12 micro connector for integration into standard industrial safety wiring topologies.

Hardware Specifications

PLC and Deterministic Network Integration

The 440N-Z21S16H supports integration into deterministic networks through external safety controllers or safety-rated PLC I/O cards. The device architecture allows for high-density I/O scaling, provided that the safety-rated inputs support the 24 VDC threshold and the specified current load. Proper signal termination at the controller end is required to maintain deterministic response times within the safety loop, ensuring that switch state transitions are processed within the defined scan cycle without intermittent latency or communication jitter.

Frequently Asked Questions

Q: Does the 440N-Z21S16H support hot-swapping during active operation?

A: No. Any physical disconnection of the M12 interface while the system is powered will result in a safety output drop-out, which is the intended fail-safe behavior of the module.

Q: Is this device compatible with standard digital input cards?

A: It must be connected to safety-rated inputs. Connecting to standard digital I/O without safety classification will not meet functional safety standards (SIL/PL) for guard interlocking.

Field Installation Guidelines

• Mounting and Alignment: Secure the switch and actuator on the guard door using non-magnetic hardware to ensure the 15 mm sensing gap is maintained. Avoid mounting on surfaces subject to extreme vibration, which could cause the sensing distance to deviate during machine operation.
• Wiring and Shielding: Route the 6-inch pigtail and associated extension cabling through dedicated conduits separate from high-power motor leads or VFD cables to prevent inductive crosstalk.
• Connector Torque: Ensure the 8-pin M12 connector is hand-tightened or torqued to the manufacturer's specification to maintain an IP-rated seal and prevent intermittent electrical contact due to machine-induced mechanical resonance.
