51308365-175 | Honeywell CC-TAIX11 Redundant Analog Input IOTA

Overview

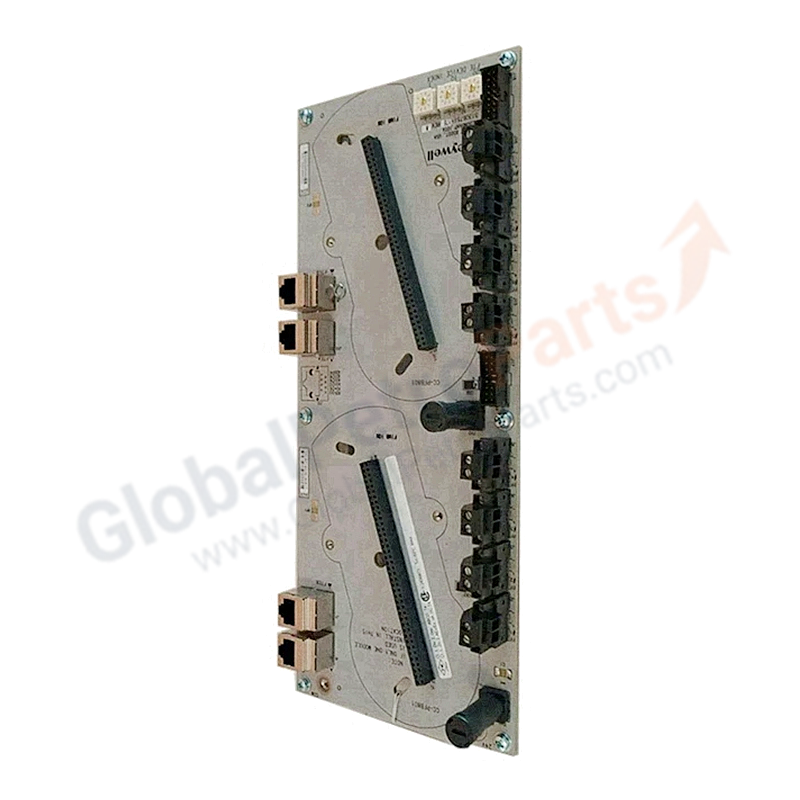

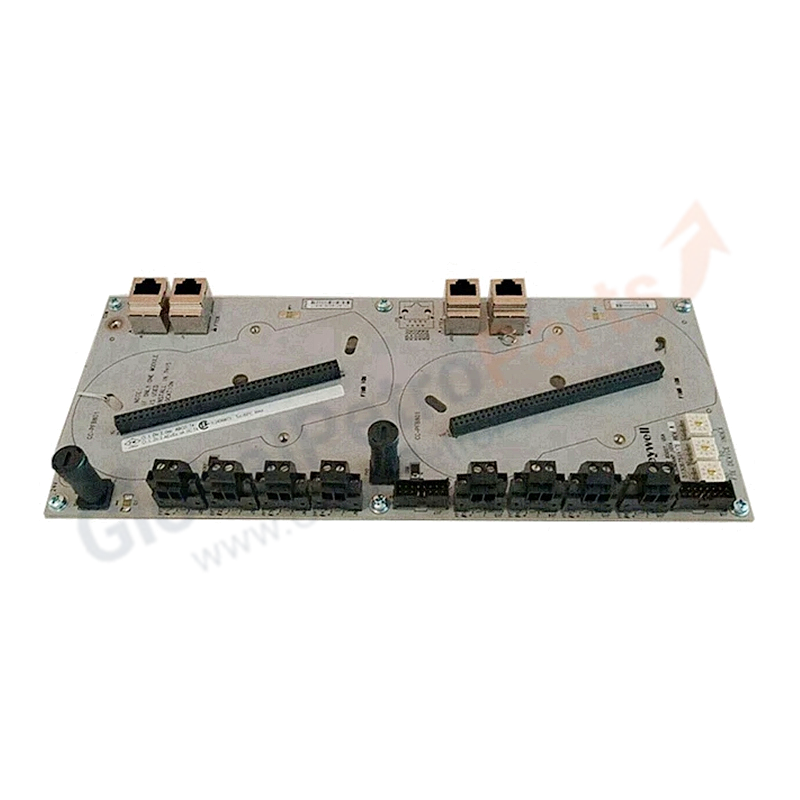

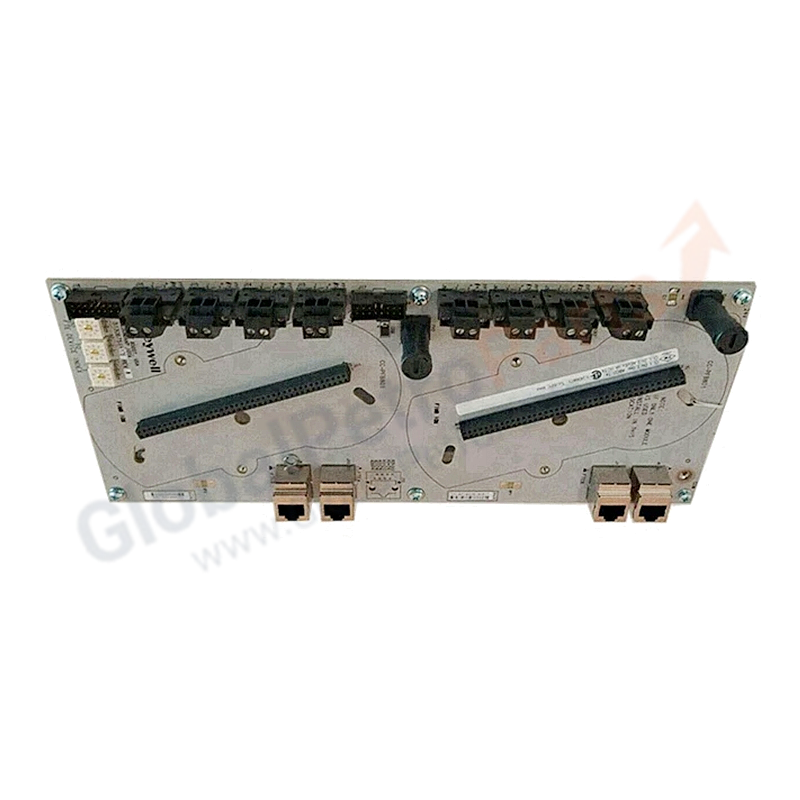

The Honeywell CC-TAIX11 (Part Number: 51308365-175) is a 12-inch Redundant Analog Input Termination Assembly (IOTA) designed for the Experion PKS Series C platform. It provides dual-slot mounting to host two analog input modules in a 1:1 hot-shadowing redundant configuration, ensuring uninterrupted process signal routing.

Technical Specifications

• Product Type: Redundant Analog Input Module Termination Assembly
• Model Code: CC-TAIX11
• Part Number: 51308365-175
• Manufacturer: Honeywell
• Channel Capacity: 16 Channels
• Signal Compatibility: High-Level Analog Inputs (4-20 mA / 1-5 V DC)
• IOTA Size: 12 inches
• Redundancy Support: Yes (Dual 1:1 Active/Standby slots)
• Isolation Barrier: 1500 VDC
• Conformal Coating: Yes (ISA-S71.04 Class G3 Compliant)

Installation Notes

• Snap the 12-inch CC-TAIX11 IOTA vertically onto the cabinet DIN rail carrier.
• Connect the enclosure's master grounding bus directly to the IOTA grounding strip to maintain clean signal noise margins.
• Wire the 16 analog field loops to the screw terminal blocks according to designated polarities.
• Inspect all connector pins on both input modules for alignment before inserting them straight into the primary and backup slots.
