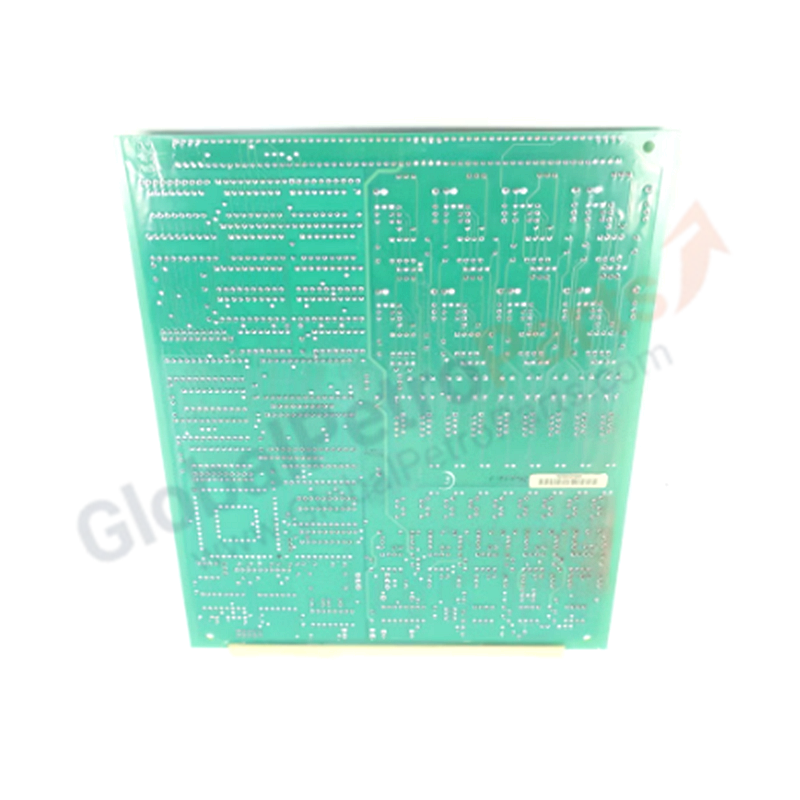

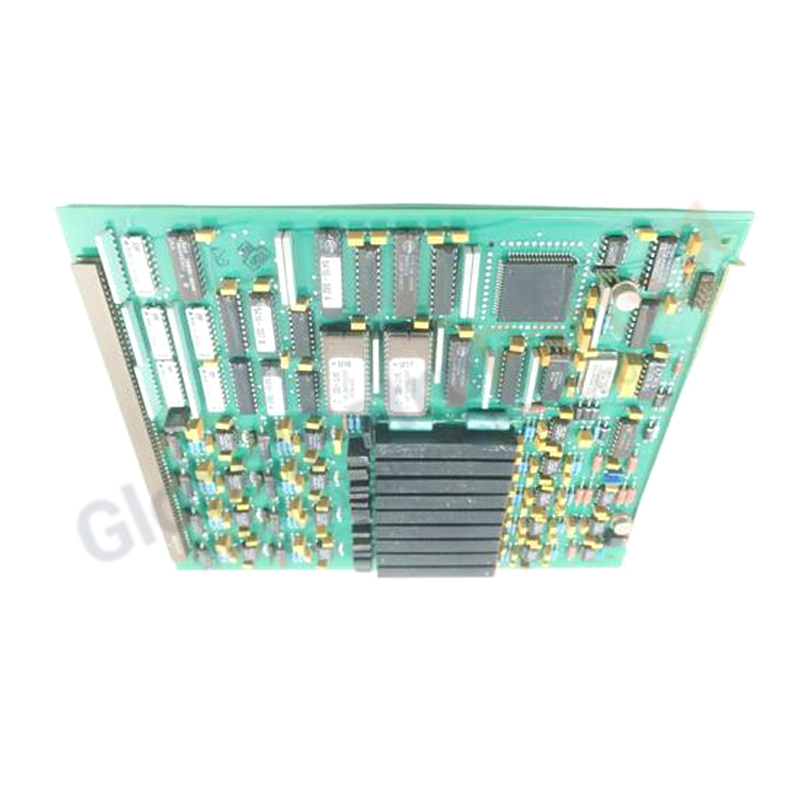

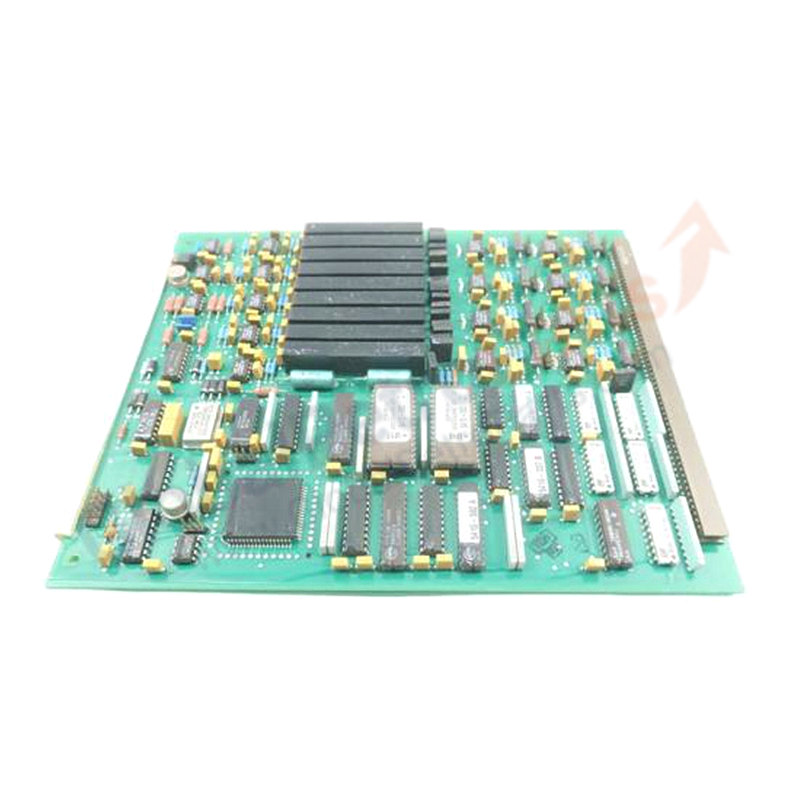

5463-581 | Woodward Relay Output Module

Product Overview

The Woodward 5463-581 is an 8-Channel Isolated 4–20 mA Analog Input Module with integrated relay output functionality, designed for the Woodward MicroNet and NetCon 5000 control system families. It provides 8 isolated 4–20 mA current input channels for field transmitter signal acquisition, combined with relay outputs for alarm and control signaling. The module features RS-485 communication and operates on 24 VDC power, making it a versatile solution for turbine, engine, and industrial process control applications.

Key Technical Specifications

• Product Type: 8-Channel Isolated 4–20 mA Analog Input Module with Relay Output
• Series: Woodward MicroNet / NetCon 5000 / 5463 Series
• Input Channels: 8 (4–20 mA, isolated)
• Input Type: Isolated current loop (4–20 mA)
• Relay Output: 24 VDC / 1 A (per channel)
• Data Interface: RS-485
• Power Supply: 24 VDC
• Input Signal Range: 0–10 V (alternative), 4–20 mA primary
• Isolation Rating: 10 MΩ
• Current Rating: ≤ 20 mA (input)
• Operating Temperature: -40°C to +85°C
• Frequency Response: Up to 1 MHz
• Dimensions: 96 mm × 48 mm × 24 mm (per some sources); 19.1 cm × 2.5 cm × 23.5 cm (per others)
• Weight: Approx. 0.3 kg
• Mounting: MicroNet/NetCon chassis slot-mounted
• Cross-Reference: 9931-803 (8 Channel Isolated Analog Input Module)
• Origin: USA

Key Features

• 8 Isolated 4–20 mA Inputs: Each channel galvanically isolated for noise immunity and ground loop prevention
• Integrated Relay Outputs: 24 VDC / 1 A relay contacts for alarm and control signaling
• RS-485 Communication: Standard industrial serial interface for distributed I/O networks
• Wide Temperature Range: -40°C to +85°C for harsh industrial environments
• High Isolation Rating: 10 MΩ isolation between channels and system ground
• Compact Design: Space-efficient form factor for high-density I/O configurations
• MicroNet/NetCon Compatible: Seamless integration with Woodward control system architectures

Related 5463 Series Modules

• 5463-582 — 8 Channel Isolated Analog 0–5V Input
• 5463-583 — 8 Channel Isolated 0–10V Input
• 5463-785 — NetCon Isolated 4–20 mA Analog Input Card
• 5463-786 — NetCon Analog Output 8-Channel Card
• 5463-873 — Discrete Output
• 5463-877 — NetCon Actuator Driver Card

Applications

• Turbine control system analog signal acquisition (pressure, temperature, flow transmitters)
• Engine management system sensor interfacing
• Generator control panel 4–20 mA input processing
• Industrial process control distributed I/O
• Alarm and shutdown relay logic via integrated relay outputs

Installation Guide

1. Install in MicroNet or NetCon 5000 chassis at designated slot
2. Connect 24 VDC power supply to module power terminals
3. Wire 4–20 mA transmitter signals to isolated input channels (1–8)
4. Connect relay output contacts to alarm indicators, solenoids, or control circuits
5. Wire RS-485 communication cable to system network
6. Configure input scaling and relay logic via Woodward configuration software
7. Verify isolation integrity and signal accuracy for all 8 channels

FAQ

Q: How many analog input channels does 5463-581 have?
A: 8 isolated 4–20 mA input channels.

Q: What is the relay output rating?
A: 24 VDC / 1 A per relay output channel.

Q: What communication interface does it use?
A: RS-485 serial communication for distributed I/O networks.

Q: What is the isolation rating?
A: 10 MΩ isolation between input channels and system ground.

Q: Is this module compatible with NetCon 5000?
A: Yes, it is compatible with both MicroNet and NetCon 5000 control system families.

Q: What is the cross-reference part number?
A: 9931-803 (8 Channel Isolated Analog Input Module).

Model Selection Tips

• 5463-581 = 8-channel isolated 4–20 mA input + relay output
• For 0–5V analog inputs, use 5463-582
• For 0–10V analog inputs, use 5463-583
• For analog outputs, use 5463-786 (8-channel analog output)
• For discrete outputs only, use 5463-873
• Verify transmitter signal type (4–20 mA vs. voltage) before ordering
• Confirm RS-485 network master module compatibility
• Check relay contact voltage/current ratings against load requirements
