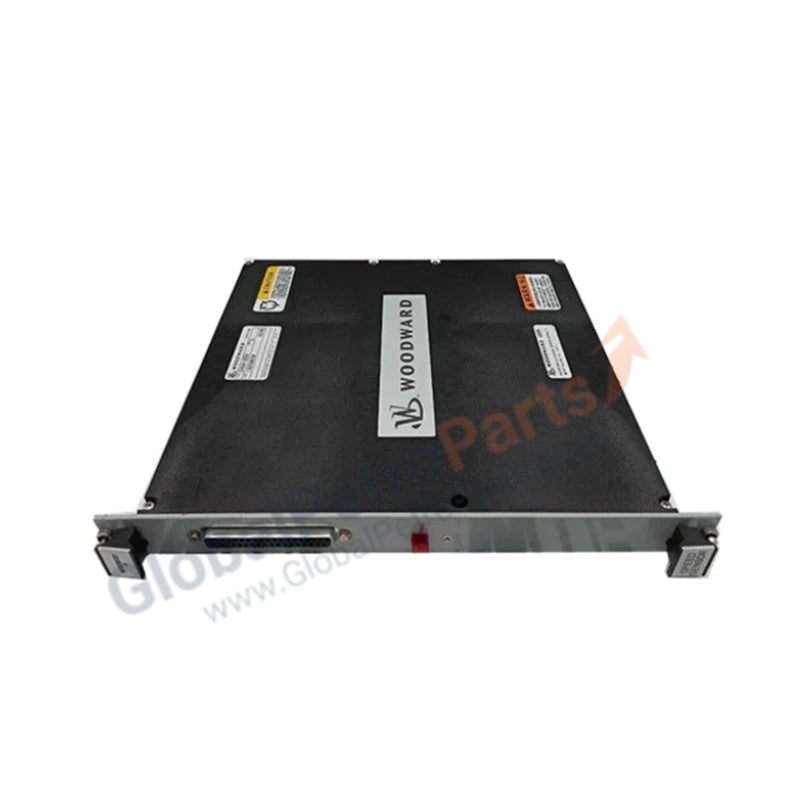

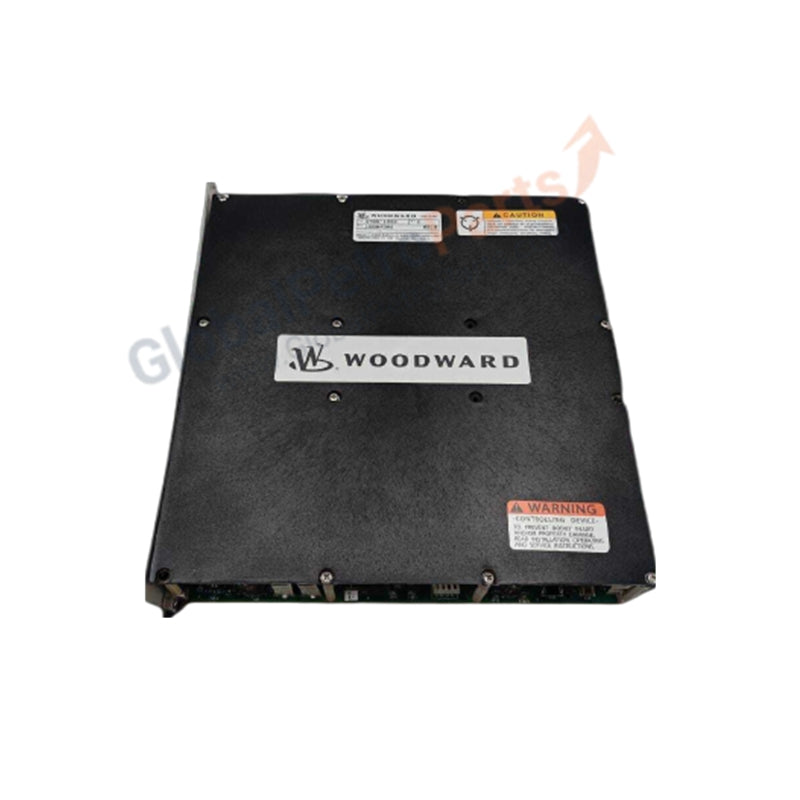

5463-785 | Woodward NetCon 5000 High-Speed Analog Input

Woodward 5463-785 NetCon 5000 Isolated Analog Input Control Module

The 5463-785 (Model: 5463-785) is a high-performance, 8-point isolated analog input module designed for the NetCon 5000 and MicroNet™ control platforms. This module serves as a critical interface between field instrumentation—such as pressure transducers, temperature sensors, and flow meters—and the turbine governor's processing logic. The 5463-785 (Part Number: 5463-785) is engineered to provide high-speed signal conditioning and galvanic isolation, ensuring that electrical noise or ground loops from the field do not compromise the integrity of the central control electronics.

Operating with a high sampling rate of 10 kHz, the 5463-785 (NetCon: 5463-785) is optimized for the deterministic requirements of gas and steam turbine regulation. It supports multiple input ranges, including standard 4–20 mA current loops and various VDC scales, providing the flexibility needed for diverse industrial engine applications. Its industrial-grade construction and high Mean Time Between Failures (MTBF) make it a cornerstone for reliability in power generation and petrochemical process automation.

Detailed Technical Specifications

The 5463-785 (5463-785) offers precision signal acquisition with robust electrical protection.
