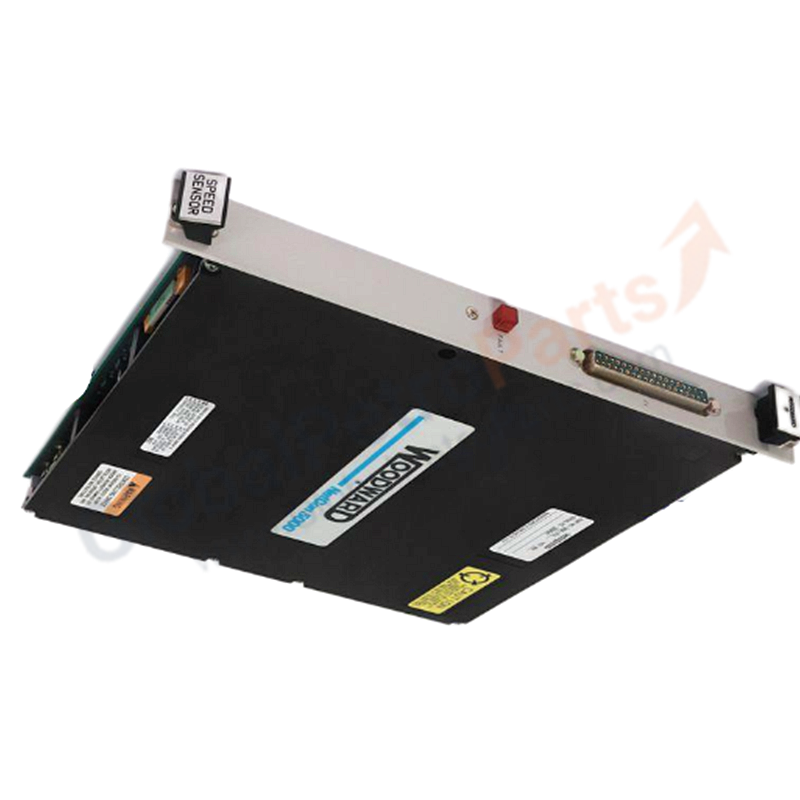

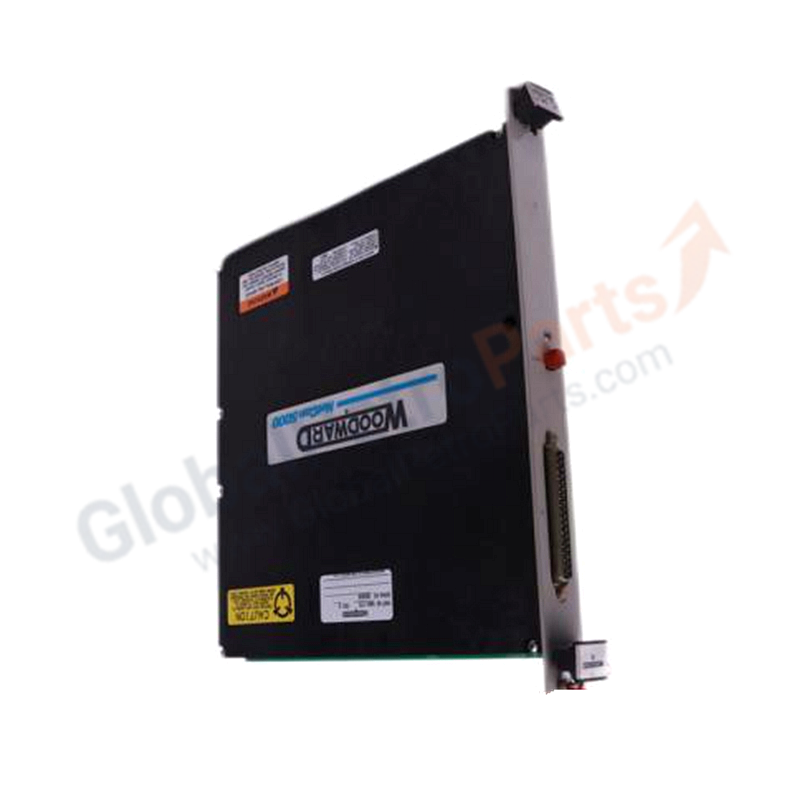

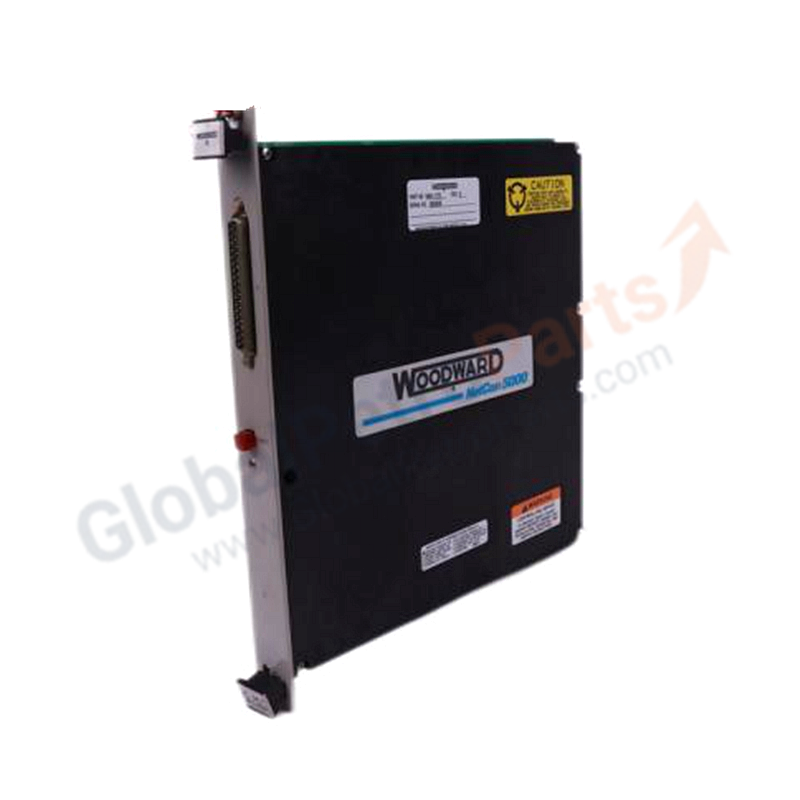

5464-210 | Woodward Actuator Driver Module | New

Product Overview

The Woodward 5464-210 is a 2-Channel Actuator Driver Module from the NetCon 5000 series. It serves as an interface between low-power control signals and high-power actuator drives, generating four proportional actuator-driver signals (0–25/200 mAdc) for precise positioning of valves, fuel racks, and other actuated devices. The module uses a dual-port memory VME-bus interface and features microcontroller-based calibration with integrated fault detection and a FAULT LED for real-time diagnostics.

Key Technical Specifications

• Product Type: 2-Channel Actuator Driver Module
• Series: Woodward NetCon 5000 / 5464 Series
• Output Signals: Four proportional actuator-driver signals (0–25/200 mAdc)
• Interface: Dual-port memory VME-bus interface
• Calibration: Microcontroller-based
• Fault Detection: Integrated with FAULT LED indicator
• System Features: Cogeneration, Utility Power Generation, Process Management, Distribution Management
• Redundancy: Triple Modular Redundant (TMR) system compatible
• Mounting: NetCon 5000 chassis slot-mounted
• Origin: USA

Key Features

• Proportional Drive Output: 0–25 mAdc or 0–200 mAdc for precise actuator control
• VME-Bus Communication: High-speed dual-port memory interface
• Self-Calibrating: Microcontroller eliminates manual calibration
• Built-in Diagnostics: FAULT LED for immediate fault indication
• Fault-Tolerant: Continues operation in TMR redundant configurations

Applications

• Gas and steam turbine fuel valve positioning
• Diesel engine fuel rack control
• Compressor actuator drive
• Industrial process valve control

Installation Guide

1. Install in NetCon 5000 chassis at designated slot
2. Connect VME-bus to CPU module
3. Wire actuator drive outputs to field actuators
4. Verify FAULT LED status (off = normal)
5. Run auto-calibration via Woodward configuration software

FAQ

Q: How many actuator channels does 5464-210 drive?
A: Two channels with four proportional output signals total.

Q: What is the output current range?
A: 0–25 mAdc or 0–200 mAdc.

Q: Is manual calibration required?
A: No, microcontroller-based calibration is automatic.

Model Selection Tips

• 5464-210 = 2-channel actuator driver with proportional output
• For integrating actuator driver with enhanced features, consider 5464-211
• For SIO (Serial I/O), consider 5464-213
• For NetCon CPU, consider 5464-240 or 5464-444
