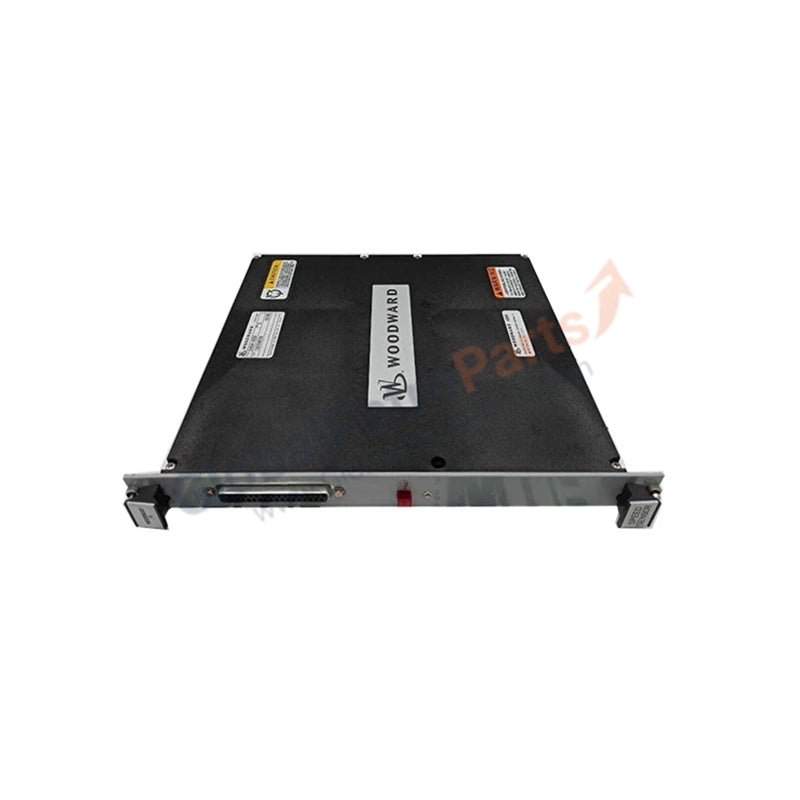

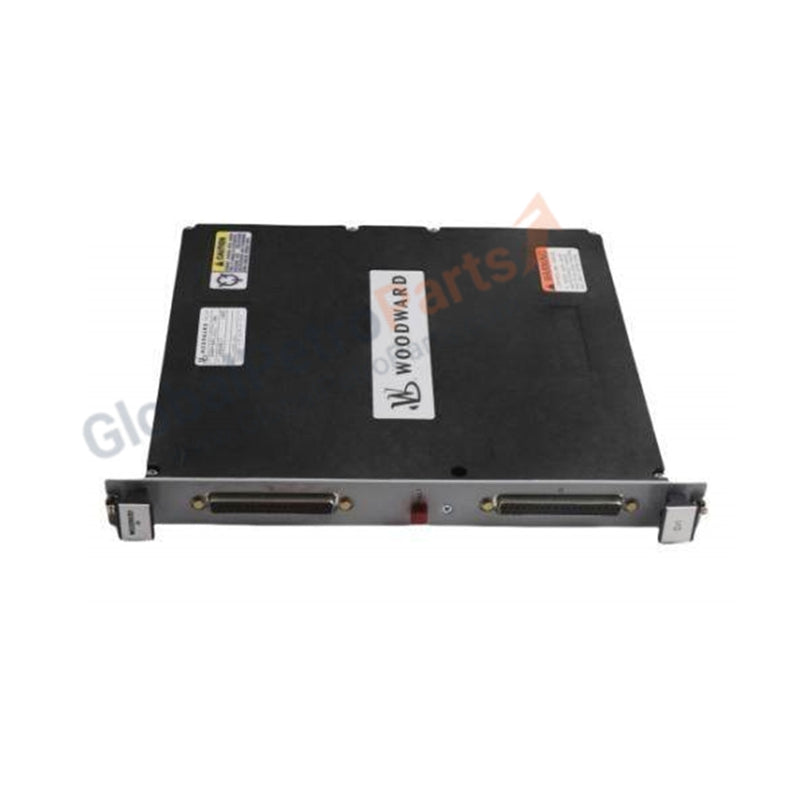

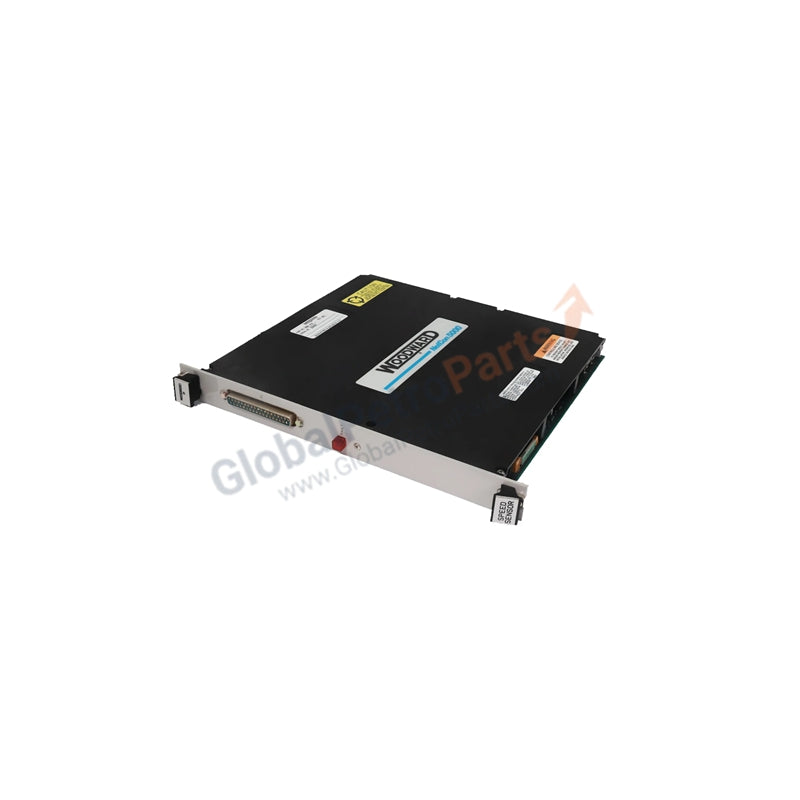

Woodward 5464-648 Rev. E Analog Output 8-Channel PLC Module

The 5464-648 (Model: 5464-648) is a high-precision analog output module engineered by Woodward for specialized use in turbine control systems and large-scale industrial automation. As a critical component in Woodward’s control hardware ecosystem, the 5464-648 (Part Number: 5464-648) provides eight independent channels designed to convert digital control logic into accurate 4-20 mA current signals.

This module is primarily utilized to drive field-side actuators, fuel valves, and auxiliary positioning systems in gas turbine environments. The Revision E (Rev. E) hardware features optimized signal stability and enhanced thermal management to withstand the rigorous conditions of power generation and oil and gas facilities. With built-in self-diagnostics, the 5464-648 (Model: 5464-648) continuously monitors the integrity of each output loop, alerting the primary controller to any open-circuit conditions or hardware malfunctions, thereby preventing unplanned system trips and ensuring operational safety.

Detailed Technical Specifications

The 5464-648 (Model: 5464-648) is built to provide deterministic signal transmission in mission-critical loops.
