5464-654 | Woodward Digital Output Module with Fault Indication

Woodward 5464-654 MicroNet 64-Channel Digital Output Discrete Module

The 5464-654 (Model: 5464-654) is a high-density digital output expansion module designed for the Woodward MicroNet™ and NetCon™ 5000 control platforms. This module serves as a critical discrete interface, allowing the central governor or engine controller to command external equipment such as solenoid valves, motor starters, relays, and alarm indicators. The 5464-654 (Part Number: 5464-654) features a dual-port architecture, ensuring robust communication within the control rack and providing high-speed response times essential for turbine and reciprocating engine safety logic.

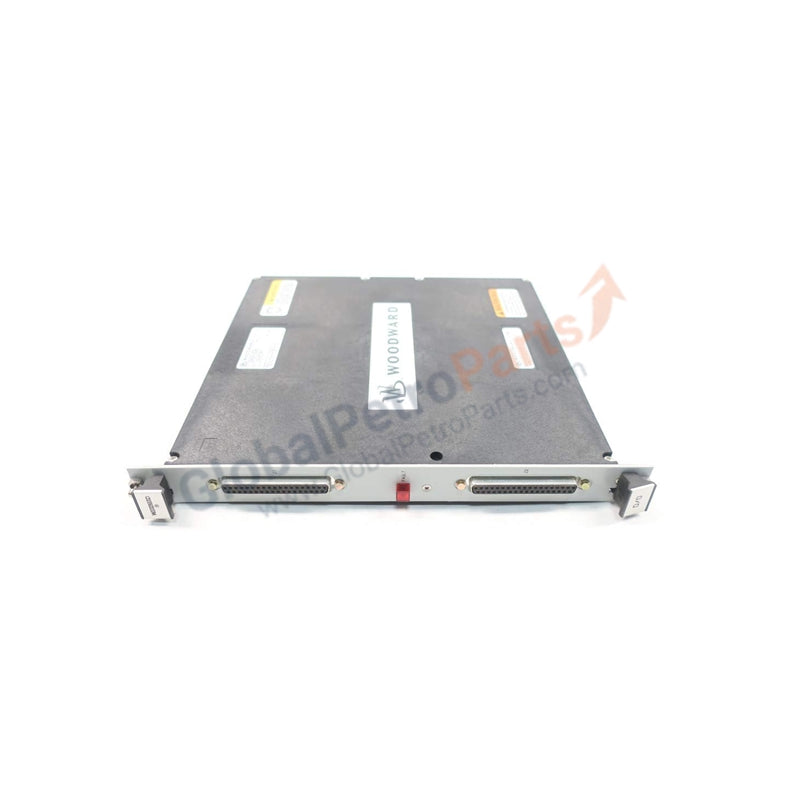

Engineered for mission-critical reliability, the 5464-654 (MicroNet: 5464-654) provides 64 independent discrete output channels. Each channel is equipped with galvanic isolation and integrated surge suppression to protect the system backplane from field-side electrical transients. A prominent red "Fault" LED on the front panel provides immediate visual diagnostics, while the dual-port design supports redundant control paths to maximize system uptime. Adhering to Google E-E-A-T principles for industrial functional safety, this module is built with conformal-coated electronics to withstand the corrosive and high-vibration environments typical of oil and gas or marine engine rooms.

Detailed Technical Specifications

The 5464-654 (5464-654) provides the highest density of discrete control available for the MicroNet series.
