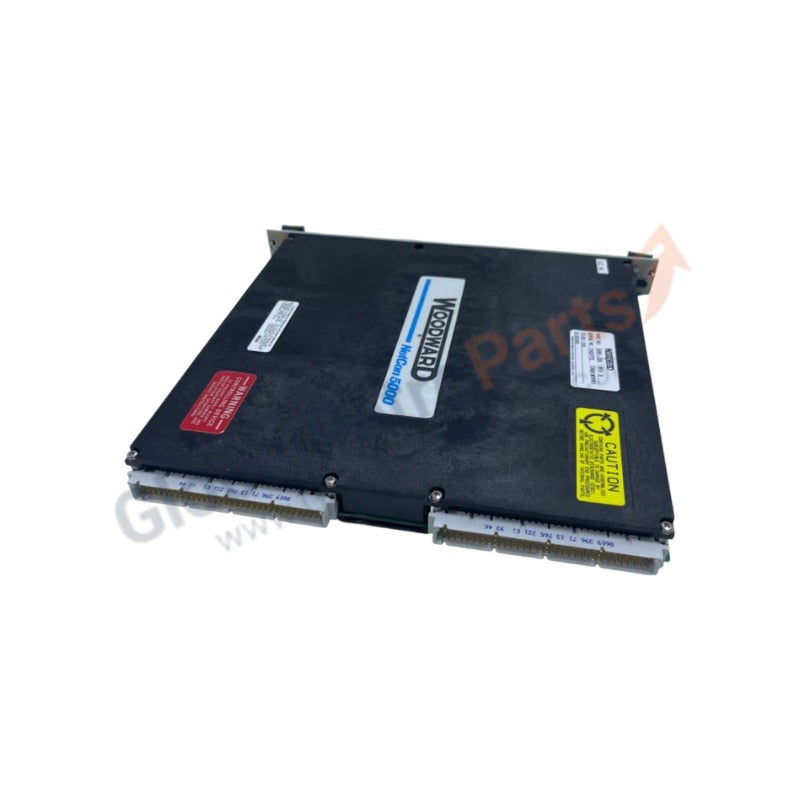

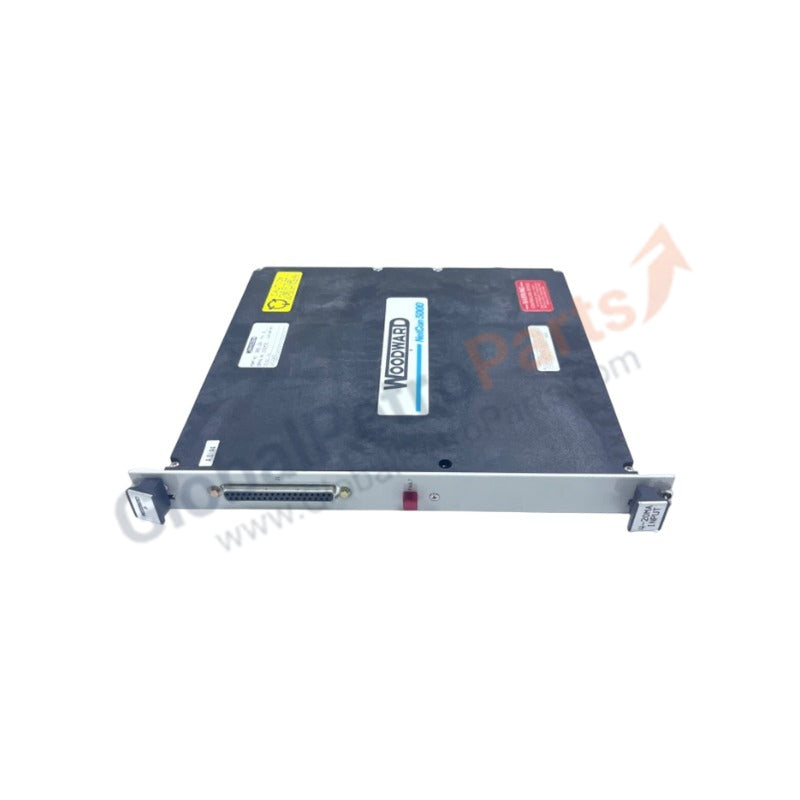

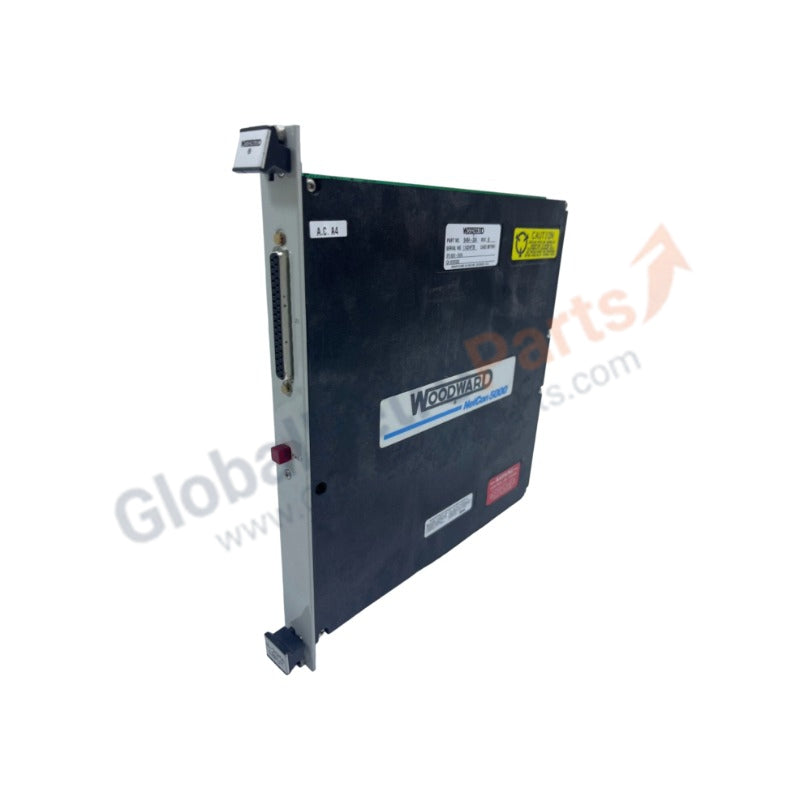

Woodward MicroNet 5464-334 Isolated 4-20mA Analog Input Module

Product Overview

The Woodward 5464-334 functions as a high-performance Isolated Analog Input Module designed specifically for the MicroNet and MicroNet TMR (Through-Modular Redundancy) control systems. This module interfaces external 4–20 mA process signals with the control CPU, providing critical data for steam, gas, and hydraulic turbine management. By utilizing galvanic isolation for each of its 8 channels, the 5464-334 eliminates ground loops and protects the system logic from field-side electrical noise, ensuring absolute signal integrity in mission-critical energy applications.

Technical Specifications

This module adheres to rigorous industrial standards to maintain precision in harsh EMI environments.

Engineering Advantages

The 5464-334 module addresses specific hardware challenges faced by control engineers in power plants and refineries:

• Elimination of Ground Loops: Individual channel isolation prevents common-mode noise interference. This feature proves vital when sensors reside at varying distances and ground potentials across a large facility.

• Enhanced Fault Tolerance: The MicroNet TMR compatibility allows three 5464-334 modules to work in parallel. If one signal path fails, the system votes out the erroneous data without tripping the turbine, maximizing plant uptime.

• Streamlined Calibration: The module features factory-calibrated inputs that maintain high accuracy over the entire operating temperature range. This reduces the need for manual field offsets during commissioning.

• Rugged EMI Shielding: Woodward builds this hardware to withstand the electromagnetic interference typical of high-voltage generator environments, preventing "signal jitter" in critical feedback loops.

FAQs

• Can the 5464-334 replace non-isolated Woodward input modules?

  Yes, you can integrate this module into existing MicroNet racks to improve noise immunity. However, you must verify that the application software configuration matches the 5464-334’s specific hardware ID to ensure the CPU recognizes the new isolated inputs.

• How does the module handle a "broken wire" scenario?

  The module automatically detects input currents falling below a predefined threshold (typically <2 mA). It immediately flags a "Latched Fault" or "Open Loop" status to the CPU, allowing for safe shutdown or fail-safe logic execution.

• Does this module require external power for the 4-20mA loops?

  The 5464-334 typically acts as a passive receiver (sinking input). You must ensure the field transmitters or external power supplies provide the necessary loop current.

• What is the significance of the "100% Brand New" status for this part?

  Since the 5464-334 controls high-value turbine assets, using refurbished units risks latent component fatigue. Our "Brand New" guarantee ensures the internal capacitors and opto-isolators possess their full rated lifespan, preventing unexpected failures.
