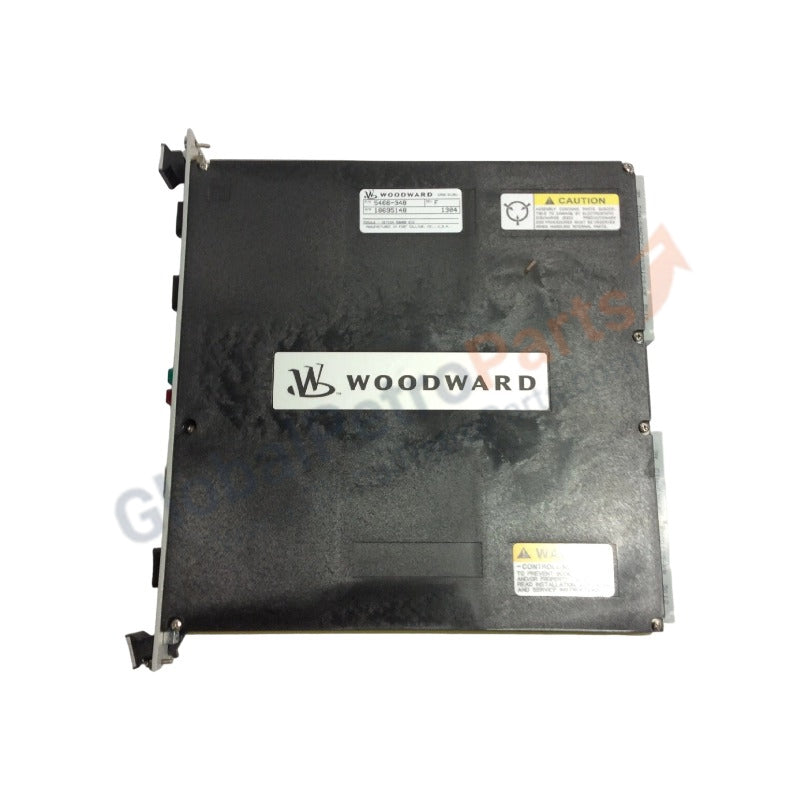

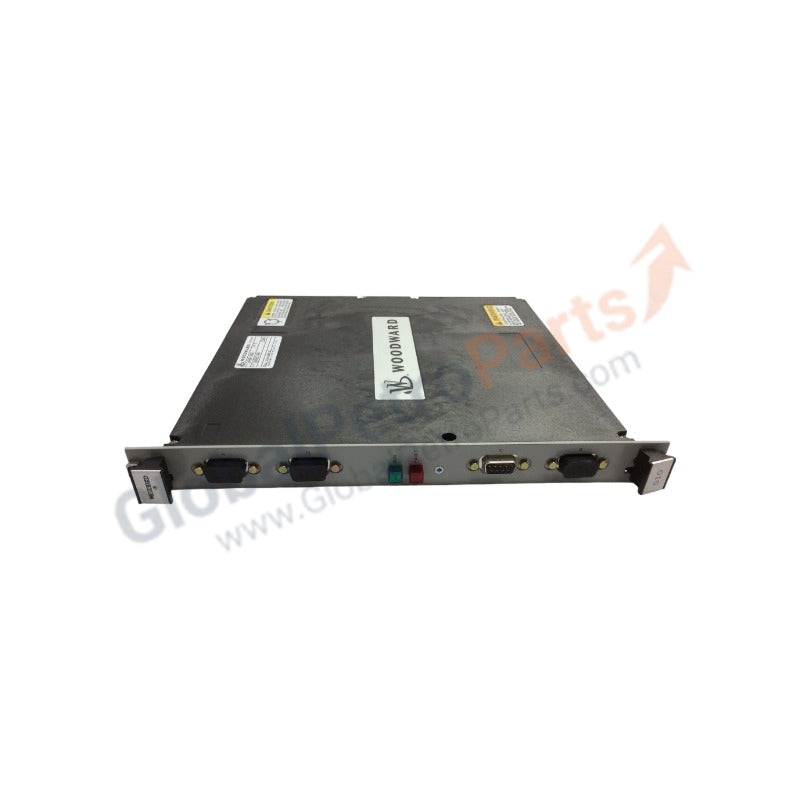

5466-348 Woodward MicroNet CPU5200 Controller Module

Product Overview

The Woodward 5466-348 serves as the primary computational engine for the MicroNet Simplex and TMR (Triple Modular Redundant) control platforms. This CPU5200 module utilizes a high-speed Freescale MPC5200 processor to execute sophisticated turbine control algorithms and manage high-speed I/O communication across the VME backplane. It provides the necessary processing power for real-time logic, diagnostics, and multi-protocol communication, making it the central intelligence for gas, steam, and hydro turbine governors.

Technical Specifications

This module integrates robust processing architecture with versatile connectivity to maintain deterministic control cycles.

Engineering Advantages

The 5466-348 CPU module solves several critical operational challenges in heavy industrial environments:

• Deterministic Real-Time Execution: The PowerPC-based MPC5200 processor handles complex mathematical calculations for turbine fuel curves and load sharing without latency. This ensures the system responds instantly to grid frequency changes or sudden load drops.

• Redundant Network Architecture: Two independent Ethernet ports allow for redundant connections to the Human Machine Interface (HMI) or Plant DCS. This configuration prevents a single cable failure from blinding the operators to turbine status.

• Streamlined Maintenance Access: The front-mounted RS-232 and Micro-USB ports simplify field service. Engineers can connect Woodward Service Tools directly to the module to download application software or run real-time diagnostics without pulling the card from the rack.

• Robust Thermal Management: Woodward designed the 5466-348 with industrial-grade heat dissipation components. It operates reliably within the forced-air cooled MicroNet chassis, preventing the processor throttling that often plagues lower-quality computational hardware in high-temperature power plant enclosures.

FAQs

• Can the 5466-348 be used as a direct replacement for older MicroNet CPUs?

  The 5466-348 is a CPU5200 variant. While it fits the standard MicroNet physical footprint, you must verify that your GAP (Graphical Application Programmer) software version supports the MPC5200 architecture. Some legacy applications may require a minor recompile to run on this hardware.

• What is the purpose of the dual CAN ports on this module?

  The CAN ports allow the 5466-348 to communicate with Woodward’s distributed I/O nodes and digital actuators. This enables high-speed, local-loop control for valve positioning and peripheral sensing without taxing the main Ethernet network.

• How does the module signal a hardware failure?

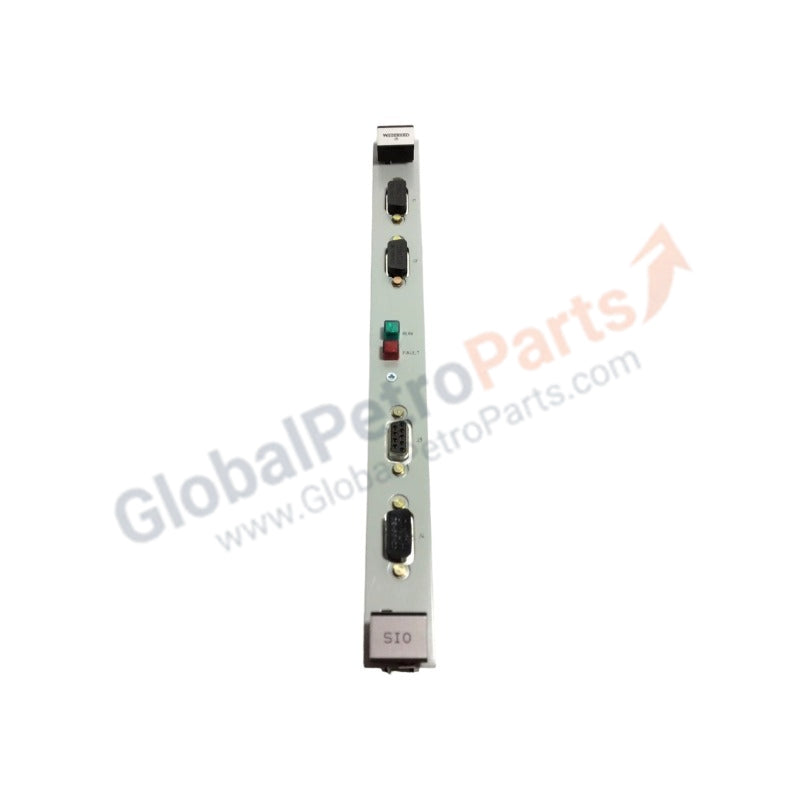

  The front panel includes a series of status LEDs. A "Fault" LED illuminates if the internal self-test fails, while the "Run" and "Status" indicators provide immediate visual confirmation of the operating system's health and CPU loading.

• Is it safe to hot-swap the 5466-348?

  Woodward recommends powering down the specific MicroNet rack section before replacing the CPU module. In TMR systems, you can replace a single CPU while the other two maintain turbine control, provided you follow the specific Woodward TMR maintenance protocols to ensure the new CPU synchronizes correctly.
