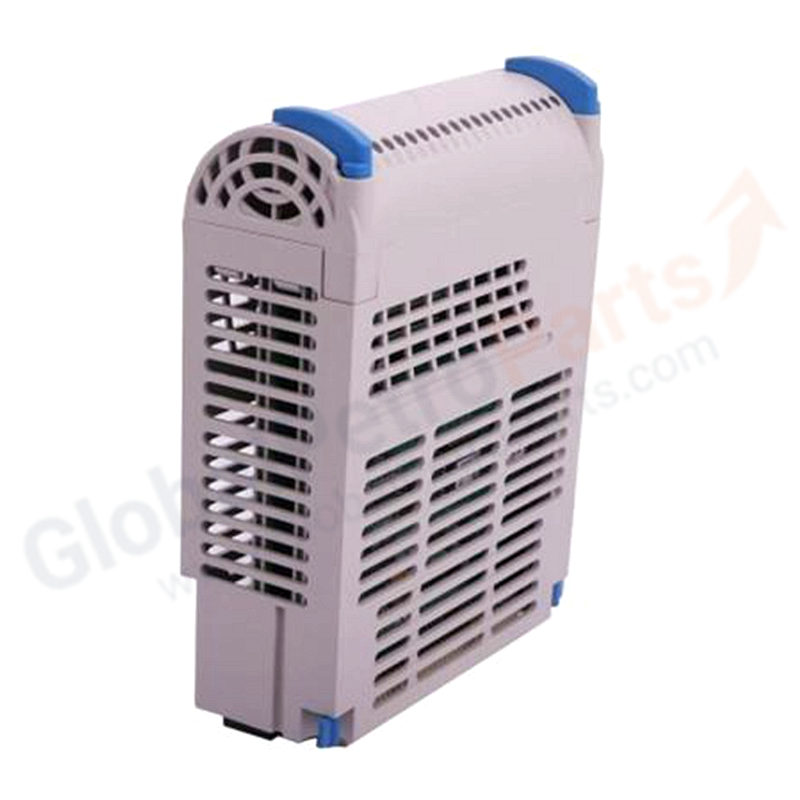

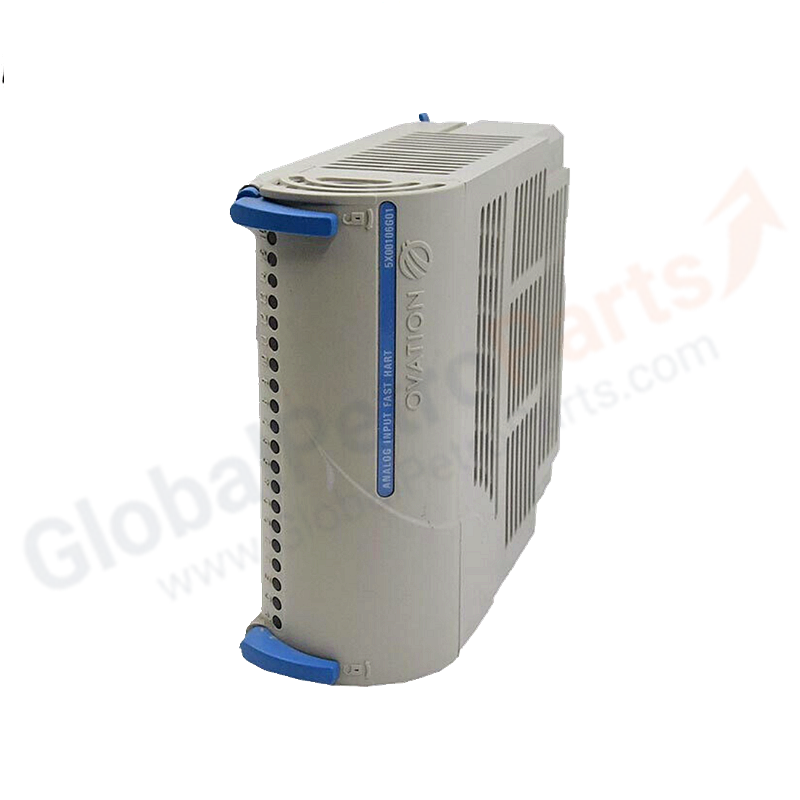

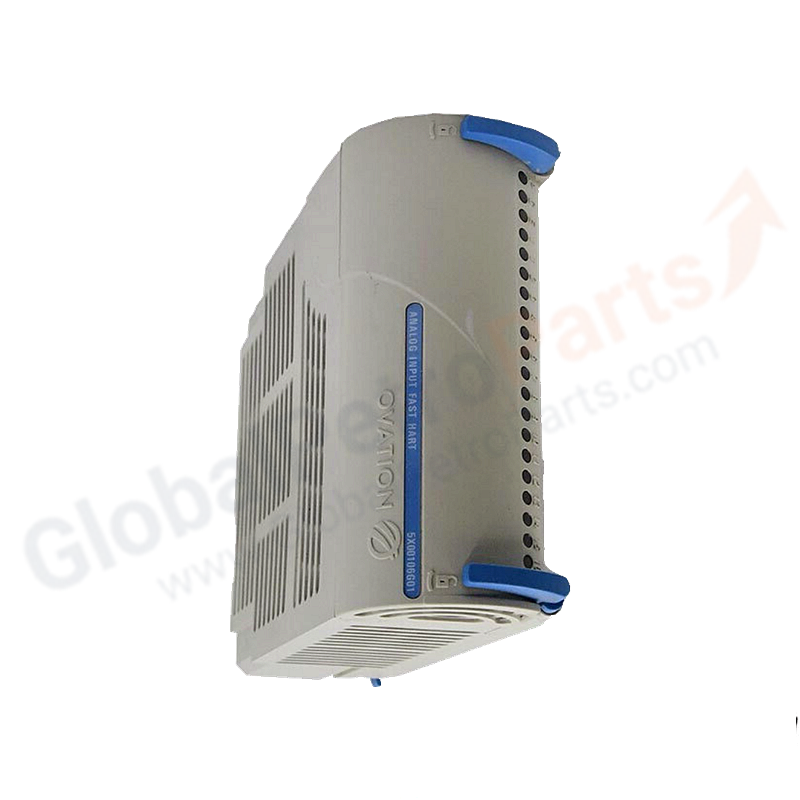

5X00109G01 | Ovation HART 8-Channel Analog Input Personality Module

Overview

The Emerson 5X00109G01 is a Personality Module (PMOD) for the Ovation™ HART High-Performance Analog Input (HHPAI) module. It contains eight fused inputs with user-accessible jumpers that configure each channel for field-powered or local-powered transmitters on an individual basis.

Clarification: The 5X00109G01 is the Personality Module (Pmod), not the Electronics Module (Emod). The corresponding Emod is 5X00106G01. Both are required for complete HHPAI functionality.

Technical Specifications

• Manufacturer: Emerson (Westinghouse)
• Model: 5X00109G01
• Type: PMOD ASSY, Analog Input 8CH HART Hi-Perf.
• Channels: 8 fused analog input channels
• Configuration: User-accessible jumpers for field-powered or local-powered transmitters (per channel)
• Compatibility: Ovation 3.4.0 and later; Ovation 3.3.1 with patch OVA331063
• Weight: 200 g

Key Features

• Eight individually configurable fused input channels
• Jumpers select field-powered or local-powered transmitter mode per channel
• HART communication support for smart transmitter diagnostics
• Modular personality design allows quick field reconfiguration

FAQ

Q: What is the difference between 5X00109G01 and 5X00109G02?
A: 5X00109G02 adds active current limiting in two-wire mode and requires Ovation 3.4.0+ or patched 3.3.1. 5X00109G01 is the standard version.

Q: Do I need the electronics module too?
A: Yes. The 5X00109G01 PMOD must be paired with the 5X00106G01 Emod (Electronics Module) to form a complete HHPAI assembly.

Q: Can I mix field-powered and local-powered transmitters?
A: Yes, the jumper configuration allows each of the 8 channels to be independently set for either field-powered or local-powered operation.

Installation Guidelines

1. Set the channel jumpers on the PMOD to the desired power mode (field or local) before installation.
2. Insert the PMOD into the paired Emod (5X00106G01) within the Ovation I/O chassis.
3. Connect field wiring to the terminal block per the channel power configuration.
4. Verify HART device communication via Ovation configuration software.

Selection Tips

• Order 5X00109G01 for standard HART analog input personality functionality.
• For applications requiring active current limiting, upgrade to 5X00109G02.
• Always verify Ovation software version compatibility before ordering.
