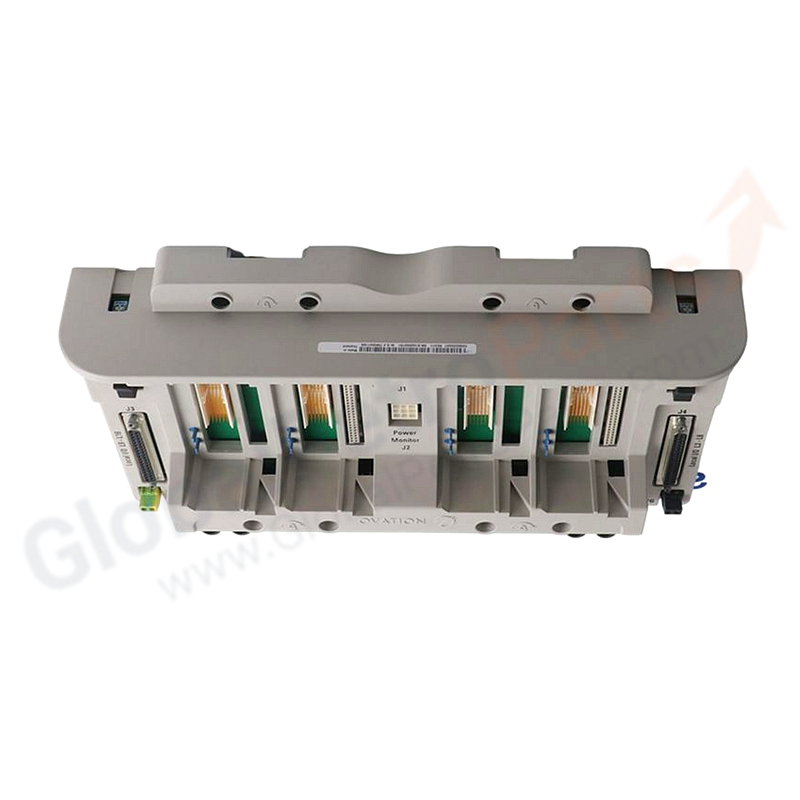

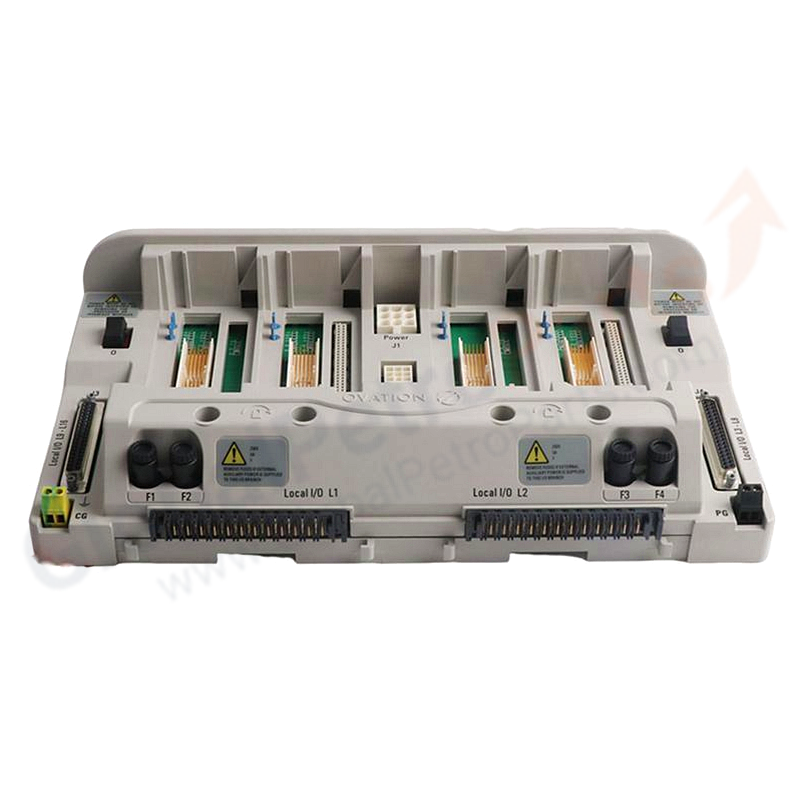

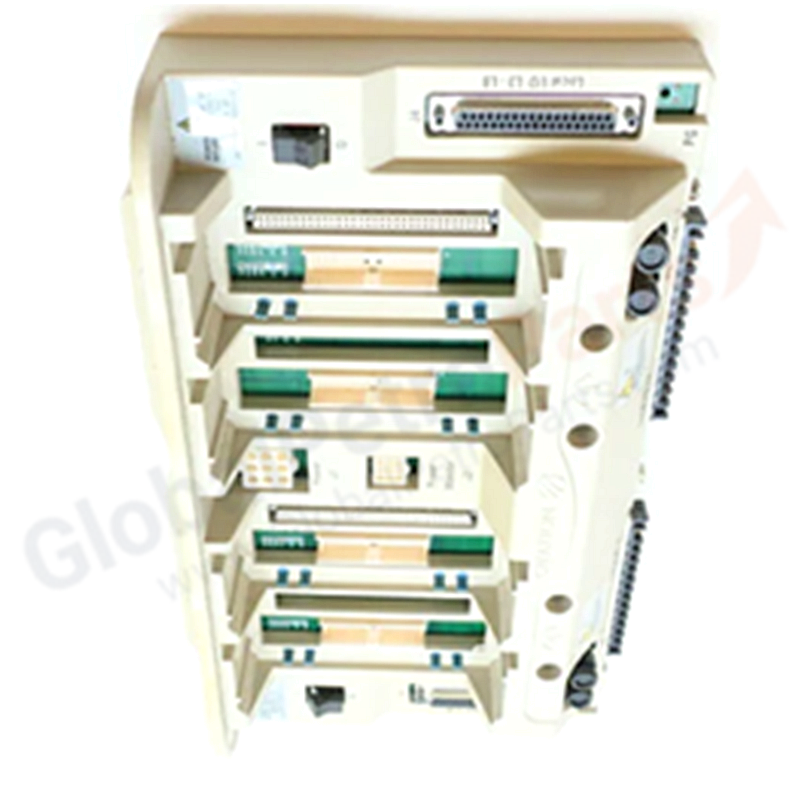

5X00225G01 | Emerson Ovation | Controller Base Rack

Overview

The Emerson 5X00225G01 is a Controller Base Assembly for the Ovation™ distributed control system. It provides a robust platform for mounting control modules, distributing power, and routing signals efficiently across demanding industrial environments.

Technical Specifications

• Manufacturer: Emerson (Westinghouse)
• Model: 5X00225G01
• Type: Controller Base Assembly
• Slot Capacity: 4 slots
• Input Voltage: 24 VDC (nominal)
• Power Range: 21.6 VDC – 26.4 VDC
• Processor Support: MPC7457 (in paired modules)
• Memory Capacity: 512 MB DDR RAM
• Data Memory: 48 MB (in paired modules)
• Communication Interface: Remote I/O network interface
• Dimensions: 34.3 × 7.6 × 22.9 cm (13.5 × 3.0 × 9.0 in)
• Weight: 1.16 kg (2.55 lbs)

Environmental & Safety Ratings

• Operating Temperature: 0 °C to +60 °C
• Storage Temperature: −40 °C to +85 °C
• Humidity: 5 % – 95 % non-condensing

Key Features

• 4-slot base for Ovation controller modules
• Integrated power distribution and backplane communication
• Supports processor redundancy with paired module configurations
• Remote I/O network interface for distributed architectures

FAQ

Q: How many modules fit in this base?
A: The 5X00225G01 accepts up to 4 controller modules.

Q: Does this base support redundant processors?
A: Yes, it supports paired redundant processor modules for high-availability applications.

Q: What processor is supported?
A: The MPC7457 processor is supported in paired module configurations.

Installation Guidelines

1. Mount the base assembly in a standard equipment cabinet.
2. Connect 24 VDC power to the input terminals.
3. Insert controller modules into the slots, ensuring proper alignment.
4. Verify backplane connectivity and power distribution before energizing.

Selection Tips

• Order 5X00225G01 for Ovation controller installations requiring a 4-slot base.
• Verify processor module compatibility (MPC7457) before ordering.
• For larger I/O counts, consider bases with higher slot capacity.
