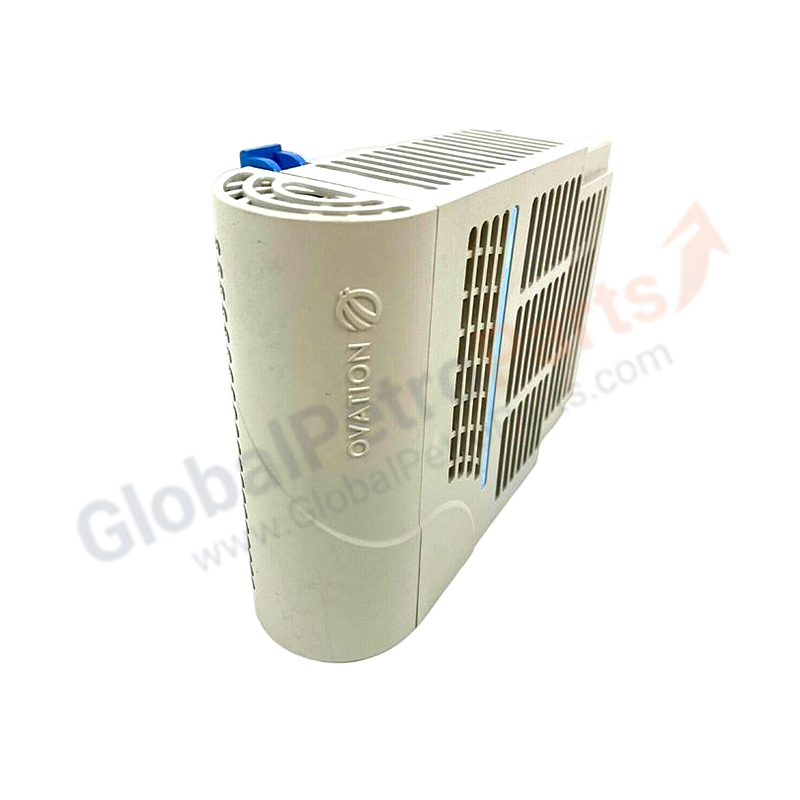

5X00490G23 Analog Input Module | Emerson Ovation

Product Summary

The Emerson Ovation 5X00490G23 is an Analog Input Module for the Emerson Ovation distributed control system (DCS). It provides analog input channels (typically 8 or 16 depending on configuration) for acquiring process variables from field transmitters and sensors, converting 4-20mA or other analog signals into digital data for process control and monitoring.

Core Specifications

• Model Number: 5X00490G23
• Type: Analog Input Module
• Input Signal: Analog (e.g., 4–20 mA)
• Channels: Typically 8 or 16 (depending on specific configuration)
• Resolution: 16-bit (typical for Ovation analog modules)
• Accuracy: ±0.1% of full scale (typical)
• Isolation: Channel-to-channel and channel-to-system
• Power Supply: 24V DC
• Manufacturer: Emerson (formerly Westinghouse)

Key Features

• Analog input for process variable acquisition from field transmitters
• High-resolution 16-bit A/D conversion for precise measurement
• Galvanic isolation prevents ground loops and electrical interference
• Compatible with standard 4-20mA and other analog signal types
• Rack-mountable for standard Ovation I/O cabinet installation

Environmental Limits

• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -40°C to +85°C (-40°F to 185°F)
• Humidity: 0% to 95% RH, non-condensing

Frequently Asked Questions

What is the 5X00490G23 used for?

It is an analog input module for Emerson Ovation DCS, acquiring process variables from field transmitters and sensors via 4-20mA or other analog signals.

How many channels does the 5X00490G23 have?

The module typically provides 8 or 16 channels depending on specific configuration. Verify exact channel count with your supplier before ordering.

What is the difference between 5X00490G23 and 5X00070G01?

The 5X00070G01 is a high-speed analog input module with 14-bit resolution and up to 1000 Hz sampling. The 5X00490G23 is a standard analog input module with 16-bit resolution for general-purpose process measurement.

What is the difference between 5X00490G23 and 5X00058G01?

The 5X00058G01 is a HART-enabled analog input module for smart transmitter communication. The 5X00490G23 is a standard analog input module without HART communication.

Installation Guide

Safety Precautions

• De-energize the Ovation rack before installation
• Use proper ESD protection when handling the module
• Verify field device signal type and range before wiring

Step-by-Step Procedure

1. Power down the Ovation I/O rack
2. Align the module with the rack slot and insert firmly
3. Secure the module retaining clips
4. Connect analog field wiring to the terminal base unit
5. Power up and verify module status LEDs
6. Calibrate input channels via Ovation engineering station

Selection Tips

• Verify channel count (8 vs 16) with your supplier before ordering
• For HART smart transmitter communication, select 5X00058G01 or 5X00106G01 instead
• For high-speed sampling (>100 Hz), consider 5X00070G01
• Ensure input signal range matches field transmitter output (4-20mA, 0-10V, etc.)

Related Part Numbers

• 5X00490G23 — Analog Input Module (this part)
• 5X00070G01 — 4-20mA Analog Input Module, High Speed
• 5X00058G01 — HART Analog Input Module
• 5X00106G01 — HART High-Performance Analog Input Module
• 5X00062G01 — HART Analog Output Module
