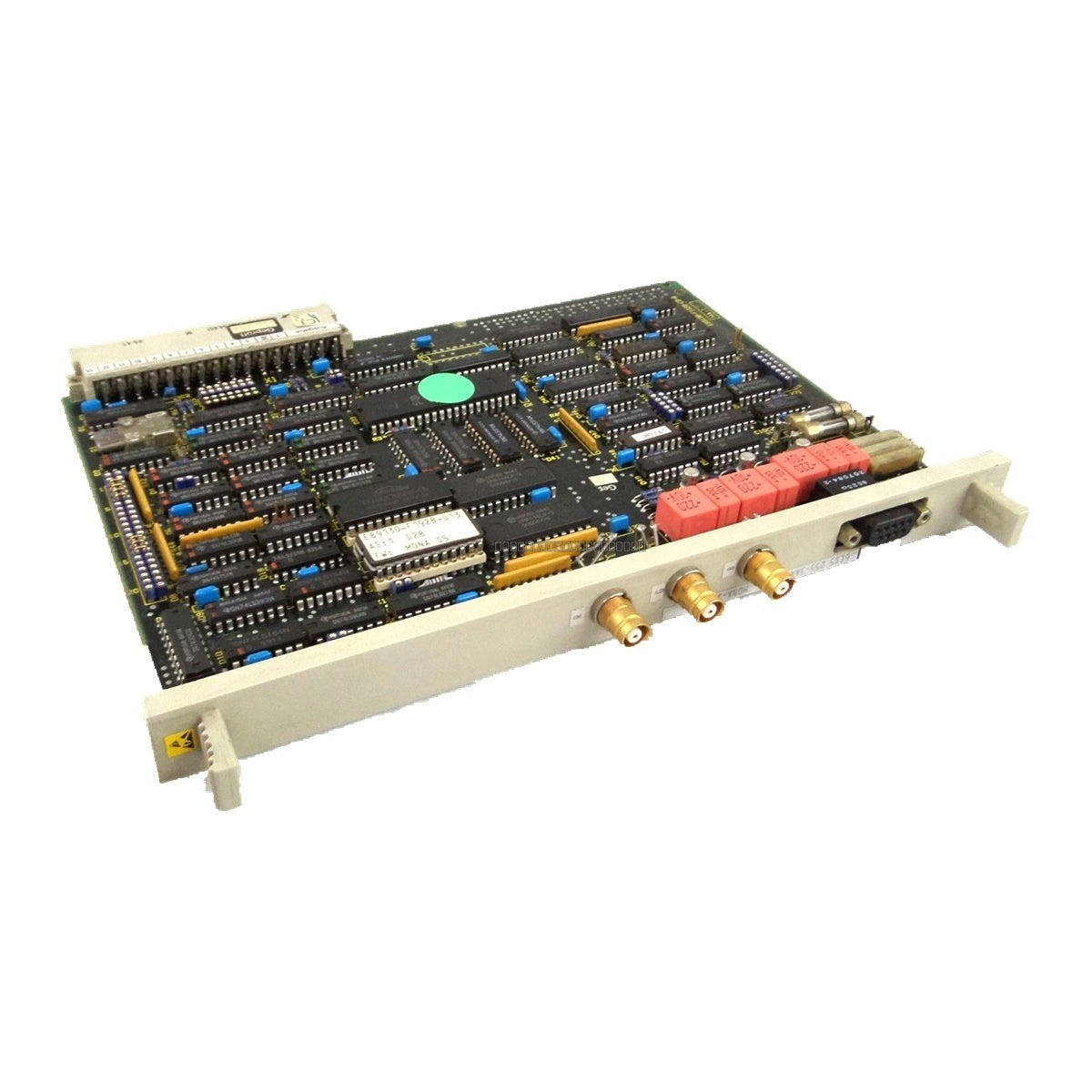

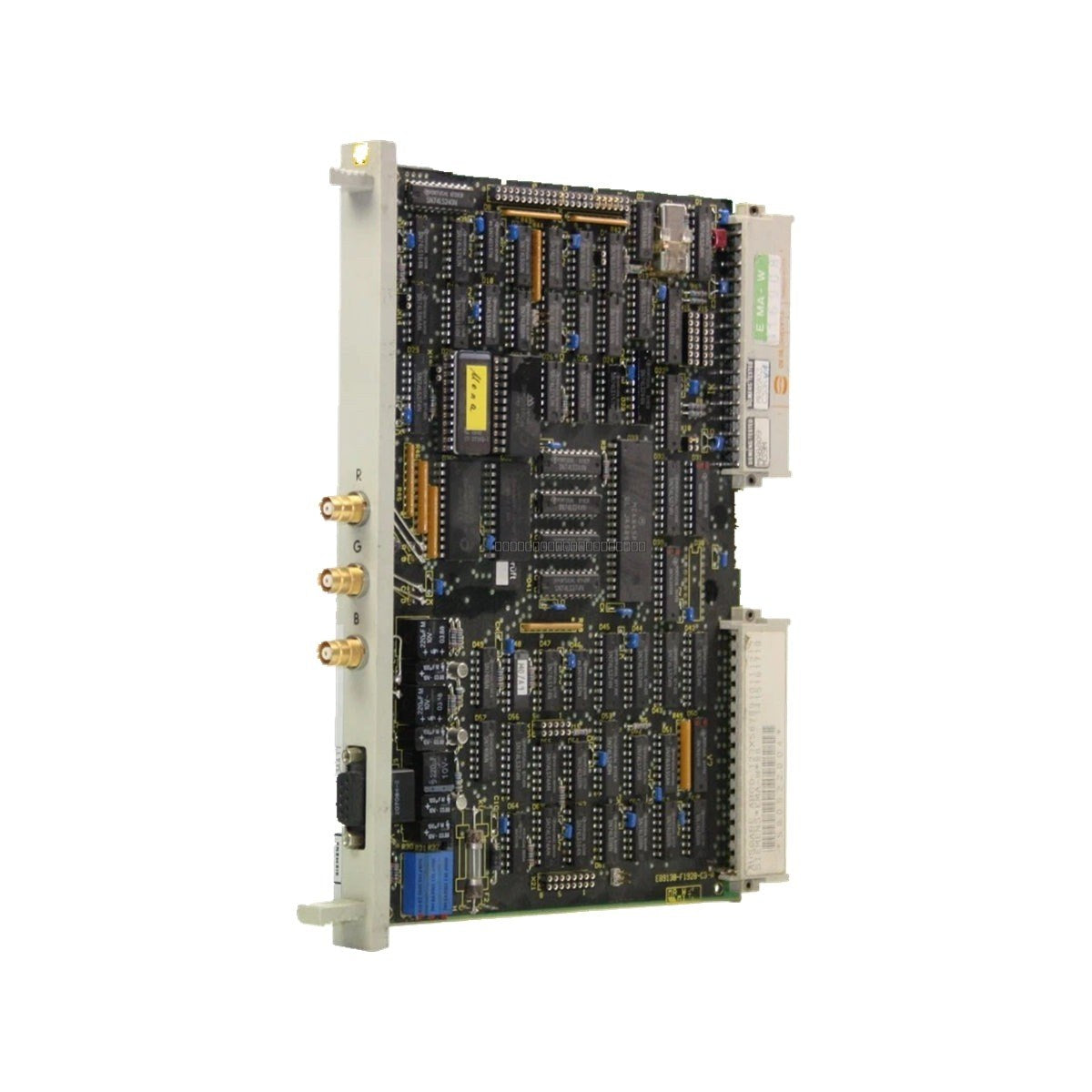

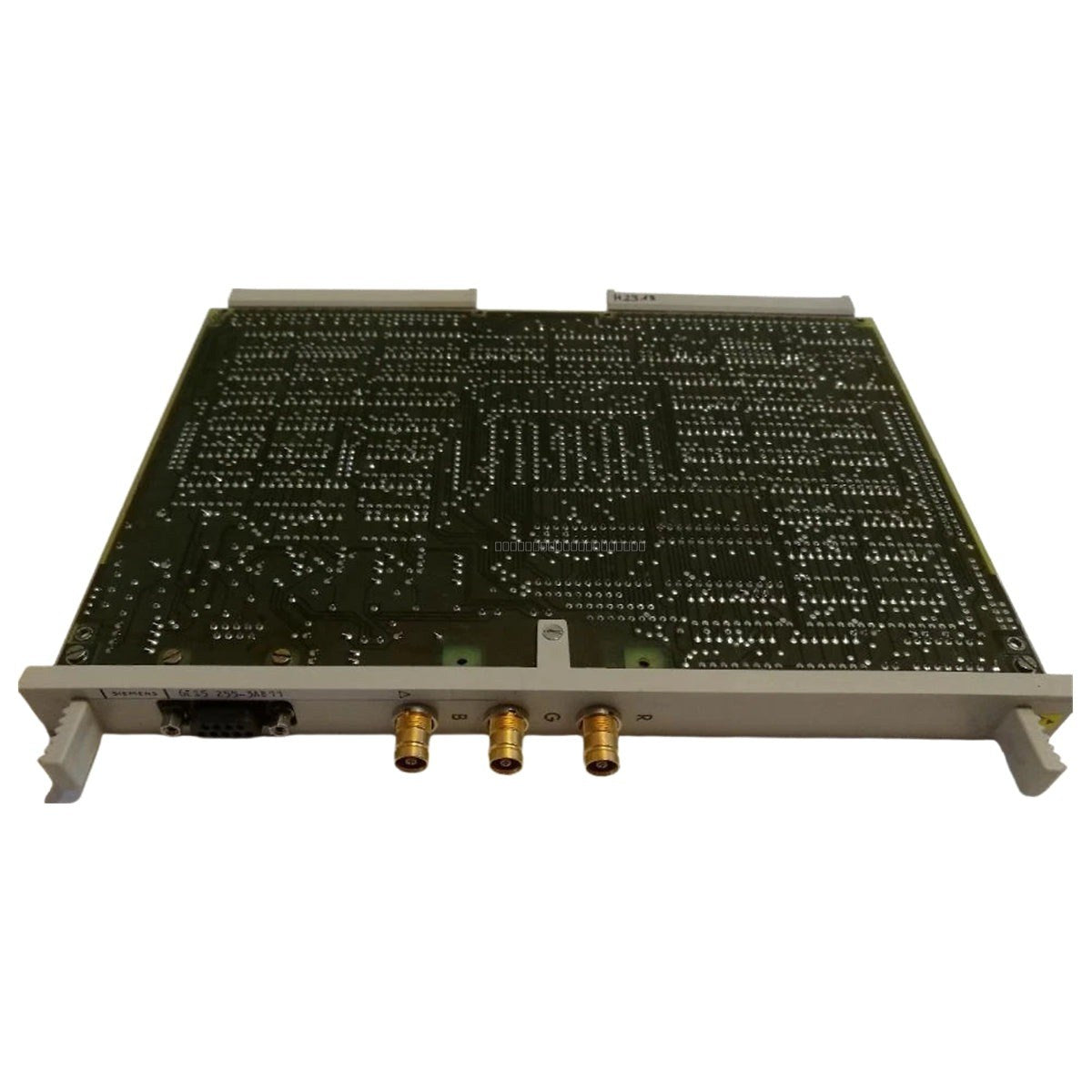

Siemens 6ES5255-3AA11 Simatic S5 Interface Module

Description

The Siemens 6ES5255-3AA11 is an intelligent interface processor submodule belonging to the MONA IP255 series for Simatic S5 industrial controllers. This module is engineered to process specialized high-frequency signals and coordinate field data communication with the host central processing unit. It is widely utilized in automation networks within continuous production sectors, such as chemical processing, thermal power generation, and mining operations, to ensure stable signal telemetry and prevent data loss.

Features

• Designed for integration with Simatic S5 automation systems.
• High-frequency signal processing capabilities with impedance matching.
• Robust metal housing for industrial rack-mount environments.
• Standard backplane bus interface for power and data synchronization.
• Reliable serial protocol routing and diagnostic support.

Applications

This module is typically deployed in industrial environments requiring precise high-frequency signal acquisition and stable communication between field devices and the S5 controller. Common applications include data telemetry in power plants, process monitoring in chemical facilities, and signal conditioning in heavy industrial automation.

Technical Specifications

Installation Guidelines

• Ensure the S5 rack is powered down before inserting or removing the module to prevent electrical damage.
• Slide the module into the designated S5 rack slot, ensuring the backplane connector is fully seated.
• Use shielded coaxial cabling for the three signal inputs to maintain signal integrity and minimize EMI.
• Ensure the 9-pin Sub-D connector is securely fastened and that the cable routing is kept clear of high-voltage lines.
• Verify that the module is properly grounded through the rack chassis to maintain noise immunity.

FAQ

What is the primary function of the 6ES5255-3AA11?

This module acts as an intelligent interface processor for the Simatic S5 system, specifically designed to handle high-frequency signal processing and serial data communication between field instruments and the PLC.

Is this module compatible with other Simatic series?

The 6ES5255-3AA11 is specifically designed for the Simatic S5 MONA IP255 architecture and is not directly compatible with S7 or later generation Siemens controller platforms.
