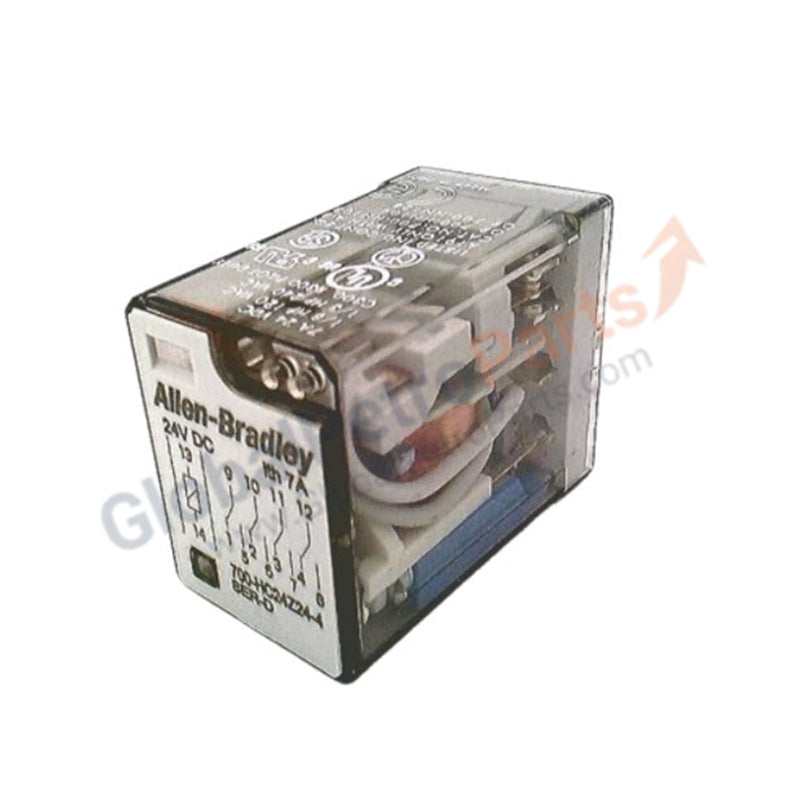

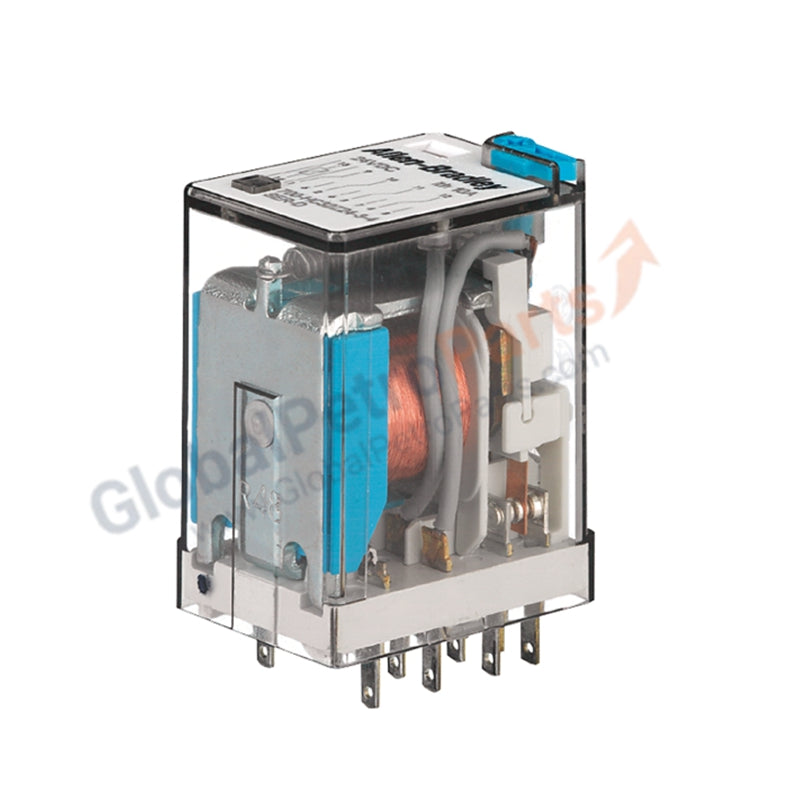

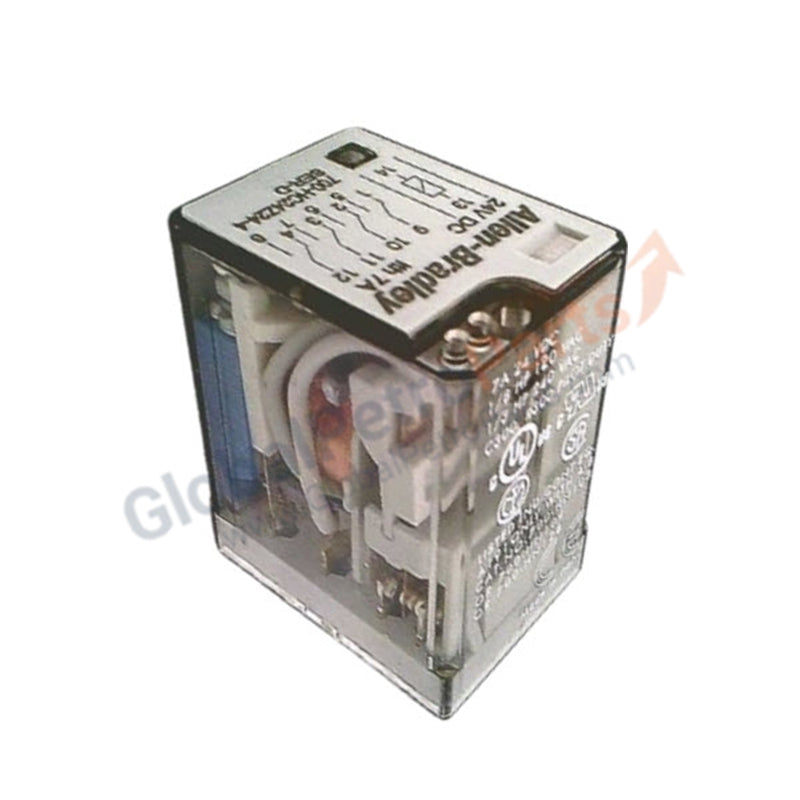

700-HC24Z24 | Allen-Bradley | 700 Series Miniature General Purpose Ice Cube Relay

Product Overview

The Allen-Bradley 700-HC24Z24 operates as a high-density, miniature general-purpose "ice cube" relay within commercial and heavy-industrial control panels. This square-base component isolates sensitive controller outputs from inductive field loads, multiplies critical control signals across independent branches, and manages auxiliary power circuits. It handles low-voltage DC control logic natively, serving as a fundamental interlocking building block in modern automated machinery.

Technical Specifications

Engineering Advantages

• Speeds Up Commissioning and Diagnostic Checks: The integrated push-to-test button and manual override lever allow field technicians to actuate the internal contacts manually without applying external coil voltage. This physical bypass simplifies loop testing, speeds up field wiring verification, and isolates circuit faults during scheduled maintenance shutdowns.

• Maximizes Contact Density: The 4-pole configuration packs four independent switching channels into a narrow, space-saving square footprint. This compact design allows multi-circuit signal multiplication without consuming extra rail real estate inside crowded control panels.

• Provides Clear Optical Feedback: A highly visible mechanical on/off indicator shows the true position of the internal armature immediately. Panel operators check circuit status at a glance without deploying external multimeters or diagnostic probes.

• Ensures High-Integrity Electrical Connections: Heavy-duty blade-style terminals slip tightly into matching sockets, creating a high-friction physical link. This design resists vibration-induced terminal heating, prevents contact arc-tracking under high-duty cycle operations, and guarantees easy, tool-less relay replacement.

FAQs

• Can I plug this relay directly into any standard industrial relay socket?

  No. The 700-HC24Z24 utilizes a specific square-base pattern with blade-style pins. You must pair this module with a compatible Allen-Bradley Bulletin 700 socket to ensure correct pin alignment and reliable mechanical retention.

• Do you supply this component in factory-new condition?

  Yes. We guarantee this product ships as a 100% brand new, authentic original manufacturer item. Every unit arrives in its untouched original packaging, completely free from industrial wear or shelf-aging defects.

• What is the primary function of the built-in manual override lever?

  The manual override lever locks the relay contacts in an actuated state temporarily. This allows engineering teams to test downstream hardware functionality continuously during system commissioning without wiring up temporary electrical bypass jumps.
