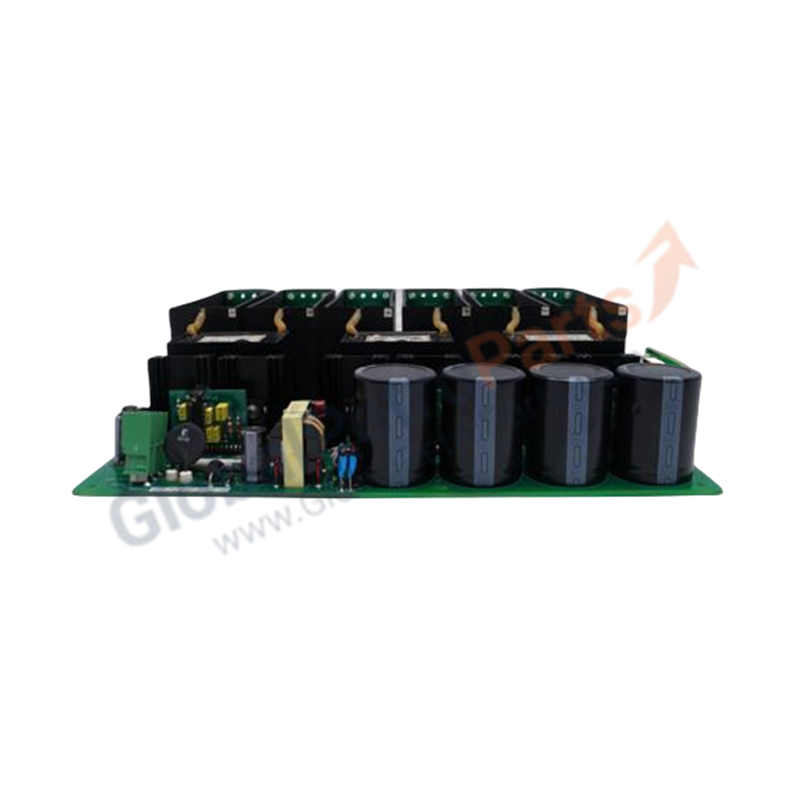

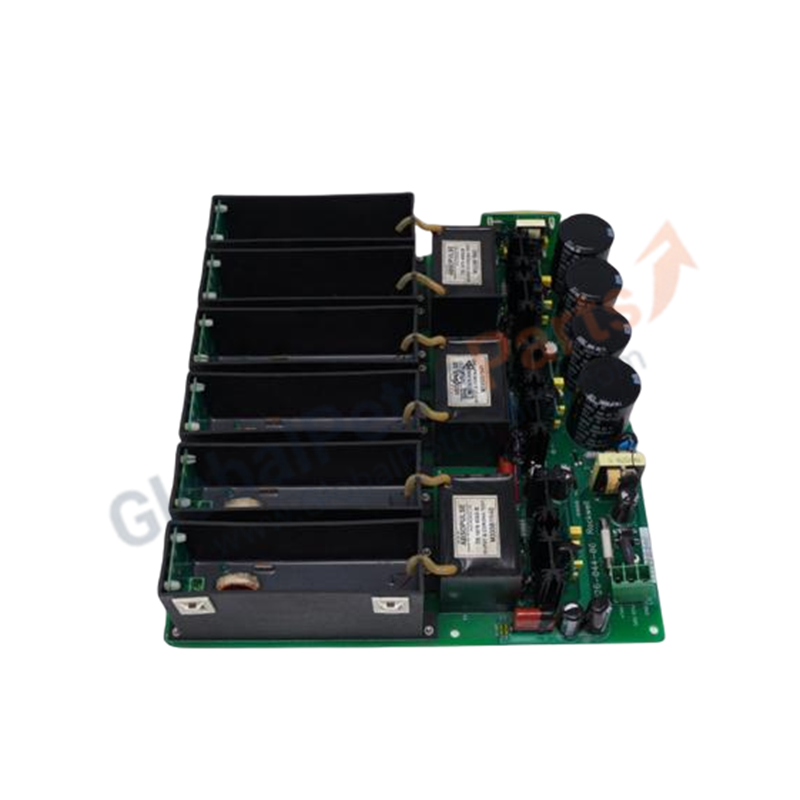

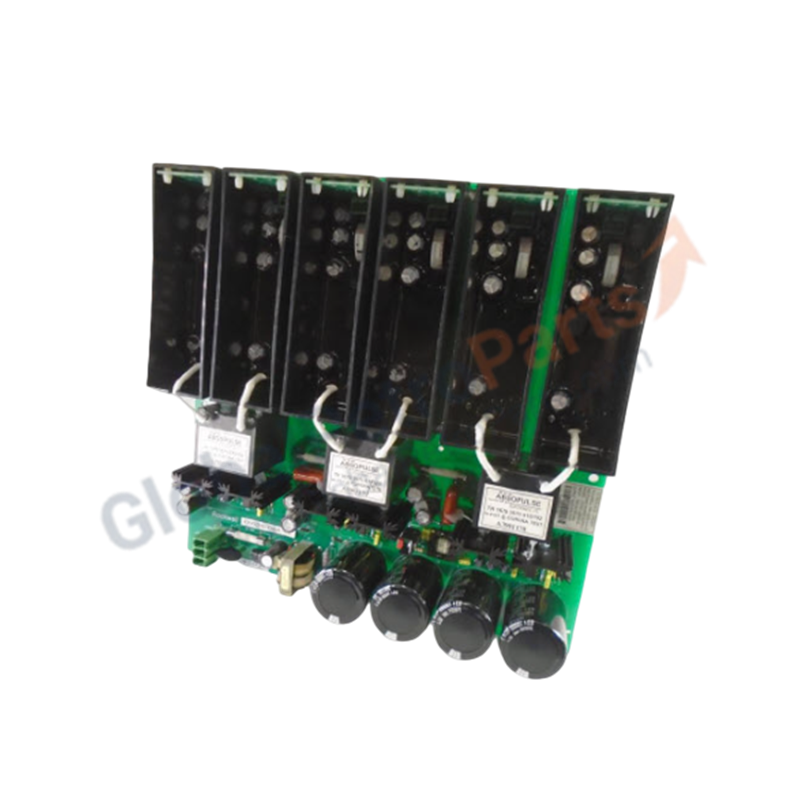

80026-044-02-R | Allen-Bradley | IGCT Board

The Allen-Bradley 80026-044-02-R, also cataloged as the 80026-044-02-R IGCT Board, operates as a dedicated hardware component for power semiconductor gate control within medium-voltage drive systems. This PC board assembly provides direct electrical execution of pulse signals required to manage Integrated Gate-Commutated Thyristor (IGCT) switching states across 2300 V, 3300 V, and 4160 V voltage classes.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks & Firmware Flash Compatibility

The 80026-044-02-R IGCT board serves as a critical interface between the drive control logic and high-power thyristor gates. Deterministic timing for gate firing pulses is maintained via on-board logic circuits, ensuring precise synchronization during commutation cycles. Firmware flash compatibility is managed through the drive's main control processor; ensure that any replacement board contains the correct firmware revision to match the specific voltage class and switching frequency requirements of the existing drive installation. Mismatched firmware may result in improper firing sequences, leading to potential thyristor stress or gate-level communication latency.

Frequently Asked Questions

Q: Does the 80026-044-02-R board support on-line hot-swapping?

A: No. High-voltage power must be fully isolated, and the DC bus must be completely discharged before attempting the removal or installation of this control board. Any attempt to interface with the board while the drive is energized carries a risk of electrical shock and damage to the gate control circuitry.

Q: How is the gate pulse timing calibrated when replacing this board?

A: Pulse timing is handled by the drive's central control logic. Upon installation of a new board, ensure all physical mounting connections are secure and verify that the gate feedback signals are within the nominal range defined in the drive's calibration procedure.

Field Installation Guidelines

• Static Protection: The 80026-044-02-R contains sensitive semiconductor components. Always use an ESD-safe wrist strap connected to a common chassis ground when handling the board to prevent latent damage from electrostatic discharge.
• Mechanical Mounting: Ensure the PCB is correctly aligned with the mounting standoffs. Tighten all hardware to maintain contact with the drive's internal grounding path, which is necessary for suppressing electromagnetic noise generated by high-voltage switching.
• Inspection: Inspect the board for physical signs of thermal degradation or oxidation on the connector pins prior to installation. Ensure that no dust or debris is present on the board surface, as moisture accumulation in high-voltage environments can lead to arcing.
• Wiring: Verify all gate driver cable connections are properly seated. Cables should be routed to maintain separation from high-current power paths to prevent induced noise in the gate control signals.
