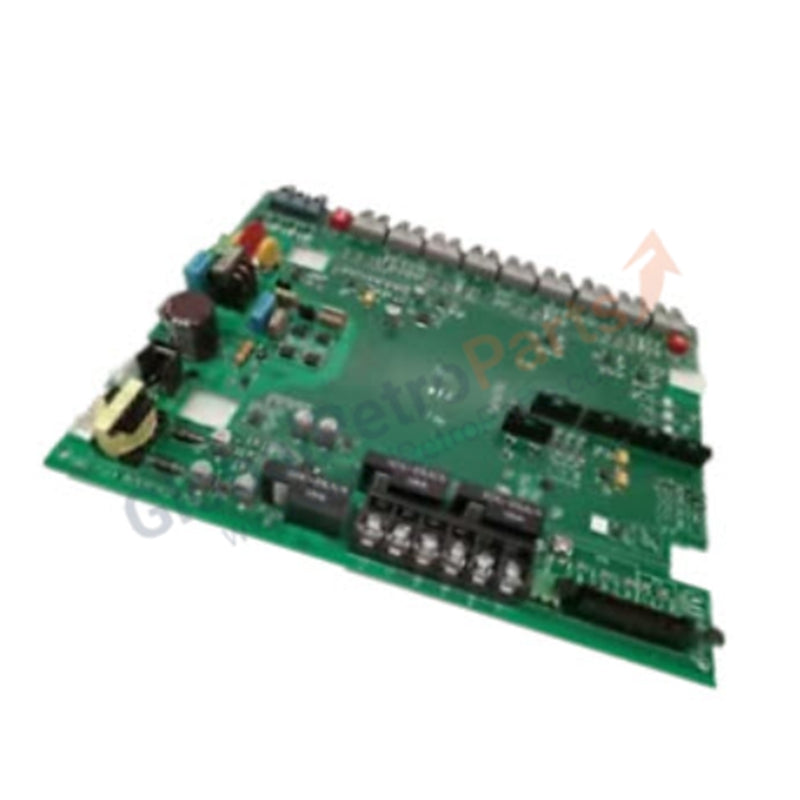

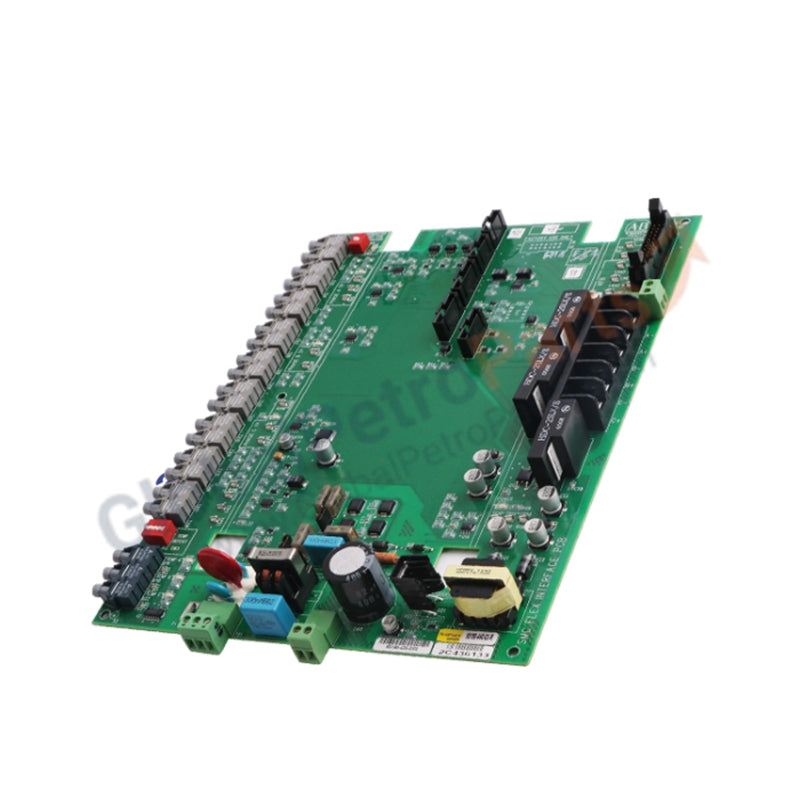

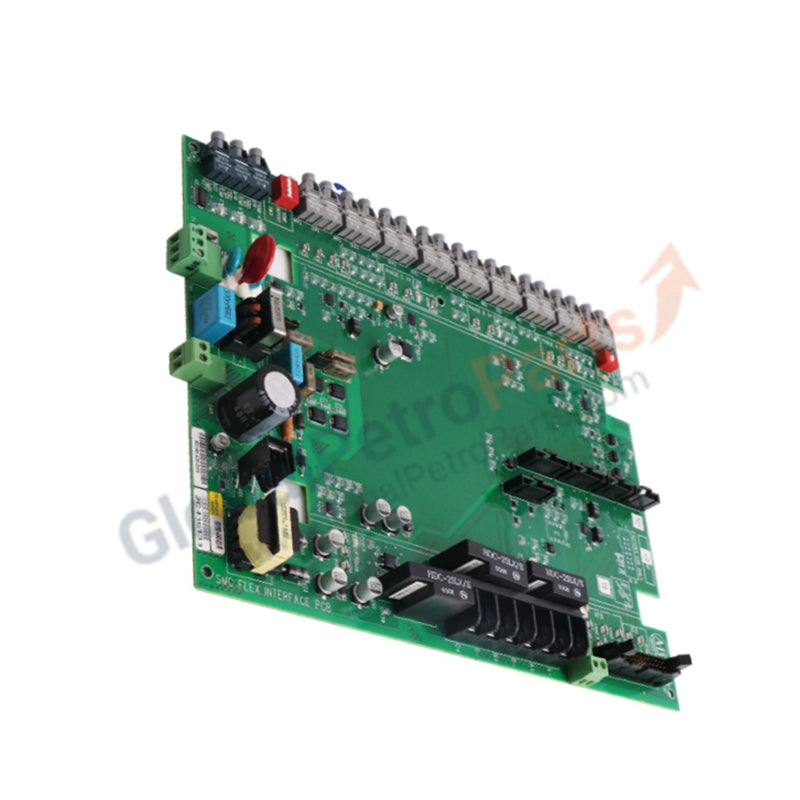

80190-440-03-R Interface Board | Allen-Bradley

Configured for signal routing within SMC Flex motor control systems, the Allen-Bradley 80190-440-03-R (80190-440-03-R Interface Board) provides direct physical execution of logic state transitions between the soft starter control circuitry and external power components.

Hardware Specifications

Harmonic Distortion Suppression

The 80190-440-03-R serves as the primary signal conditioning interface for SMC Flex soft starters, responsible for maintaining signal integrity during phase-controlled motor acceleration. The board facilitates communication between the main control processor and the thyristor gate drivers, ensuring precise firing angles to mitigate harmonic distortion during the start ramp. By isolating sensitive logic components from the power electronics stage, the interface board ensures stable gate command execution and prevents false triggering caused by noise generated during high-current motor transients.

Frequently Asked Questions

Q: Is the 80190-440-03-R compatible with all SMC Flex series soft starters?

A: Compatibility is limited to specific SMC Flex frame sizes. Users must verify the hardware revision level of the main control module to ensure compatibility before installation, as firmware and hardware interfaces are tightly integrated.

Q: What precautions are required when replacing this interface board?

A: Ensure the soft starter is fully disconnected from the AC line voltage and that the DC bus is verified to be at zero potential. Use an anti-static wrist strap during handling to prevent electrostatic discharge (ESD) damage to the surface-mounted components on the PCB.

Field Installation Guidelines

1. De-energize the soft starter unit and verify isolation via a calibrated multimeter before opening the enclosure.
2. Remove the existing interface board by unscrewing the mounting hardware; note the orientation of all ribbon cables and wiring harness connectors.
3. Install the 80190-440-03-R by aligning the board with the standoffs; seat the connectors firmly until the locking tabs snap into position.
4. Inspect the connections to ensure no pins are bent or misaligned during seating, as this will lead to communication failures between the control and power sections.
5. Secure all ground lugs if applicable to ensure the PCB shielding remains at cabinet potential.
