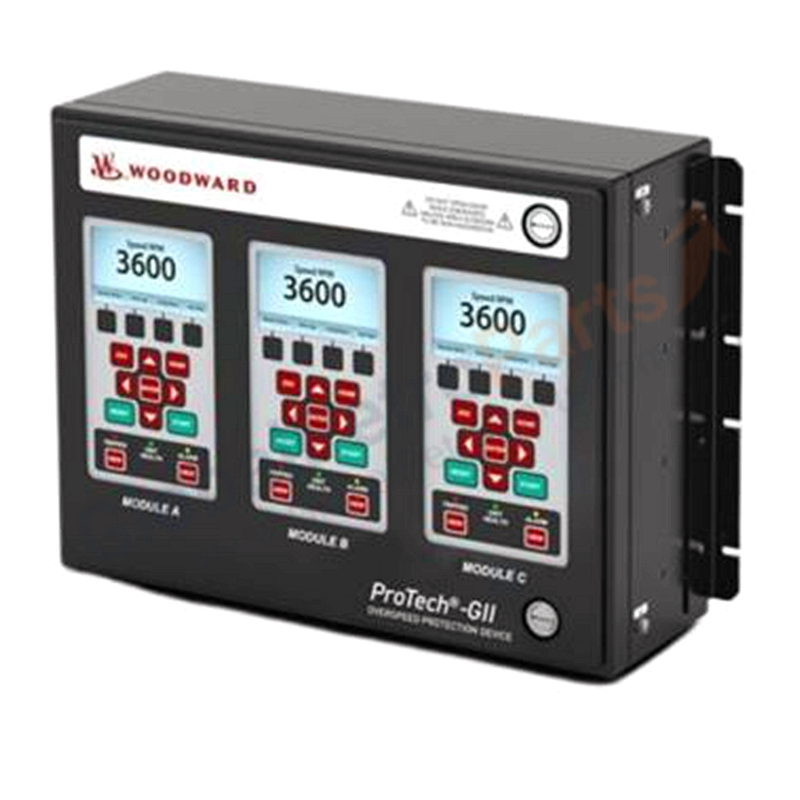

8237-1597 | Woodward | Overspeed Protection Controller

Product Overview

The Woodward 8237-1597 is an overspeed protection controller from the ProTech GII Series, designed for real-time rotational speed monitoring and emergency safety tripping of rotating machinery. It provides 2-out-of-3 (2oo3) voting architecture with dual redundant trip relays, ensuring the highest level of safety integrity for critical prime mover applications. The controller supports Modbus communication and provides a 4–20 mA speed output for integration with plant DCS/SCADA systems.

Key Technical Specifications

• Product Type: Overspeed Protection Controller
• Series: Woodward ProTech GII
• Core Function: Real-time speed monitoring and overspeed safety trip
• Safety Architecture: 2-out-of-3 (2oo3) voting logic
• Relay Outputs: Dual redundant trip relays
• Communication Protocol: Modbus RTU
• Analog Output: 4–20 mA speed readout
• Application Equipment: Steam turbines, gas turbines, hydro turbines
• Mounting: Panel mount
• Response Characteristics: High sensitivity, fast response
• Origin: USA

Key Features

• 2oo3 Voting Logic: Three independent speed-sensing channels with two-out-of-three voting for fault-tolerant protection
• Dual Redundant Trip Relays: Two independent relay outputs for critical safety shutdown
• Modbus Communication: Remote monitoring and configuration via standard industrial protocol
• 4–20 mA Speed Output: Analog signal for DCS/SCADA integration and trending
• High Sensitivity: Detects overspeed conditions with minimal delay
• Fast Response: Rapid trip actuation to prevent mechanical damage

Applications

• Steam turbine overspeed protection
• Gas turbine emergency shutdown systems
• Hydro turbine safety tripping
• Compressor and expander drive protection
• Critical rotating machinery safety systems

Installation Guide

1. Mount on panel in turbine control cabinet
2. Connect 24V DC power supply
3. Install three magnetic pickup sensors on turbine shaft
4. Wire MPU signals to controller inputs
5. Connect dual trip relay outputs to fuel/steam valve solenoids
6. Wire 4–20 mA output to DCS analog input card
7. Connect Modbus RS485 communication to plant network
8. Configure overspeed setpoints and voting logic via operator interface

FAQ

Q: What is 2oo3 voting?
A: Two-out-of-three voting means the system requires agreement from at least 2 of the 3 independent speed-sensing channels before initiating a trip, preventing false trips from single sensor failure.

Q: What is the analog output used for?
A: The 4–20 mA output provides real-time speed indication to plant DCS or SCADA systems for monitoring and trending.

Q: Can it communicate with my DCS?
A: Yes, via Modbus RTU protocol over RS485.

Model Selection Tips

• 8237-1597 is the ProTech GII overspeed controller with 2oo3 voting
• Verify your turbine requires 2oo3 architecture vs. simplex or dual redundancy
• Confirm Modbus RTU compatibility with your DCS/SCADA system
• Check magnetic pickup sensor specifications (gap, voltage output, thread size)
