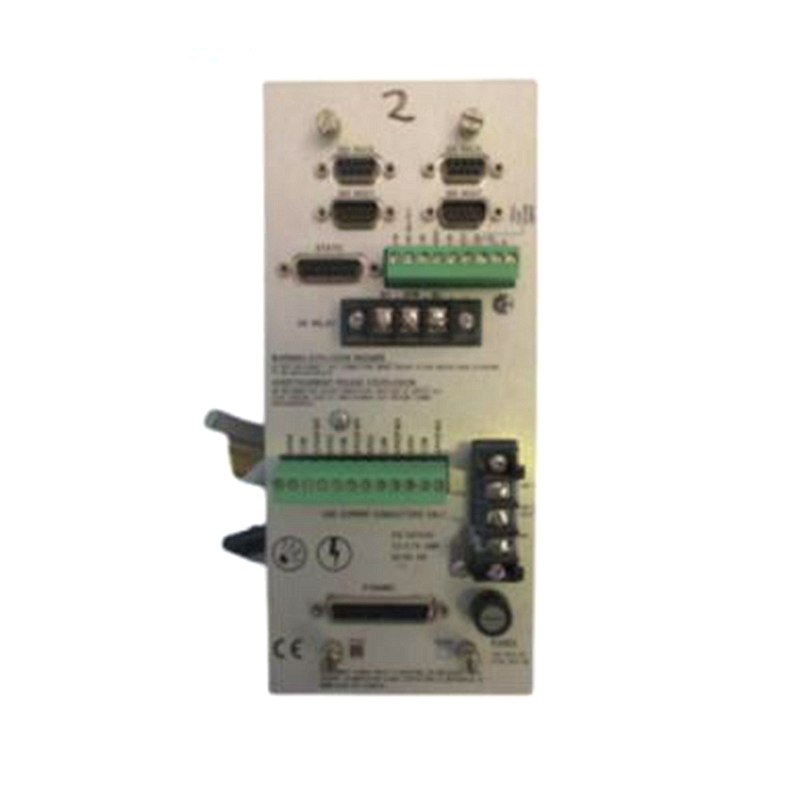

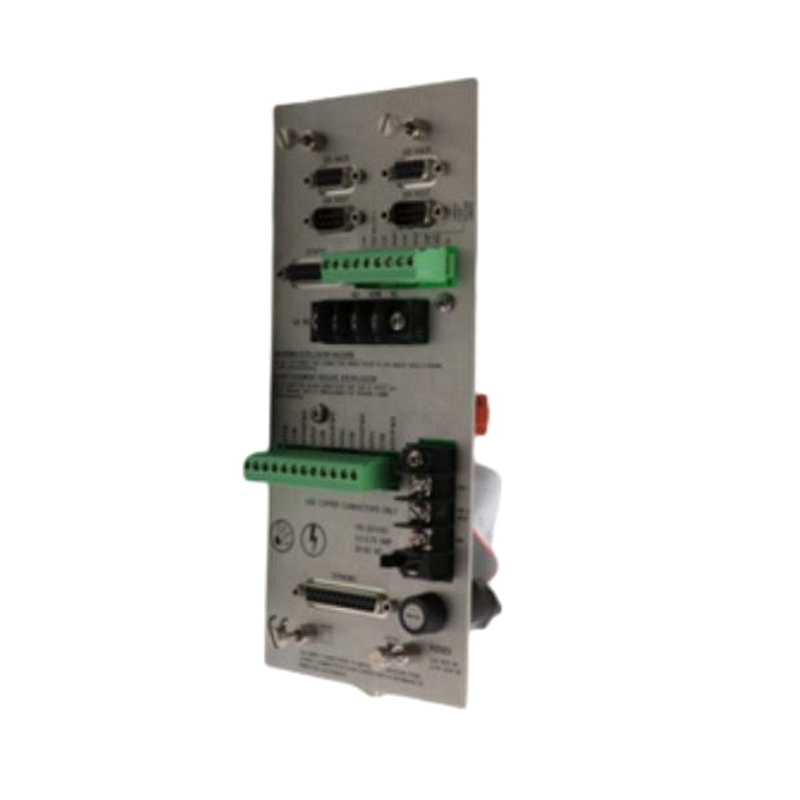

88199-01 | Bently Nevada Rear Control Panel

Product Overview

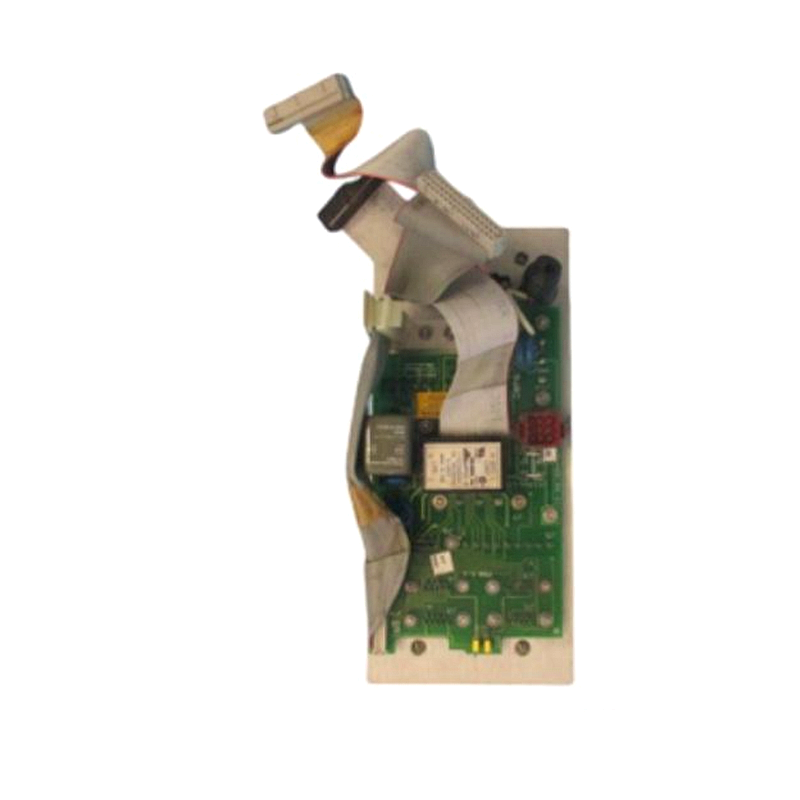

The Bently Nevada 88199-01 is a Printed Wiring Assembly (PWA) component within the Bently Nevada 3300 Series machinery protection system. The PWA designation indicates this is a circuit board assembly used within a larger monitor module. The 88199-01 is also referenced as PWA 88286-01J in some documentation, indicating it may be a revision or variant of the base 88199 design.

Key Specifications

• Manufacturer: Bently Nevada (Baker Hughes)
• Product Family: Bently Nevada 3300 Series
• Type: Printed Wiring Assembly (PWA) / Circuit Board Assembly
• Part Number: 88199-01
• Alternate Reference: PWA 88286-01J (revision/variant)
• System Compatibility: Bently Nevada 3300 Series Monitoring System

Features & Benefits

• OEM Quality: Manufactured to Bently Nevada's exacting standards for reliability and performance in harsh industrial environments.
• Modular Repairability: As a PWA component, it enables cost-effective module repair rather than full module replacement.
• 3300 Series Proven Design: Part of the field-proven 3300 monitoring system with extensive operational history.

Typical Applications

• Internal component for 3300 series monitor modules
• Module repair and refurbishment
• Spare parts inventory for 3300 system maintenance

Installation Guide

1. Qualified Personnel Only: PWA replacement should be performed by qualified electronic technicians familiar with Bently Nevada equipment.
2. ESD Protection: Use proper electrostatic discharge (ESD) protection when handling the PWA. Work on a grounded ESD mat and wear a grounded wrist strap.
3. Module Disassembly: Remove the host monitor module from the 3300 rack. Disassemble the module housing per Bently Nevada service documentation.
4. PWA Replacement: Carefully remove the failed PWA and install the replacement 88199-01. Ensure all connectors are properly seated and retaining hardware is secured.
5. Reassembly and Testing: Reassemble the module and install it in the 3300 rack. Perform functional tests to verify proper operation.

FAQ

Q: What module does the 88199-01 PWA belong to?
A: The 88199-01 is a PWA component used within 3300 series monitor modules. For the exact module association, consult the Bently Nevada 3300 series service manual or contact Bently Nevada technical support with the host module part number.

Q: What is the difference between 88199-01 and 88286-01J?
A: The 88286-01J appears to be a revision or variant designation of the 88199-01 PWA. Both refer to the same base circuit board design with potential minor differences in component revision or firmware.

Q: Can I replace the PWA myself?
A: PWA replacement requires qualified electronic technicians with ESD protection and familiarity with Bently Nevada equipment. Improper handling can damage the PWA or the host module. For warranty coverage, repairs should be performed by authorized Bently Nevada service centers.

Selection Tips

• The 88199-01 is a replacement component, not a standalone module. Verify it is the correct PWA for your specific 3300 monitor module before ordering.
• When ordering replacement PWAs, provide the host module part number and serial number to ensure compatibility.
• For modules under warranty, contact Bently Nevada authorized service for repair rather than attempting field replacement.
• Consider maintaining a spare module (rather than just a PWA) for faster field replacement and reduced downtime.
