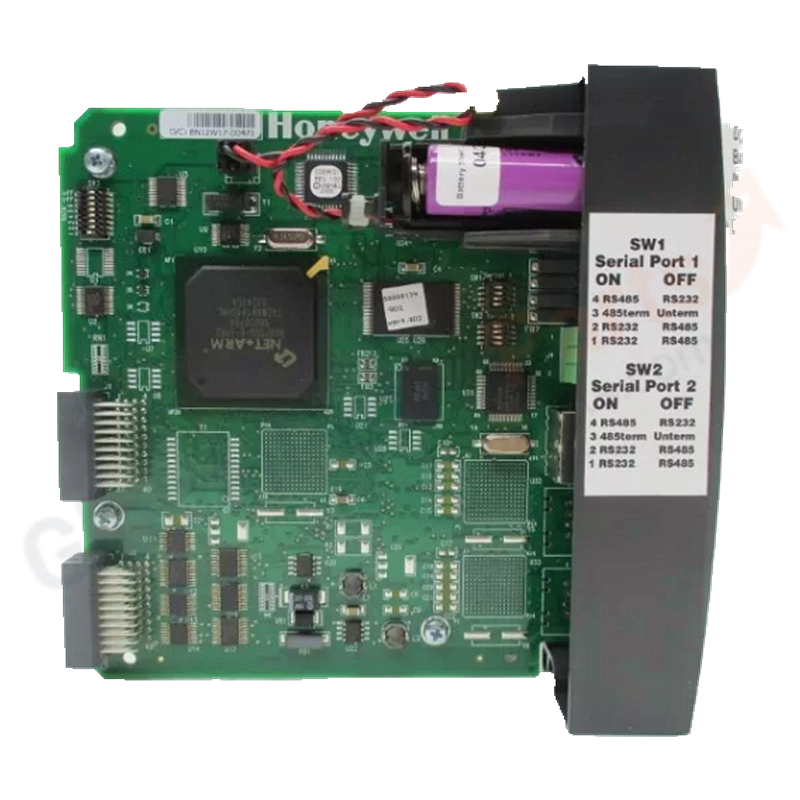

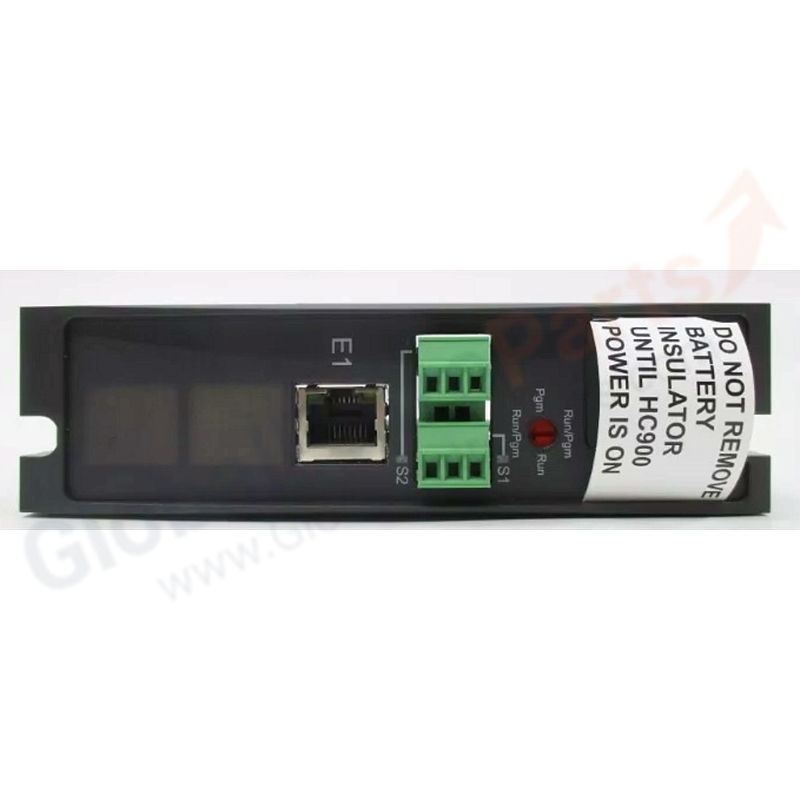

900C32-0244-00 | Honeywell HC900 Controller C30 CPU Module

Product Overview

The Honeywell 900C32-0244-00 is a C30 CPU Controller Module for the Honeywell ControlEdge HC900 hybrid control platform. As the central processing unit of the HC900 system, this module executes control strategies, manages I/O communication, and provides real-time process control for industrial automation applications. The C30 controller supports up to 32 control loops and 1920 I/O points, making it suitable for small to medium-scale process control applications in industries such as thermal processing, water treatment, and manufacturing automation.

Key Features

• C30 CPU Architecture: Compact controller with integrated processing and communication
• 32 Control Loops: Supports PID and advanced control strategies
• 1920 I/O Points: Scalable I/O capacity for diverse applications
• Multiple Communication Ports: Ethernet and serial interfaces for system integration
• Hot-Swap Capability: Replaceable with power on for minimal downtime
• Non-SIL Rated: Standard process control applications (for SIL-rated, use 900C30S series)

Technical Specifications

• Model: 900C32-0244-00
• Type: C30 CPU Controller Module
• Series: ControlEdge HC900
• Control Loops: Up to 32
• I/O Capacity: Up to 1920 points
• Communication: Ethernet, serial ports
• Programming: CODESYS IEC 61131-3, Function Block Diagram (FBD), Ladder Logic
• Memory: Non-volatile storage for application and configuration data
• Dimensions: 137 mm H × 38.1 mm W (5.4" H × 1.5" W)
• Weight: 320 g
• Mounting: Chassis slot mount
• Operating Temperature: 0°C to +60°C (standard)
• Approvals: CE, UL, CSA

Installation Guide

1. Chassis Preparation: Install in compatible HC900 rack (900R04, 900R08, or 900R12 series)
2. Slot Assignment: Insert CPU module into designated controller slot
3. Power Connection: Ensure rack power supply (900P01 series) is properly connected
4. Communication Setup: Connect Ethernet cable for programming and HMI integration
5. Configuration: Use ControlEdge Builder software to download control strategy
6. I/O Mapping: Configure I/O modules in software and verify physical slot alignment

FAQ

Q: What is the difference between 900C32-0244-00 and 900C32-0243-00?
A: The suffix differences typically indicate firmware revisions or manufacturing batches. Both are C30 CPU modules with identical hardware specifications. Verify firmware compatibility with ControlEdge Builder software version.

Q: Can this module be used in safety instrumented systems (SIS)?
A> No. The 900C32 series is for standard process control. For SIL-rated safety applications, use the 900C30S-0360-00 Safety CPU module.

Q: What programming languages are supported?
A> ControlEdge Builder supports IEC 61131-3 languages including Function Block Diagram (FBD), Structured Text (ST), and Ladder Diagram (LD).

Selection Tips

• Use 900C32-0244-00 for standard process control applications up to 32 loops
• For larger applications (up to 64 loops), consider 900C52 (C50) or 900C72 (C70) series
• Verify ControlEdge Builder software version compatibility before ordering
• For redundant CPU configurations, use the 900RR0 redundant CPU rack with paired controllers
