9907-205 | Woodward MSLC/DSLC Hand Held Programmer Supply

Woodward 9907-205 MSLC/DSLC Hand Held Programmer Supply

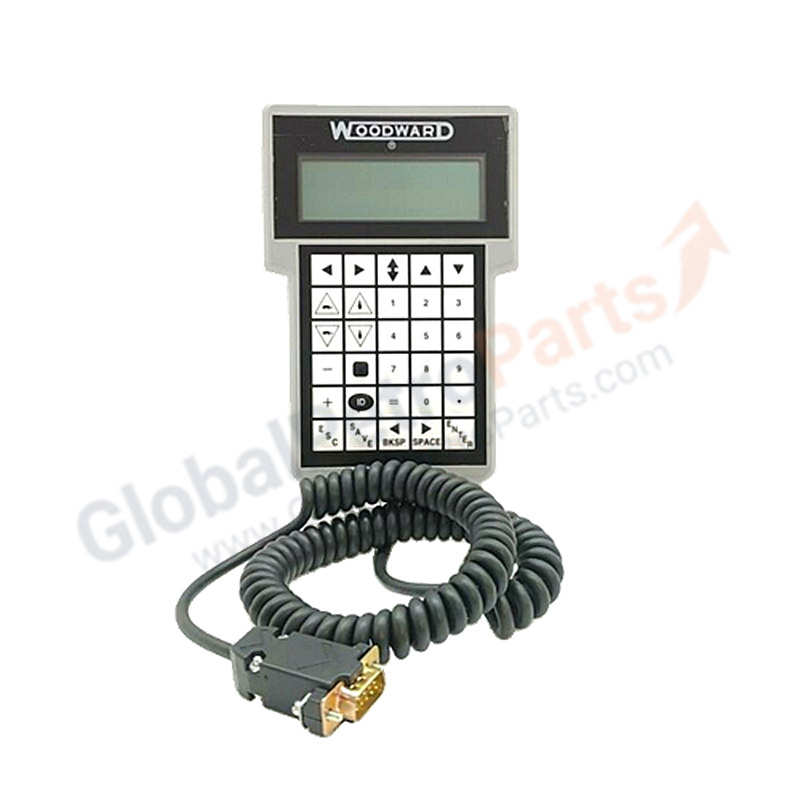

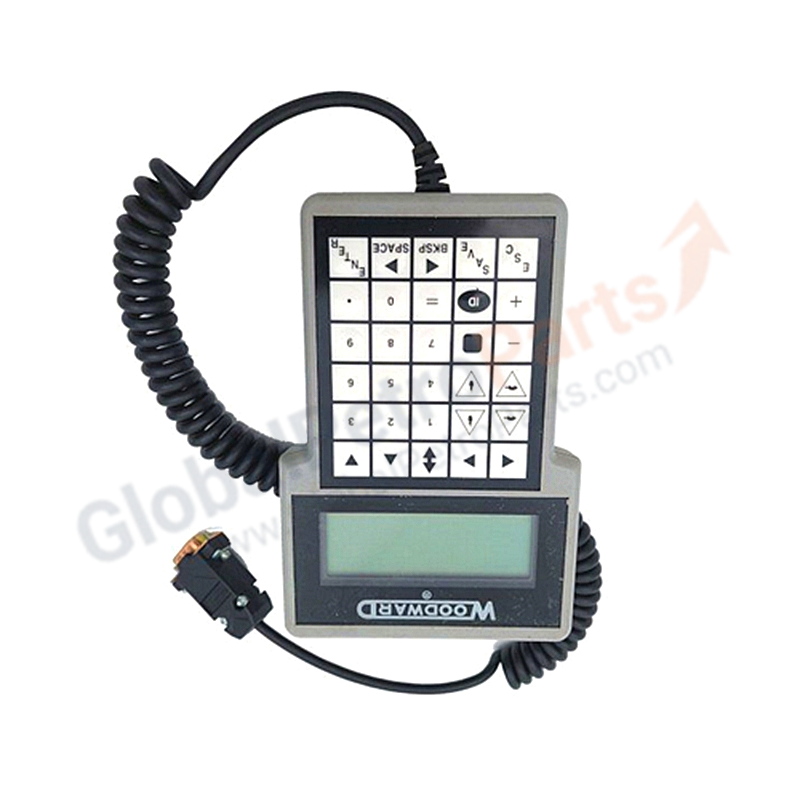

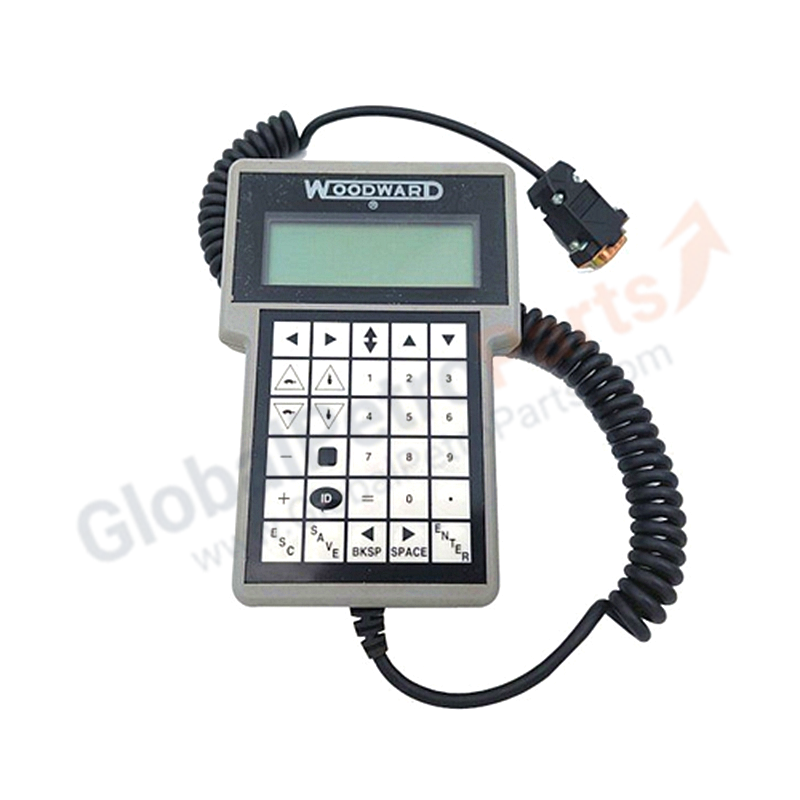

The Woodward 9907-205 is a hand-held programmer supply unit designed for Woodward's MSLC (Master Synchronizer and Load Control) and DSLC (Digital Synchronizer and Load Control) systems. It provides portable, on-site configuration, diagnostics, and real-time monitoring capabilities for generator paralleling, synchronization, and load sharing applications in power generation and industrial automation environments.

Key Specifications

• Part Number: 9907-205
• Product Type: Hand Held Programmer / Portable Configuration Tool
• Series: MSLC / DSLC / ProTech SCP
• Manufacturer: Woodward, Inc.
• Function: Portable programming, diagnostics, and monitoring for MSLC/DSLC synchronizer systems
• Processor: High-performance 32-bit microprocessor
• Control Algorithms: Multi-loop PID, feedforward, sequencing, protection logic
• Input Signal: Magnetic pickup (60–12,000 Hz) for speed sensing; 4–20 mA / 0–10 V for process control
• Output: 4–20 mA, ±20 mA, PWM
• Communication: Modbus RTU/TCP, Ethernet Global Data (EGD), CANbus, OPC
• Operating Voltage: 8–32 V DC continuous (programmer mode); 10–35 V DC (controller mode)
• Operating Temperature: -40°C to +85°C
• Accuracy: ±0.25% steady-state speed accuracy
• Response Time: Adjustable 0.1–20 seconds
• Protection: ESD resistant, overcurrent, short-circuit protection
• Dimensions: 512 × 325 × 129 mm (controller enclosure); handheld unit more compact
• Weight: Approx. 1.2 lbs (controller); handheld unit lighter
• Certifications: CE, UL Recognized
• Origin: USA

Features & Benefits

1. Portable Diagnostics: Hand-held interface enables on-site configuration without permanent panel mounting—ideal for field service and commissioning.
2. MSLC/DSLC Compatibility: Native support for Woodward MSLC and DSLC synchronizer modules, ensuring seamless integration with existing generator control systems.
3. Multi-Protocol Communication: Native Modbus, EGD, and OPC support for seamless DCS/SCADA integration and remote monitoring.
4. Adaptive Tuning: Built-in algorithms dynamically compensate for load changes and transient conditions during generator paralleling operations.
5. Real-Time Monitoring: Displays speed, voltage, frequency, phase angle, and load sharing parameters in real time.
6. Configuration Storage: Save and recall multiple MSLC/DSLC configuration profiles for rapid deployment across multiple generator sets.
7. Triple-Redundant Processing: Optional TMR configuration available for critical safety applications.
8. Dual-Module Hot Standby: Ensures uninterrupted operation during maintenance or fault conditions.

Applications

• Generator paralleling and synchronization systems
• Gas turbine and steam turbine speed/load control
• Industrial engine governor systems
• Power plant load sharing and power factor control
• Marine propulsion control
• Cogeneration (CHP) plant synchronization
• Emerergency backup generator commissioning

Compatible Woodward Controllers

• MSLC (Master Synchronizer and Load Control) — 9907-120, 9907-122, 9907-123 series
• DSLC (Digital Synchronizer and Load Control) — 9907-018, 9907-023, 9907-028 series
• 505 / 505E Digital Governor
• 2301 / 2301A Analog Governor
• 9905 Control System

FAQ

Q: Is the 9907-205 a programmer or a controller?
A: The 9907-205 serves primarily as a hand-held programmer and diagnostic tool for MSLC/DSLC systems. It provides portable configuration and monitoring capabilities. Some system configurations may also utilize it as a digital speed controller in the ProTech SCP series. Verify your application requirement before ordering.

Q: Which MSLC/DSLC modules is the 9907-205 compatible with?
A: The 9907-205 is compatible with all MSLC and DSLC synchronizer modules, including 9907-120, 9907-122, 9907-123 (MSLC) and 9907-018, 9907-023, 9907-028 (DSLC) series.

Q: Can the 9907-205 operate in hazardous environments?
A: The controller is rated for -40°C to +85°C with ESD protection. For hazardous area certification (ATEX/IECEx), consult Woodward for specific options or enclosure requirements.

Q: What communication protocols does the 9907-205 support?
A: The 9907-205 supports Modbus RTU/TCP, Ethernet Global Data (EGD), CANbus, and OPC for integration with plant DCS and SCADA systems.

Q: How do I load configurations into the 9907-205?
A: Configurations are loaded via the RS-232 or Ethernet maintenance port using Woodward Toolkit software or MSLC/DSLC configuration utilities.

Q: Is the 9907-205 still in production?
A: The 9907-205 is an established Woodward product. Contact Woodward or an authorized distributor to confirm current production status and lead times.

Installation Guide

1. Verify power supply polarity: 24 V DC typical, 8–32 V DC range.
2. Connect magnetic pickup or speed sensor to designated input terminals for speed reference.
3. Wire 4–20 mA / 0–10 V process signals to analog I/O for load and power factor control.
4. Configure communication ports (RS-232/485 or Ethernet) for Modbus/EGD integration.
5. Load MSLC/DSLC application program via Woodward Toolkit or MSLC configuration software.
6. Perform loop tests and verify speed accuracy, synchronization timing, and load sharing before commissioning.
7. Calibrate phase angle and voltage matching parameters for generator paralleling.
