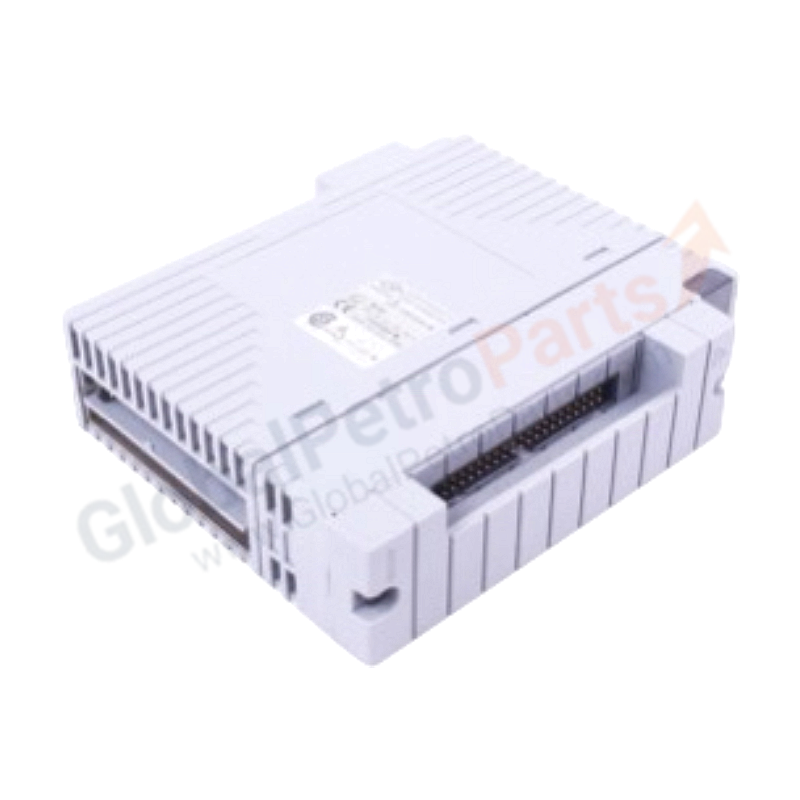

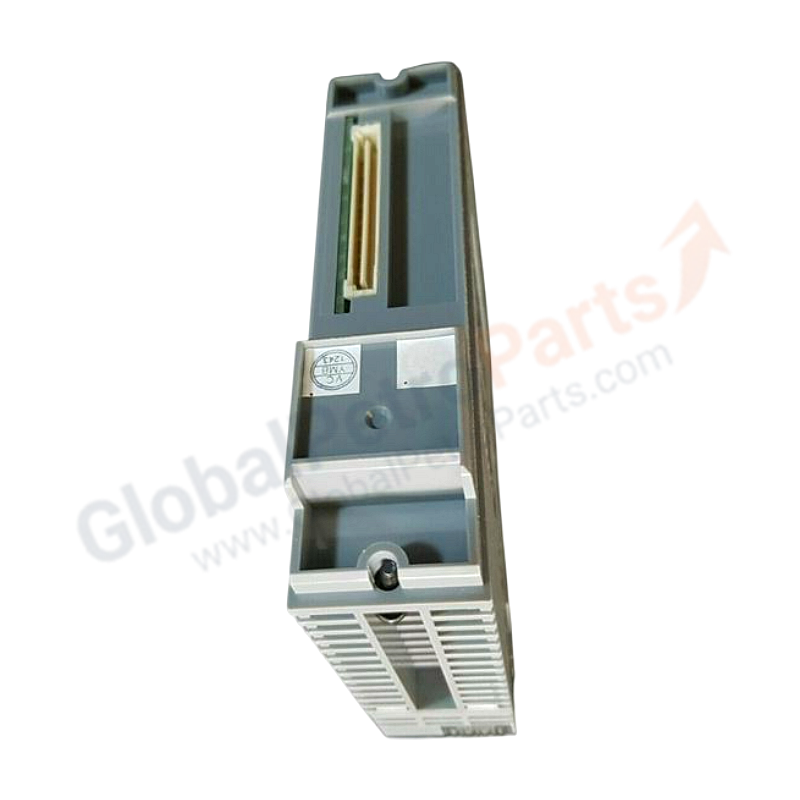

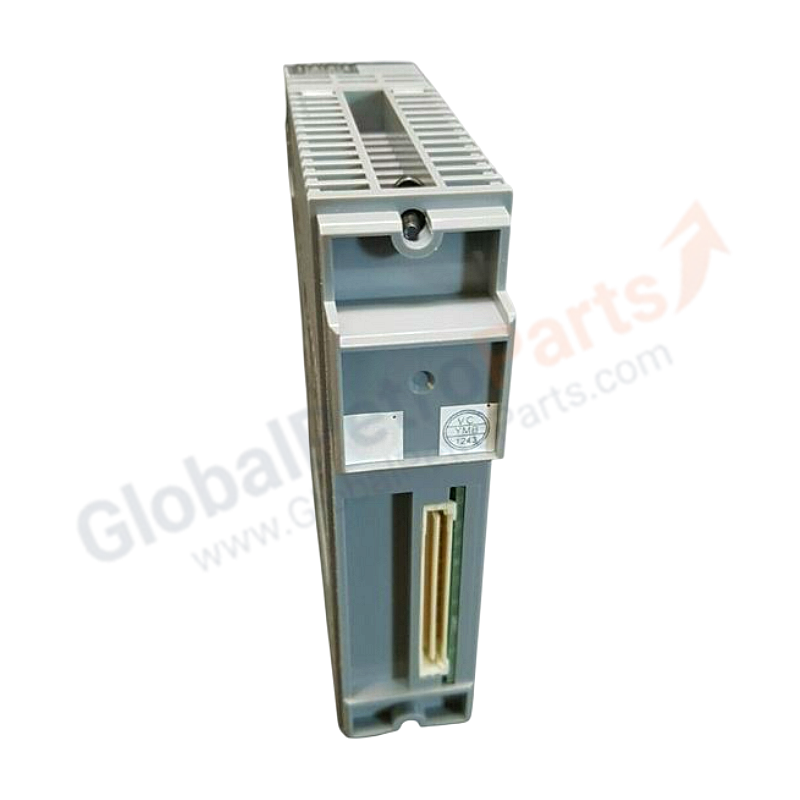

AAI135-S00 | Yokogawa | Analog Intput Module

Product Summary

The Yokogawa AAI135-S00 is a 4-20mA Analog Input Module for the Yokogawa CENTUM VP / CS 3000 distributed control system (DCS). It provides 8 isolated 4-20mA analog input channels with individual channel isolation, enabling high-precision process variable acquisition from field transmitters, sensors, and loop-powered devices. The -S00 configuration is the standard module without the KS cable interface adapter, requiring separate procurement of the ATK4A-00 adapter or direct MIL cable connection.

Core Specifications

• Model Number: AAI135-S00
• Type: 4-20mA Analog Input Module (8-Channel, Isolated Channels)
• Number of Channels: 8 isolated inputs
• Input Signal: 4–20 mA DC
• Allowable Input Current: 25 mA maximum
• Accuracy: ±16 µA
• Resolution: 16-bit
• Data Update Period: 10 ms
• Temperature Drift: ±16 µA/10°C
• Transmitter Power Supply: 15.0 V or higher (at 20 mA); 29.3 V or less (at 0 mA)
• Current Consumption: 360 mA (5 V DC); 450 mA (24 V DC)
• Dimensions (L × W × H): 107 × 130 × 33 mm
• Weight: 0.3 kg
• Manufacturer: Yokogawa Electric Corporation

Electrical & Functional Characteristics

• Signal Isolation: Individual channel isolation prevents ground loops and cross-interference between field devices; isolated between field and system
• Dual-Redundant Configuration: Can be used in dual-redundant I/O configuration for high-availability applications
• Transmitter Power Supply: Built-in 24V loop power supply for 2-wire transmitters
• Input Protection: Overcurrent protection up to 25 mA per channel
• Signal Conditioning: Built-in filtering and linearization for stable process variable readings
• Status Indicators: Module status LEDs for power, communication, and channel health
• Hot Swappable: Supports online replacement without system shutdown (when configured)

System Integration & Compatibility

• Primary Platform: Yokogawa CENTUM VP / CS 3000 DCS
• Mounting: FCS (Field Control Station) node unit or I/O expansion rack
• Communication: Vnet/IP or Vnet bus connection to FCS controller
• Configuration: Configured via CENTUM VP Engineering Station (EWS)
• External Connection: MIL connector cable (direct) or requires separate ATK4A-00 KS cable interface adapter (not included with -S00 suffix)
• Compatible Terminal Boards: AEA4D (for 2-wire/4-wire transmitter selectable per channel); AEA3D (all channels 2-wire transmitter power supply type)
• Related Modules:
  • AAI135-H00 — HART communication type, non-explosion proof, basic type
  • AAI135-H50 — HART communication type, non-explosion proof, basic type, with ATK4A-00
  • AAI135-S00 — Standard type, non-explosion proof, basic type (this part)
  • AAI135-S50 — Standard type, non-explosion proof, basic type, with ATK4A-00
  • AAI135-S53 — Standard type, non-explosion proof, with ISA G3 + temperature (-20 to 70°C) option, with ATK4A-00
  • AAI141 — 1-5V analog input module (16-channel, non-isolated)
  • AAI143 — 4-20mA analog input module (16-channel, isolated)

Environmental & Operational Limits

• Operating Temperature: 0°C to 50°C (32°F to 122°F) (basic type); -20°C to 70°C with option code 3
• Storage Temperature: -20°C to +70°C (-4°F to 158°F)
• Humidity: 10% to 90% RH, non-condensing
• Vibration: Compliant with IEC 60068-2-6
• Shock: Compliant with IEC 60068-2-27
• Approvals: CE, UL, CSA (depending on region and certification)

Industrial Applications

Widely deployed in oil & gas refining, petrochemical processing, power generation, water/wastewater treatment, pharmaceutical manufacturing, food & beverage, and pulp & paper industries where precise 4-20mA process variable measurement from pressure, flow, level, and temperature transmitters is critical.

Frequently Asked Questions

What is the AAI135-S00 used for?

It is an 8-channel 4-20mA analog input module for Yokogawa CENTUM VP / CS 3000 DCS systems, acquiring process variables from field transmitters and sensors with individual channel isolation.

What does the -S00 suffix mean?

-S = Standard type (non-HART); 5 = Non-explosion proof; 0 = Basic type. The -S00 does not include the ATK4A-00 KS cable interface adapter.

What is the difference between AAI135-S00 and AAI135-S50?

The AAI135-S00 is the basic module without the ATK4A-00 adapter. The AAI135-S50 includes the ATK4A-00 KS cable interface adapter for connection to terminal boards via KS cables.

What is the difference between AAI135-S00 and AAI135-H00?

The AAI135-S00 is the standard type without HART communication. The AAI135-H00 includes HART digital communication capability for smart transmitter configuration and diagnostics.

Can this module support dual-redundant configuration?

Yes — the AAI135 series supports dual-redundant I/O configuration when paired with dual-redundant terminal boards and appropriate system configuration.

What terminal board do I need?

Use AEA4D terminal board for selectable 2-wire/4-wire transmitter per channel, or AEA3D for all channels as 2-wire transmitter power supply type. If using KS cables, you must purchase the ATK4A-00 adapter separately.

What are the related part numbers?

• AAI135-H00 — HART type, non-explosion proof, basic type
• AAI135-H50 — HART type, non-explosion proof, basic type, with ATK4A-00
• AAI135-S00 — Standard type, non-explosion proof, basic type (this part)
• AAI135-S50 — Standard type, non-explosion proof, basic type, with ATK4A-00
• AAI135-S53 — Standard type, non-explosion proof, G3 + temp option, with ATK4A-00
• AAI141 — 1-5V analog input module (16-channel, non-isolated)
• AAI143 — 4-20mA analog input module (16-channel, isolated)
• ATK4A-00 — KS cable interface adapter (required for -S00 if using KS cables)
• AEA4D — Terminal board for isolated analog (selectable 2W/4W)
• AEA3D — Terminal board for isolated analog (2-wire only)
