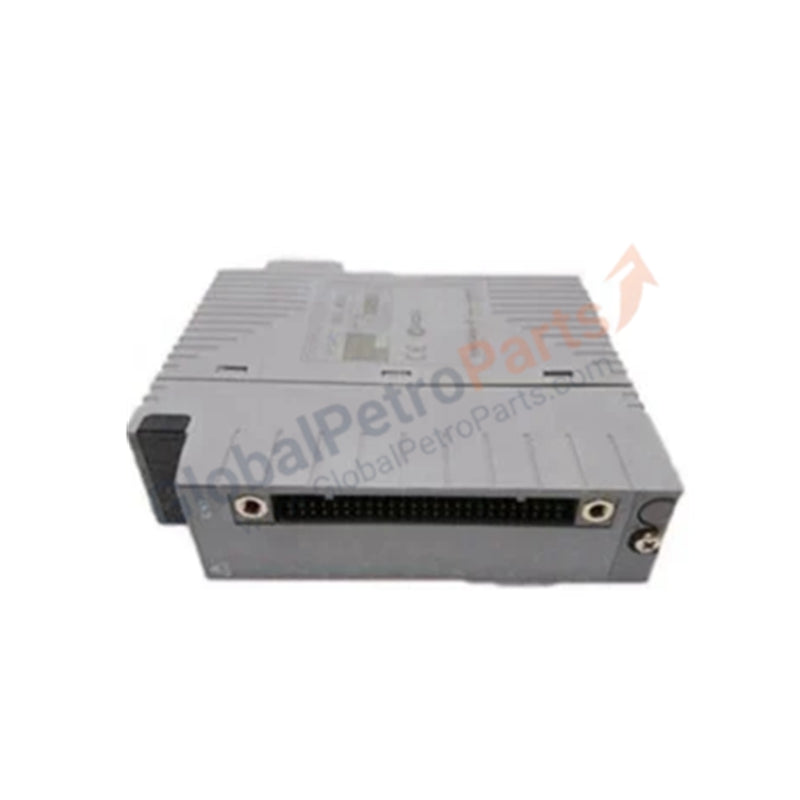

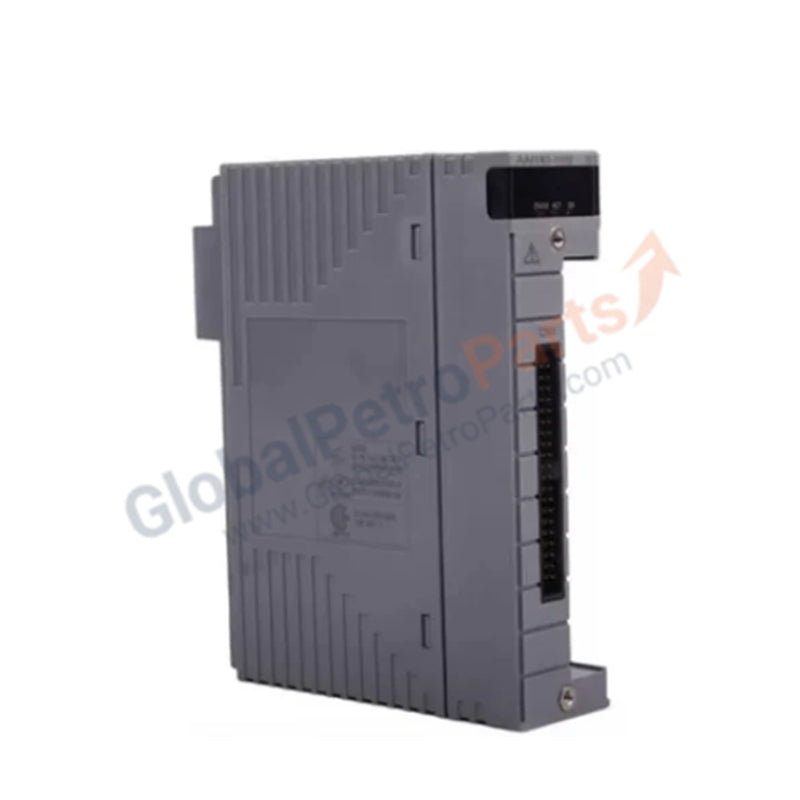

AAI143-H50/A4S00 | Yokogawa CENTUM VP 16-Channel HART Analog Input Module

Product Overview

The Yokogawa AAI143-H50/A4S00 functions as a high-density, isolated analog input interface for the CENTUM VP Distributed Control System (DCS). This module captures 4 to 20 mA signals from 16 independent channels, enabling precise process monitoring for mission-critical loops. By integrating the HART protocol, it facilitates bidirectional digital communication, allowing the DCS to extract device diagnostics and secondary variables from smart field instruments. This configuration includes the /A4S00 option, featuring a factory-integrated Pressure Clamp Terminal Block (Model ATA4S-00). We supply this unit as 100% Brand New and original.

Part Number Breakdown

The AAI143-H50/A4S00 utilizes a specific suffix and option logic to define its communication and termination capabilities:

Technical Specifications

The AAI143-H50/A4S00 delivers high-performance data acquisition and robust signal integrity:

• Number of Channels: 16, fully isolated

• Input Signal: 4 to 20 mA DC

• Digital Communication: HART Protocol (Superimposed on analog signal)

• Termination Type: Pressure Clamp (Screwless) via ATA4S-00

• Data Update Period: 10 ms

• Withstanding Voltage: 1500 V AC between input and system

• Input Resistance: 250 $\Omega$ (Typical)

• Condition: 100% Brand New and Original

Engineering Advantages

The AAI143-H50/A4S00 addresses specific industrial deployment challenges through its hybrid termination and communication design:

• Efficient Screwless Wiring: The /A4S00 pressure clamp terminal block eliminates the need for manual screw tightening. Technicians insert wires directly to establish a gas-tight, vibration-resistant connection. This reduces installation labor by 50% and prevents signal loss in high-vibration environments.

• Intelligent Device Management: Integrated HART support removes the requirement for external HART multiplexers. The DCS captures diagnostic alerts—such as sensor drift or transmitter failure—directly from the field, facilitating a transition from reactive to predictive maintenance.

• Superior Signal Isolation: Full galvanic isolation between the 16 channels prevents ground loop currents from corrupting process data. This architecture ensures that an electrical fault on a single transmitter remains contained, protecting the central DCS backplane.

• Seamless Redundancy: The "Suffix 5" designation ensures the module supports dual-redundant configurations. In the event of a hardware failure, the system executes an instantaneous switch-over to the standby module, maintaining continuous process visibility without signal bumps.

FAQs

What is the benefit of the /A4S00 Pressure Clamp over standard terminals?

The /A4S00 terminal block maintains constant spring tension on the wire. Unlike traditional screw terminals that can loosen due to thermal cycling or mechanical vibration, the pressure clamp ensures a permanent, maintenance-free electrical contact.

Can I use the AAI143-H50/A4S00 with non-HART transmitters?

Yes. The module functions as a high-precision standard 4-20 mA analog input module for conventional devices. The HART communication features remain available for use whenever you upgrade to smart field instrumentation.

Does this module supply power to 2-wire transmitters?

Yes. When integrated into the CENTUM VP I/O nest, the module distributes the necessary loop power to 2-wire transmitters while simultaneously capturing the 4-20 mA signal.

Is any special software required to use the HART features?

While the hardware natively supports HART signals, you must enable HART communication within the Yokogawa System View configuration to pass digital diagnostics to your Asset Management System (AMS).
