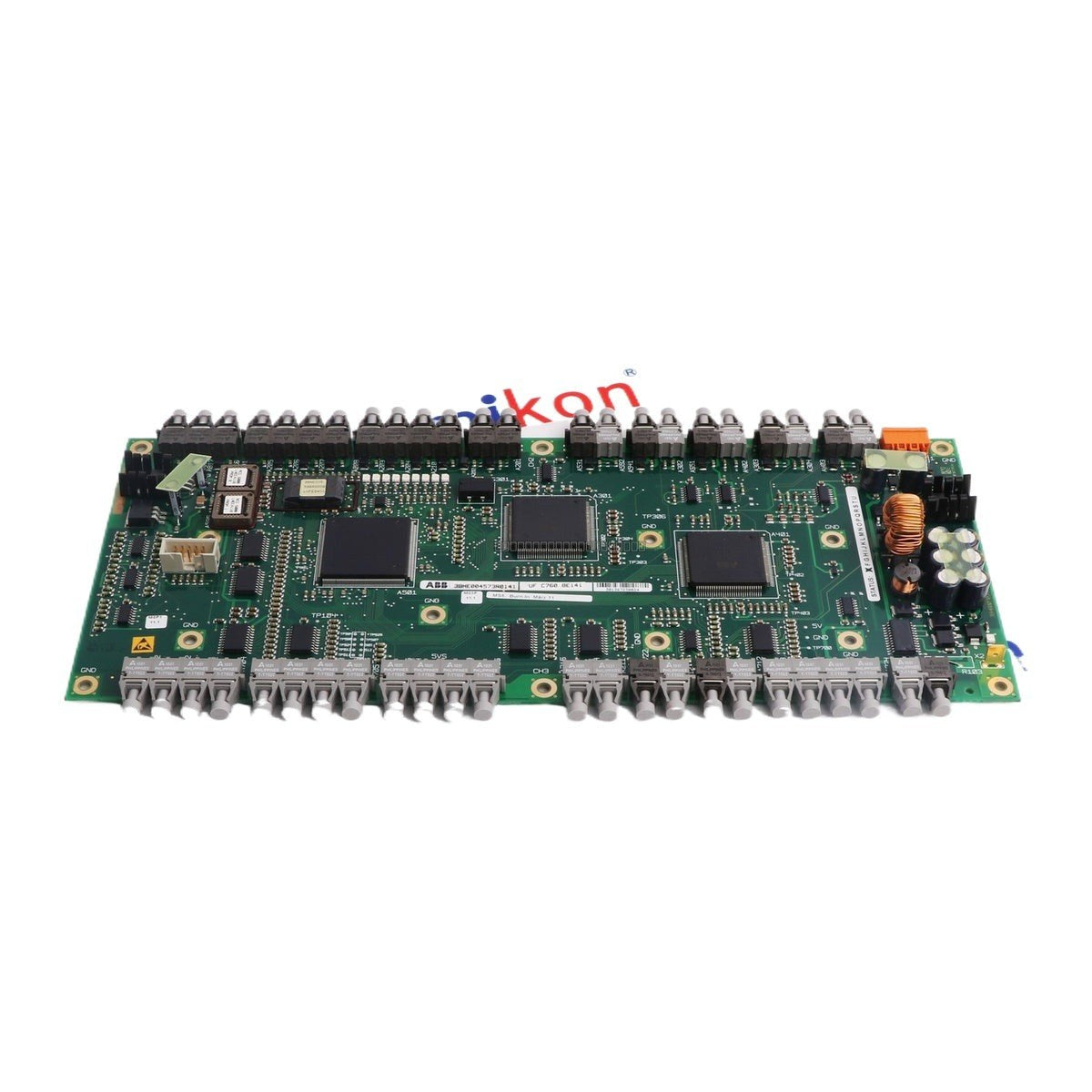

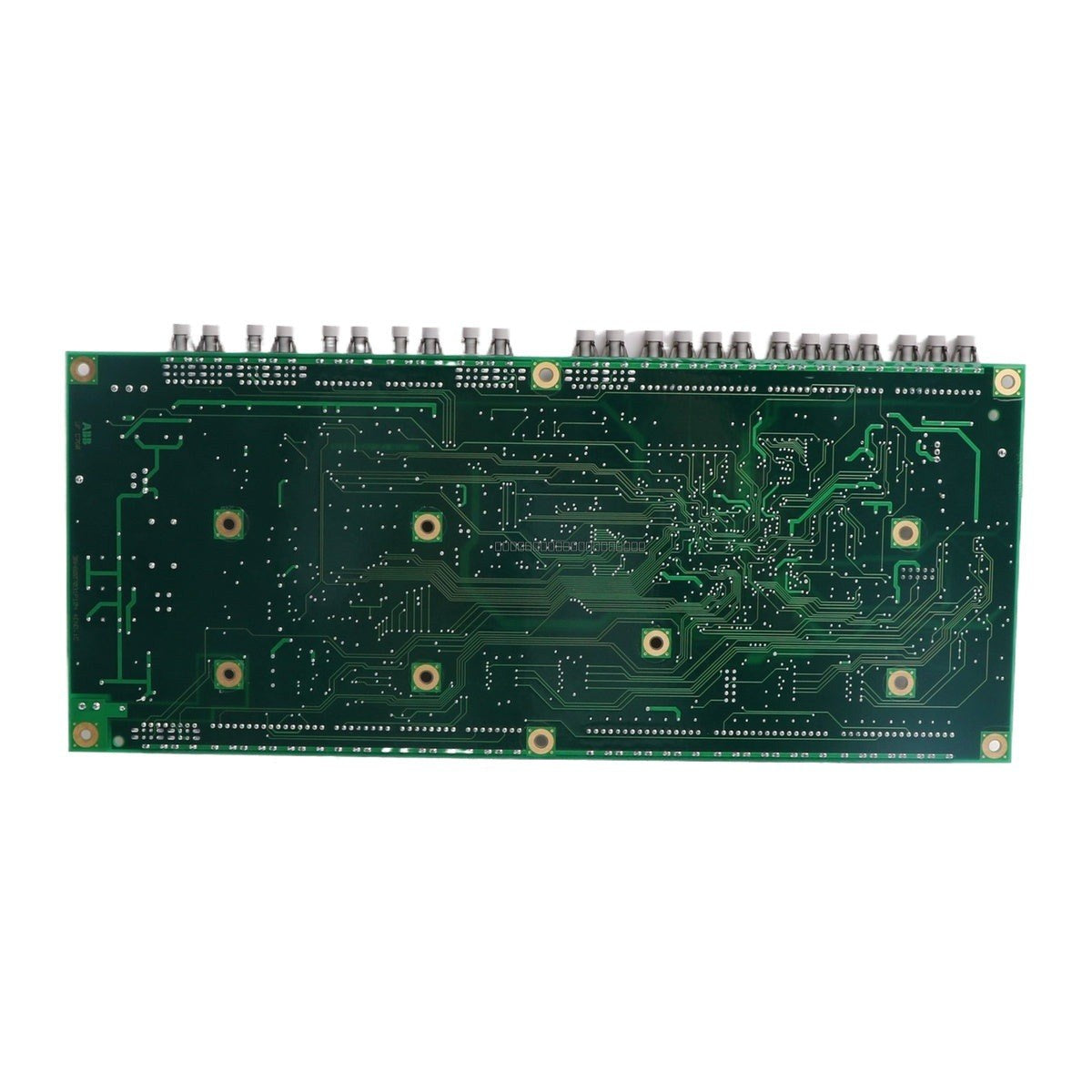

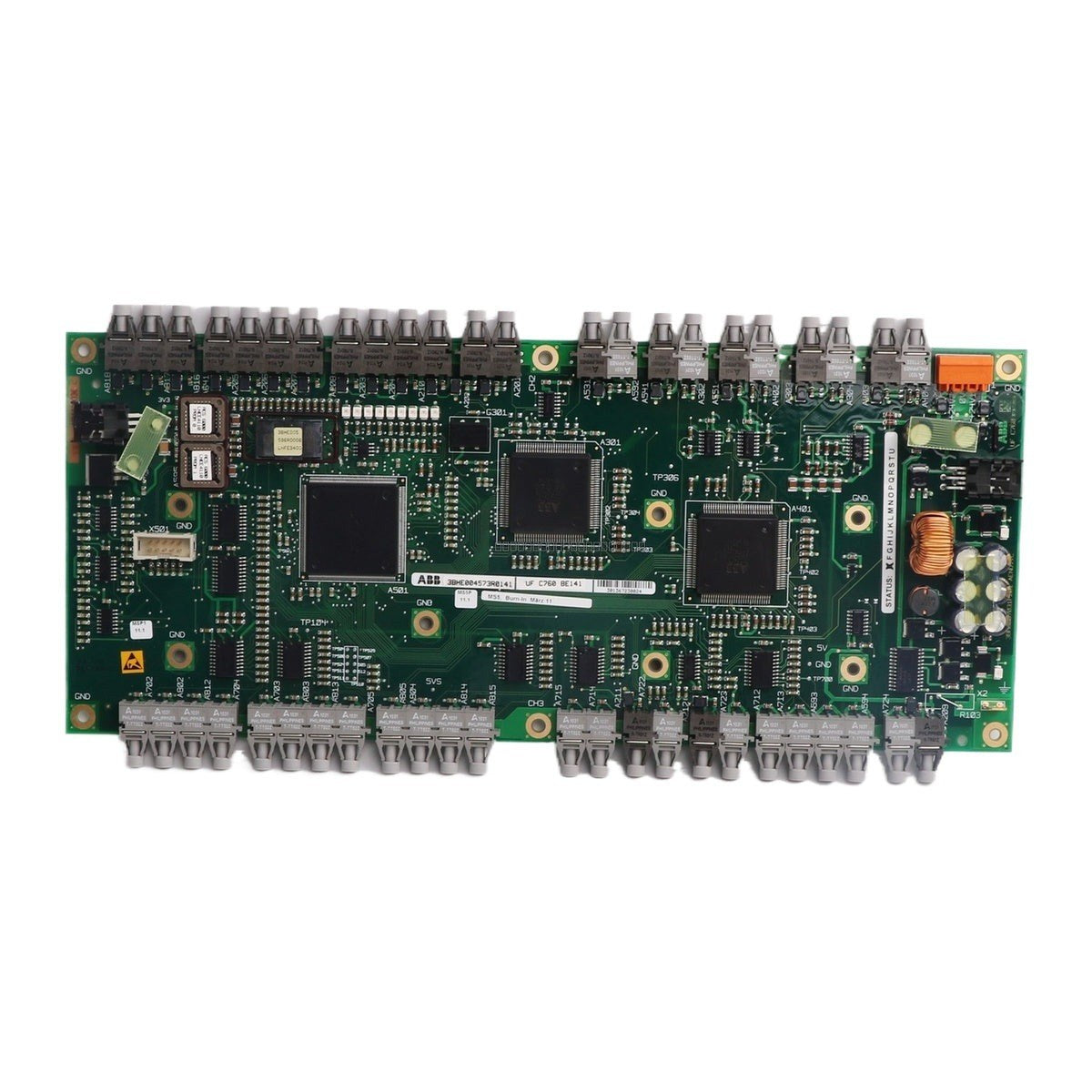

ABB 3BHE004573R0141 UFC760BE141 Interface Board

Description

The ABB 3BHE004573R0141 (UFC760BE141) is a specialized interface board designed for high-performance industrial control applications. This module serves as a critical link within the ABB control architecture, providing robust signal processing and communication capabilities. Engineered for reliability in demanding environments, it ensures stable data transmission and system integration for complex automation tasks.

Features

• Designed for seamless integration with ABB control systems.
• High-voltage isolation up to 50 kV DC board-to-earth.
• Excellent common-mode dv/dt immunity exceeding 50 kV/µs.
• Integrated surge withstand capability (2 kV CM / 1 kV DM).
• Wide operating temperature range suitable for harsh industrial conditions.

Technical Specifications

Installation Guidelines

• Ensure the system power is completely disconnected before installing or removing the interface board.
• Handle the module using ESD-safe procedures to prevent damage to sensitive electronic components.
• Verify that the mounting environment is free from excessive vibration and corrosive elements.
• Ensure proper grounding of the chassis to maintain the specified isolation and surge protection levels.
• Route signal cables away from high-power lines or sources of electromagnetic interference (EMI) to maintain signal integrity.

FAQ

What is the primary function of the UFC760BE141 interface board?

The UFC760BE141 acts as an interface module within ABB control systems, facilitating reliable signal communication and providing high-voltage isolation between control circuits and field equipment.

What are the environmental requirements for this module?

This board is designed for industrial use with an operating temperature range of -40 to +70 degC and can withstand high humidity levels when installed within a sealed enclosure.
